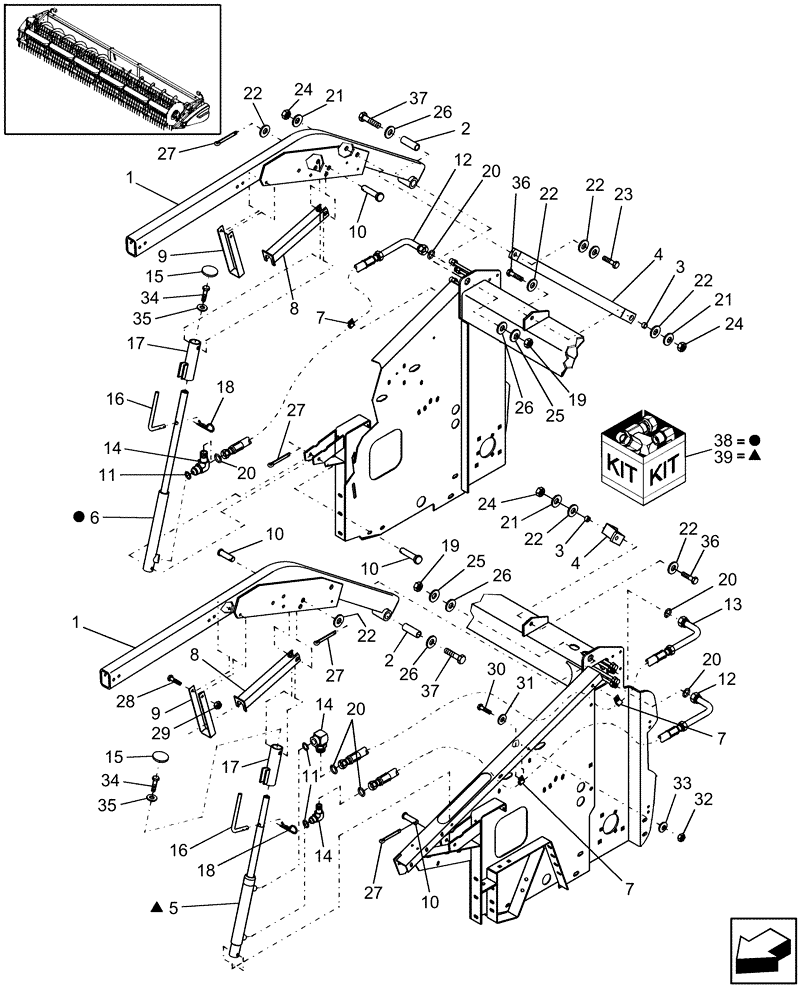

Запчасти Case IH 2020 (20.07.04[2]) - HYDRAULICS, ARM LIFT, 20 & 25 FT PIN CBJ020205 AND AFTER {30 FT PIN CBJ020205 TO CBJ201301} (35) - HYDRAULIC SYSTEMS

1

87050132

ARM

With Warning Decal

2шт.

2

87036565

SPACER

2шт.

3

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

2шт.

4

641714

BRACKET

2шт.

5

87045527

HYDRAULIC CYLINDER

1-1/2" x 9-3/8"

1шт.

128723A3R

REMAN-HYD CYLINDER

2010, 2020, Both (2/03-), Reman for New PN 87045527

1шт.

128723A3C

CORE-HYD CYLINDER

Return Number

1шт.

6

87045528

HYDRAULIC CYLINDER

1" x 9-3/8"

1шт.

128726A2R

REMAN-HYD CYLINDER

2010, 2020, Both 20 & 25 FT PIN CBJ020205 AND AFTER, 30 FT PIN CBJ020205 TO CBJ021301 (2/03-), Reman for New PN 87045528

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

7

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1/2" x 3/8" Bolt

3шт.

8

87450187

SUPPORT

Cylinder Lock, See Figure 20.07.04[3] for alternate lock with pin.

2шт.

9

87045351

SUPPORT

Hanger

2шт.

10

86979987

HEADED PIN,1/2" x 3", G5

4шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

NBR

2шт.

12

87046054

HOSE

1/4", 11/16"-16 Str x 11/16"-16, 90°, O-Ring

2шт.

13

87046055

HOSE

1/4", 11/16"-16 Str x 11/16"-16, 90°, O-Ring

1шт.

14

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

90°, 11/16"-16 M x 9/16"-18 MUNF, O-Ring

3шт.

15

87045538

PLUG

Button, Plastic

2шт.

16

87045536

ROD

Lock

2шт.

17

87045535

TUBE

2шт.

18

87045537

HAIR PIN COTTER

2-11/16", 9 Ga., Hairpin

2шт.

19

280954

NUT,3/4"-10, G5

2шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

22

495-21056

WASHER,1/2"

10шт.

23

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

24

9706685

NUT,M12 x 1.75, Cl 8

4шт.

25

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

26

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

27

87397

COTTER PIN,3/16" OD x 1" L

4шт.

28

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

29

126712A1

TUBE,3" OD, 1962 mm Length

CL 8, M8 x 1.25

2шт.

30

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

31

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

32

9706755

NUT,M6, Cl 8

3шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

34

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

35

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

2шт.

36

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

37

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

38

87047332

PACKAGE

Repair, Ref 6

1шт.

39

87047337

SEAL KIT

Repair, Ref 5

1шт.
