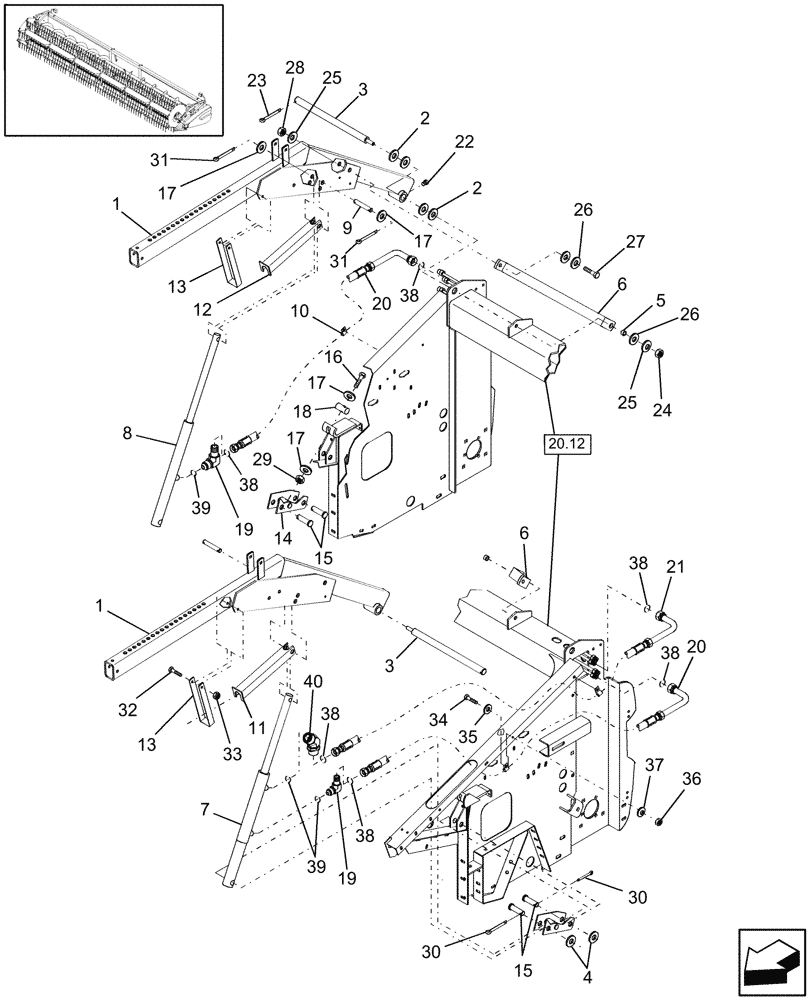

Запчасти Case IH 2020 (20.07.04[1]) - HYDRAULICS, ARM LIFT, BPIN CBJ020205 [INCLUDES ALL HAJ PINS] (35) - HYDRAULIC SYSTEMS

1

86603153

ARM

LH

2шт.

2

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

(1-1/64" ID x 1-9/16" OD x 0.036")

8±шт.

3

168126

SHAFT

RH

2шт.

4

86622501

WASHER

7/8" ID x 1-1/2" OD, 1/16" Thk

4шт.

5

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

2шт.

6

641714

BRACKET

2шт.

7

86518812

HYDRAULIC CYLINDER,Double Acting, 28.4mm Rod, 200.2mm Stroke

Master

1шт.

8

86518813

HYDRAULIC CYLINDER,25.4mm Rod, 200.2mm Stroke

Slave

1шт.

9

787723

PIN

5/8" x 3-1/2"

2шт.

10

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1/2" x 3/8" Bolt

3шт.

11

86603149

LOCKING TAB

LH

1шт.

12

86603148

LOCKING TAB

RH

1шт.

13

86603152

SUPPORT

2шт.

14

770838

ARM

Pivot

2шт.

15

606898

PIN,18.95mm OD x 68.26mm L

4шт.

16

9827768

BOLT,Hex, 5/8" - 11 x 7", Gr 8

Cap, HH, G8, 5/8"-11 x 7"

2шт.

17

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

18

606899

PIN

2шт.

19

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

90°, 3/8"

2шт.

20

86599482

HOSE

1/4"

2шт.

21

86599483

HOSE

1/4"

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

2шт.

23

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

24

280431

NUT,1/2"-13, G5

2шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6±шт.

27

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

28

9706685

NUT,M12 x 1.75, Cl 8

2шт.

29

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

30

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

31

87397

COTTER PIN,3/16" OD x 1" L

4шт.

32

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

33

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

2шт.

34

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

35

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

36

9706755

NUT,M6, Cl 8

3шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

40

9846661

ELBOW

45°, 3/8"

1шт.
