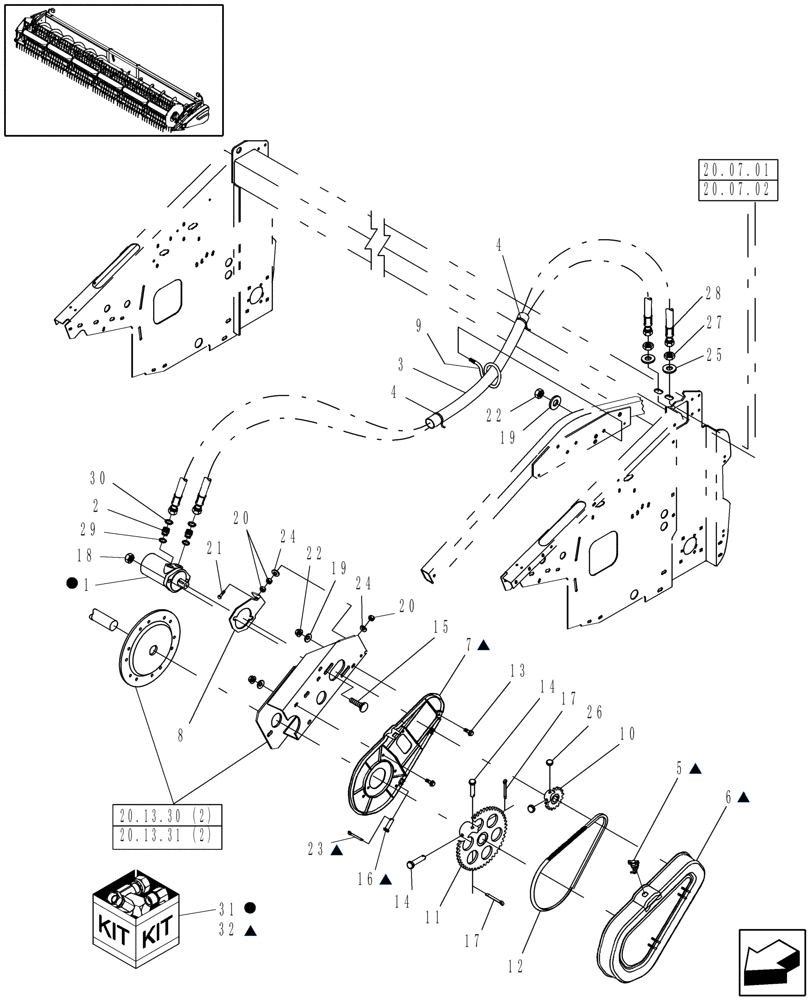

Запчасти Case IH 2020 (20.07.03[2]) - HYDRAULICS, REEL DRIVE, PIN CBJ020205 AND AFTER EXCEPT RICE HEADER (35) - HYDRAULIC SYSTEMS

1

87036557

MOTOR, HYDRAULIC,195CC

1шт.

87036557R

REMAN-HYD MOTOR

2010, 2020 Both PIN CBJ020205 AND AFTER EXCEPT RICE HEADER (2/03-)

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1"-14 M x 7/8"-14 M, O-Ring

2шт.

3

9612137

HOSE PROTECTION

1шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

5

87053562

LATCH

1шт.

6

87036523

SHIELD

1шт.

7

87036524

SUPPORT

1шт.

8

87045366

ANGLE

Motor Support

1шт.

9

84062500

HOLDER

1шт.

10

87450165

DRIVE SPROCKET

17T

1шт.

11

87036543

SPROCKET

5T

1шт.

12

87053561

CHAIN,70 Links x 15.88mm = 1111.25mm

#50, 5/8" P, 1- Conn., 2- Offset, 70 Links Total

1шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

9шт.

14

87036559

CLEVIS PIN,7/16" x 2.781"

7/16" x 2-25/32"

2шт.

15

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

16

86624075

HEADED PIN,6.35mm OD x 44.45mm L

1/4" x 1-3/4", Type 1, Hard

2шт.

17

280251

COTTER PIN,3/32" OD x 1" OAL

2шт.

18

100038

NUT,M12 x 1.75, Cl 8

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

20

100016

NUT,M10 x 1.5, Cl 8

3шт.

21

NH120116

BOLT,Hex, M10 x 80, 8.8, Full Thd

1шт.

22

9706690

NUT,M8 x 1.25, Cl 8

1шт.

23

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

26

87304415

SET SCREW,3/8" - 24 x 3/8"

3/8"-24 x 3/8", CP

2шт.

27

86609743

BHD LOCK NUT

Jam, 1"-14

2шт.

28

87046053

HOSE

Pickup Reel, 20.13.30[2]

2шт.

28

87047039

HOSE

Bat Reel, 20.13.31[2]

2шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

30

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

31

87036584

SEAL KIT

Washers & O-rings

1шт.

32

258978A1

SHIELD

Includes Ref 5, 6, 7, 16 & 23

1шт.
