Запчасти Case IH 2020 (20.07.03[1]) - HYDRAULICS, REEL DRIVE, BPIN CBJ020205 & RICE [INCLUDES ALL HAJ PINS] (35) - HYDRAULIC SYSTEMS

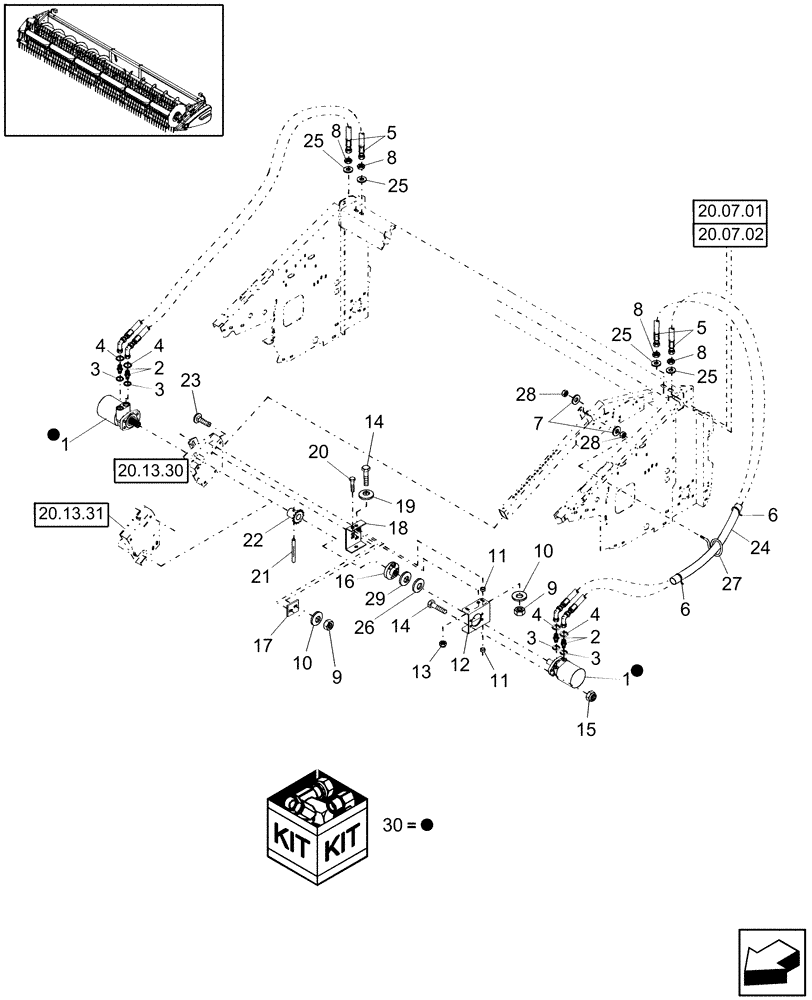

Схема запчастей Case IH 2020 - (20.07.03[1]) - HYDRAULICS, REEL DRIVE, BPIN CBJ020205 & RICE [INCLUDES ALL HAJ PINS] (35) - HYDRAULIC SYSTEMS
10
27
25
21
20.13.31
29
28
8
4
25
12
5
14
15
1
1
3
11
10
8
2
3
4
17
19
28
18
30
22
11
7
24
6
20.13.30
4
8
3
20.07.02
6
25
20
25
14
5
23
3
9
9
26
20.07.01
4
2
13
16
8

Артикул

Название

Примечание

Количество

1

86561661

HYDRAULIC MOTOR

1шт.

2

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1" x 7/8"

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

4

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

5

86599484

HOSE

HYD, 5/8" ID

2шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

8

86609743

BHD LOCK NUT

Jam, Bulkhead, 1"-14

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

3шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

11

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

2шт.

12

86641315

BRACKET

1шт.

13

20356

NUT,1/4"-20, GB

1шт.

14

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

15

100038

NUT,M12 x 1.75, Cl 8

4шт.

16

86603103

COUPLING

1шт.

17

86613627

PLATE

1шт.

18

86603098

BRACKET

1шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

20

46520

BOLT AND NUT,Hex, 1/4" - 20 x 1 1/2"

HH, 1/4"-20 x 1-1/2", W/ Nut

1шт.

21

86597005

GROOVED PIN,1/2" x 2", Type E

1шт.

22

86603099

COUPLING

1шт.

23

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

24

9612137

HOSE PROTECTION

Sleeve Nylabraid

1шт.

25

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

26

86632064

SPACER

1шт.

27

719665

RETAINER

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

146258

WASHER,1 9/32" x 1 3/4" x 16 Ga.

1ARшт.

30

86566360

SEAL KIT

1шт.

Выбрано товаров: 30
