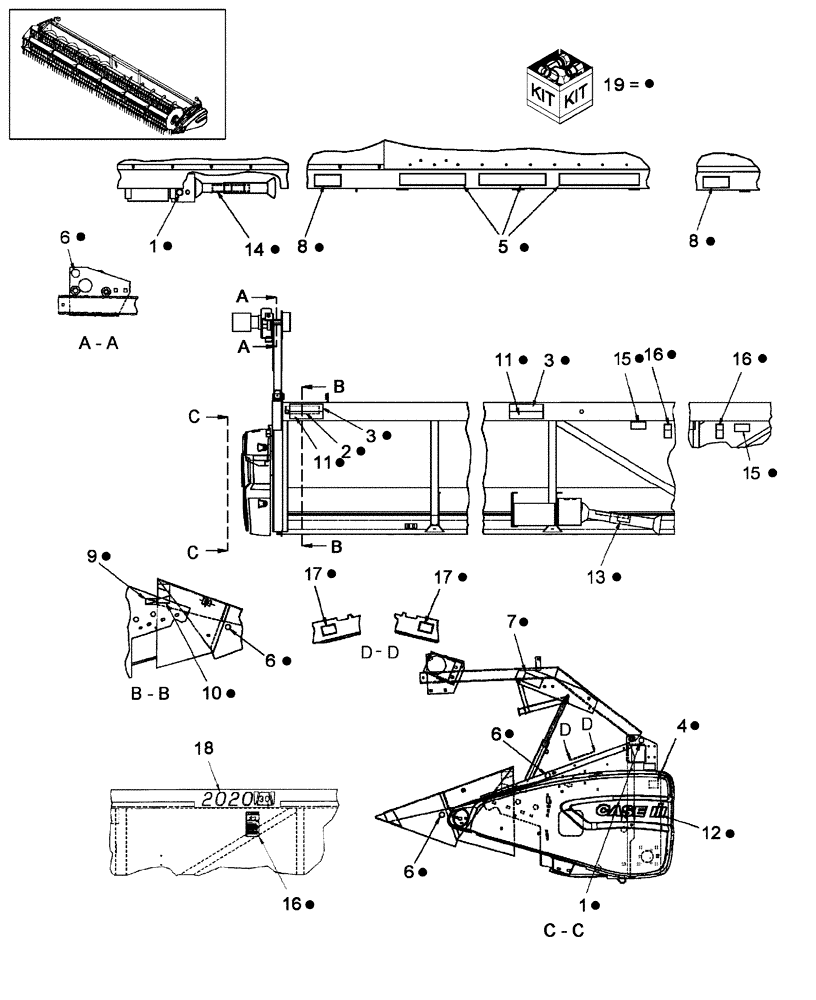

Запчасти Case IH 2020 (20.08.10) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84334829

DECAL

Grease, 50 Hours

4шт.

Not required at base of lift arm for PIN CBJ020205 and later.

1шт.

2

86547782

REFLECTOR,YELLOW

Tape Yellow Retroreflective

2шт.

3

86547781

REFLECTOR,RED

Tape red Retroreflective, [Qty 2, 20 FT Header, LH]

4шт.

4

86626959

WARNING DECAL

English

2шт.

4

86624741

WARNING DECAL

French

2шт.

4

86624653

WARNING DECAL

Spanish

2шт.

5

87022092

DECAL

Non-Slip Tape

3шт.

6

84989464

DECAL

Grease, 10 Hours, 2020, View C-C Only, English

6шт.

6

84989464

DECAL

Grease, 10 Hours, 2020, View C-C Only, Fr, Sp, Russ

6шт.

7

86611824

DECAL

Warning, Hydraulic Cylinder Failure, English

2шт.

7

86634140

DECAL

Warning, Hydraulic Cylinder Failure, French

2шт.

7

87020347

DECAL

Warning, Spanish

2шт.

7

84004735

CAUTION DECAL

Warning, Russian

2шт.

8

86611825

WARNING DECAL

Warning Slippery Surface, English

2шт.

8

86614084

WARNING DECAL

Slippery Surface, French

2шт.

8

86624655

WARNING DECAL

Warning, Slippery Surface, Spanish

2шт.

8

87026533

DECAL

Warning, Slippery Surface, Russian

2шт.

9

783918

DECAL

Header Height, 2020

2шт.

10

783919

DECAL

Header Height, 2020, English

1шт.

10

86614084

WARNING DECAL

Header Height, 2020, French

1шт.

10

86624655

WARNING DECAL

Header Height, 2020, Spanish

1шт.

11

86547783

REFLECTOR,Tape, Red Orange

Tape Red- Orange Fluorescent, 20' Header Apply LH Only

4шт.

12

87013653

DECAL

CaseIH, RH, Silver & Black, 817mm[32.2"] Long

1шт.

BPIN CBJ021301

1шт.

12

87553576

DECAL

CaseIH, RH, 201020 & 202025, Silver, Black, White & Red, 593.7mm[23.4"] Long

1шт.

PIN CBJ021301 and after

1шт.

12

87553575

DECAL

CaseIH, RH, 201025 & 30, 202020, 30 & 35, Silver, Black, White & Red, 824mm[32.5"] Long

1шт.

PIN CBJ021301 and after

1шт.

12

84441291

DECAL

CaseIH, LH, Silver & Black, 815mm[32.1"] Long

1шт.

BPIN CBJ021301

1шт.

12

87553574

DECAL

CaseIH, LH, Silver, Black, White & Red, 815mm[32.1"] Long

1шт.

PIN CBJ021301 and after

1шт.

13

849471

DANGER DECAL

Rotating Driveline, English

2шт.

13

849482

DANGER DECAL

Rotating Drive Line, French

2шт.

13

9801260

DANGER DECAL

Danger, Rotating Drive Line, Spanish

2шт.

13

86520062

DECAL

Danger, Rotating Drive Line, Russian

2шт.

14

849472

DANGER DECAL

Shield Missing, English

2шт.

14

849483

DANGER DECAL

Shield Missing, French

2шт.

14

9801256

DANGER DECAL

Danger, Shield Missing, Spanish

2шт.

15

9826789

DANGER DECAL,180mm x 90mm H

Danger English

2шт.

15

9827448

DANGER DECAL

Danger, French

2шт.

15

87013474

DECAL

Danger, Spanish

2шт.

15

86999254

DANGER DECAL

Danger, Russian

2шт.

16

86622719

DECAL

Danger, English

2шт.

16

86624740

DECAL

Danger, French

4шт.

16

86624656

DECAL

Danger, Spanish

4шт.

16

87027712

DECAL

Danger, Russian

4шт.

17

86626958

WARNING DECAL

English

2шт.

17

86626961

WARNING DECAL

French

2шт.

17

86626962

WARNING DECAL

Spanish

2шт.

17

84011345

DECAL

Warning, Russian

2шт.

18

87013643

DECAL

2010 20

1шт.

18

87013645

DECAL

2010 25

1шт.

18

87013647

DECAL

2010 30

1шт.

18

87013648

DECAL

2020 20

1шт.

18

87013649

DECAL

2020 25

1шт.

18

87013650

DECAL

2020 30

1шт.

18

87059503

DECAL

2020 35

1шт.

19

87020373

DECAL

Ref 1 to 17, English

1шт.

19

87022610

DECAL

Ref 1 to 17, French

1шт.

19

87022611

DECAL

Ref 1 to 17, Spanish

1шт.

19

87022612

DECAL

Ref 1 to 17, Russian

1шт.
