(20.08.02[1]) - SHIELD ASSEMBLY, DOUBLE KNIFE DRIVE, PIN CBJ021301 AND AFTER [KNIFE STORAGE COVERS]

Запчасти Case IH 2020 (20.08.02[1]) - SHIELD ASSEMBLY, DOUBLE KNIFE DRIVE, PIN CBJ021301 AND AFTER [KNIFE STORAGE COVERS] (90) - PLATFORM, CAB, BODYWORK AND DECALS

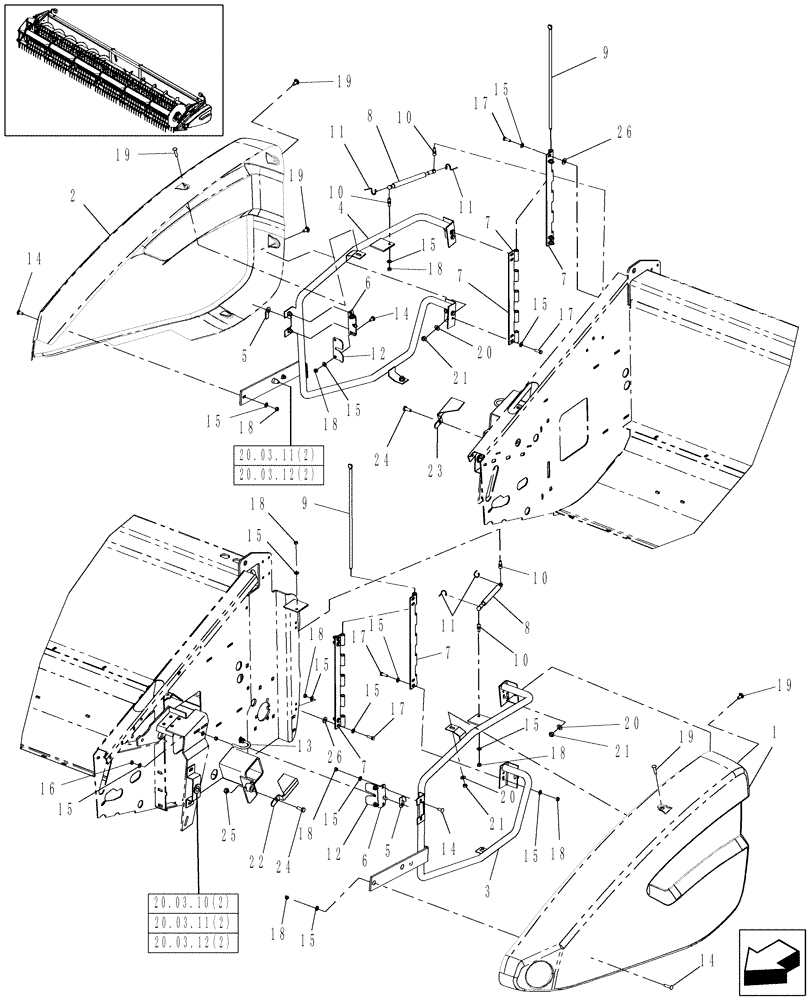

Схема запчастей Case IH 2020 - (20.08.02[1]) - SHIELD ASSEMBLY, DOUBLE KNIFE DRIVE, PIN CBJ021301 AND AFTER [KNIFE STORAGE COVERS] (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
14
10
7
18
7
15
17
5
15
17
18
15
24
18
19
14
8
11
15
6
15
3
17
25
15
10
18
19
10
18
6
20.03.11(2)
21
4
26
26
9
15
22
18
17
15
15
15
24
15
7
18
12
11
14
7
18
20
20.03.12(2)
20
23
11
12
5
19
19
15
21
15
8
18
7
10
19
14
13
20.03.12(2)
15
20.03.10(2)
20.03.11(2)
21
1
20
9
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87058775

SPLASH SHIELD

LH, W/Warning Decal, Ref 17, 20.08.10

1шт.

2

87058777

SPLASH SHIELD

RH, W/Warning Decal, Ref 17, 20.08.10

1шт.

3

86602953

TUBE

LH

1шт.

4

86602955

TUBE

RH

1шт.

5

86571951

LEVER

2шт.

6

84015292

LATCH

2шт.

7

86640767

HINGE

HALF

4шт.

8

9706806

DAMPER

GAS SPRING-DOOR

2шт.

9

87577247

PIN ASSY.

SHAFT

2шт.

10

9706807

BALL STUD,M8 x 1.25

BALL PIN M8 x 13mm

4шт.

11

9849996

CLIP

SAFETY

4шт.

12

86705570

GUIDE

GUIDE

2шт.

13

6652

U-BOLT

5/16" x 1-3/4" x 2-3/4"

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

56шт.

16

9635082

NUT,5/16" - 18, Gr 5

8шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

16шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Speed Up Kit, See Figure Note

8шт.

18

9706690

NUT,M8 x 1.25, Cl 8

32шт.

19

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

8шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

21

100016

NUT,M10 x 1.5, Cl 8

8шт.

22

87059505

SHIELD

LH, Spare Knife Storage

1шт.

23

87059506

SHIELD

RH, Spare Knife Storage

1шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

86505347

2шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

26

86620023

SPACER

1" OD x 13/32" ID x 1/4" Thk, Speed Up Kit, See Figure Note

8шт.
