Запчасти Case IH 2020 (20.07.02) - HYDRAULIC SYSTEM, 20 FT, 25 FT, RICE (35) - HYDRAULIC SYSTEMS

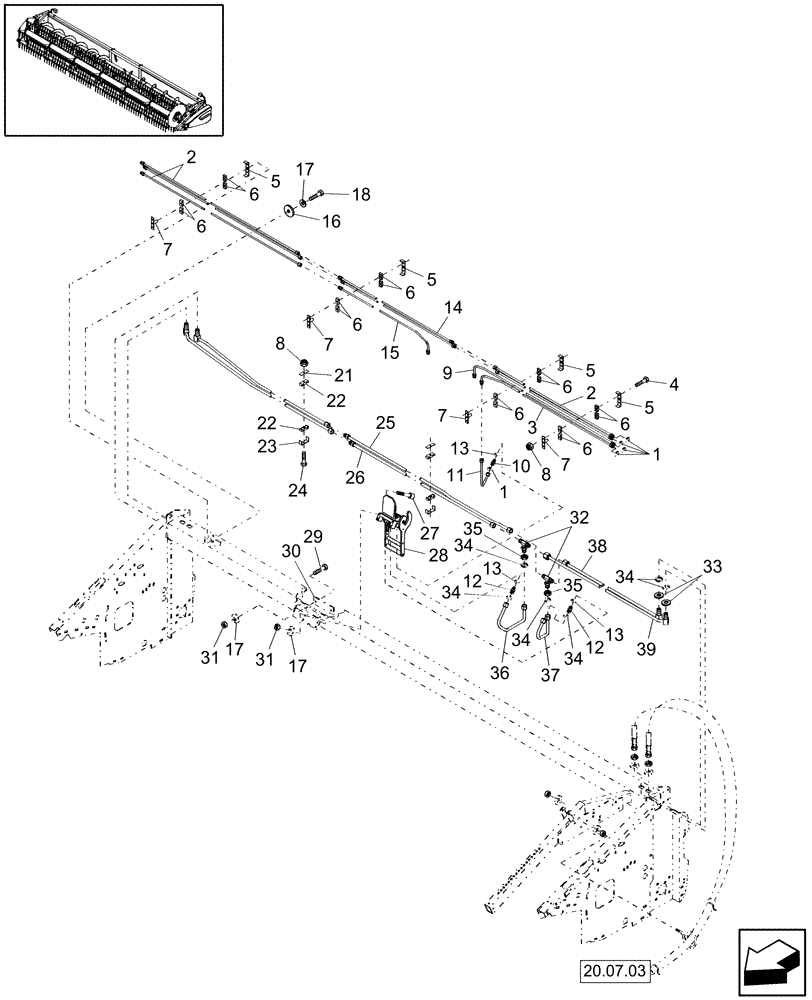

Схема запчастей Case IH 2020 - (20.07.02) - HYDRAULIC SYSTEM, 20 FT, 25 FT, RICE (35) - HYDRAULIC SYSTEMS
17
13
28
25
5
12
8
9
31
36
2
33
31
24
13
32
14
18
27
11
12
6
17
7
4
29
39
38
6
5
7
1
35
10
5
13
6
2
34
15
34
6
7
6
1
34
5
7
21
23
35
20.07.03
30
37
6
22
17
34
34
3
22
16
6
26
6
8

Артикул

Название

Примечание

Количество

1

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

2

86604202

HYD TUBE

3/8", 20 Ft Header

5шт.

2

NS

NOT SERVICED

3/8", 25 Ft Header

5шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

3

86604203

HYD TUBE,9.53 mm OD x 1618.3, 38.6 mm L

3/8", 20 Ft Header

1шт.

3

NS

NOT SERVICED

3/8", 25 Ft Header

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

4

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

8шт.

5

86602890

CHANNEL

4шт.

6

430357

CLAMP

16шт.

7

86602874

PLATE

4шт.

8

353308

NUT,M6 x 1.0, Cl 8

10шт.

9

86604206

HYD TUBE,9.53 mm OD x 1720.8, 91.9 mm L

3/8", 20 Ft Header

1шт.

9

NS

NOT SERVICED

3/8", 25 Ft Header

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

10

86623107

ADAPTER,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-11 x 11/16"-16

1шт.

11

86623117

HYD TUBE,9.53 mm OD x 238.6, 92.2 mm L

11/16"-16

1шт.

12

86603051

HYD CONNECTOR,1" - 14 ORFS x 3/4" - 16 ORB

3/4"-16 x 1"-14

2шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

-06

1шт.

14

NS

NOT SERVICED

3/8"

2шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

15

NS

NOT SERVICED

3/8"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

16

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32"ID x 1-7/8"OD x 3/16"

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

18

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

19

NS

NOT SERVICED

1"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

20

NS

NOT SERVICED

1'

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

21

434103

PLATE

2шт.

22

430356

CLAMP

4шт.

23

84814948

SUPPORT

2шт.

24

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

25

NS

NOT SERVICED

1"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

26

NS

NOT SERVICED

1"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

27

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

28

See Fig 20.07D

1шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

620884

SHIM,.060" Thk

1шт.

31

9706690

NUT,M8 x 1.25, Cl 8

6шт.

32

86592092

HYD CONNECTOR

Tee, 1"-14

2шт.

33

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

34

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

86609743

BHD LOCK NUT

Jam, Bulkhead, 1"-14

5шт.

36

86623121

HYD TUBE,15.88 mm OD

1"-14

1шт.

37

86623120

HYD TUBE,15.88 mm OD

1"-14

1шт.

38

NS

NOT SERVICED

1"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

39

NS

NOT SERVICED

1"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

Выбрано товаров: 53
