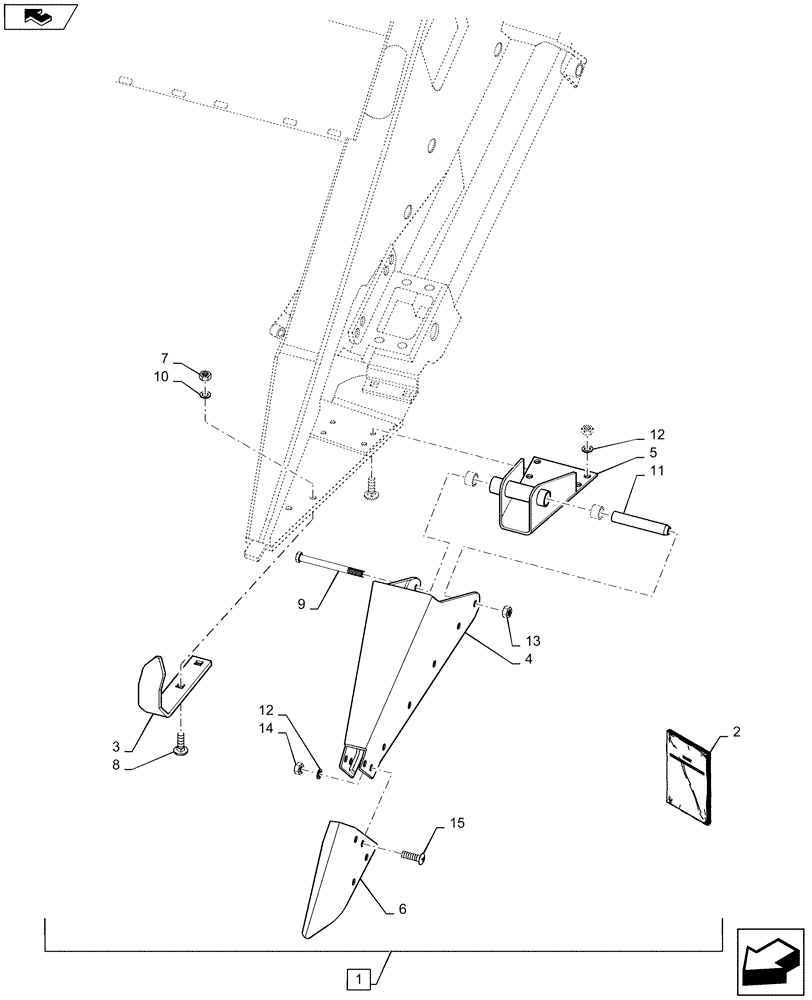

Запчасти Case IH 2020 (88.058.01) - DIA KIT, MEDIUM DIVIDER BUNDLE (88) - ACCESSORIES

1

87016131

DIA KIT, HARVESTER

Medium Divider, Incl 2 - 15

1шт.

2

87017722

INSTRUCTION

2020 Short Divider II

1шт.

3

87017725

ANGLE

Piece

2шт.

4

87017724

CHANNEL

2шт.

5

87017723

BRACKET

Piece

2шт.

6

86997152

DIVIDER POINT

2шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

8

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

8шт.

9

86509596

BOLT,Hex, M10 x 160mm, Cl 8.8

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

11

235373

PIN,19.05mm OD x 131.76mm L

2шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

14

100016

NUT,M10 x 1.5, Cl 8

12шт.

15

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

12шт.
