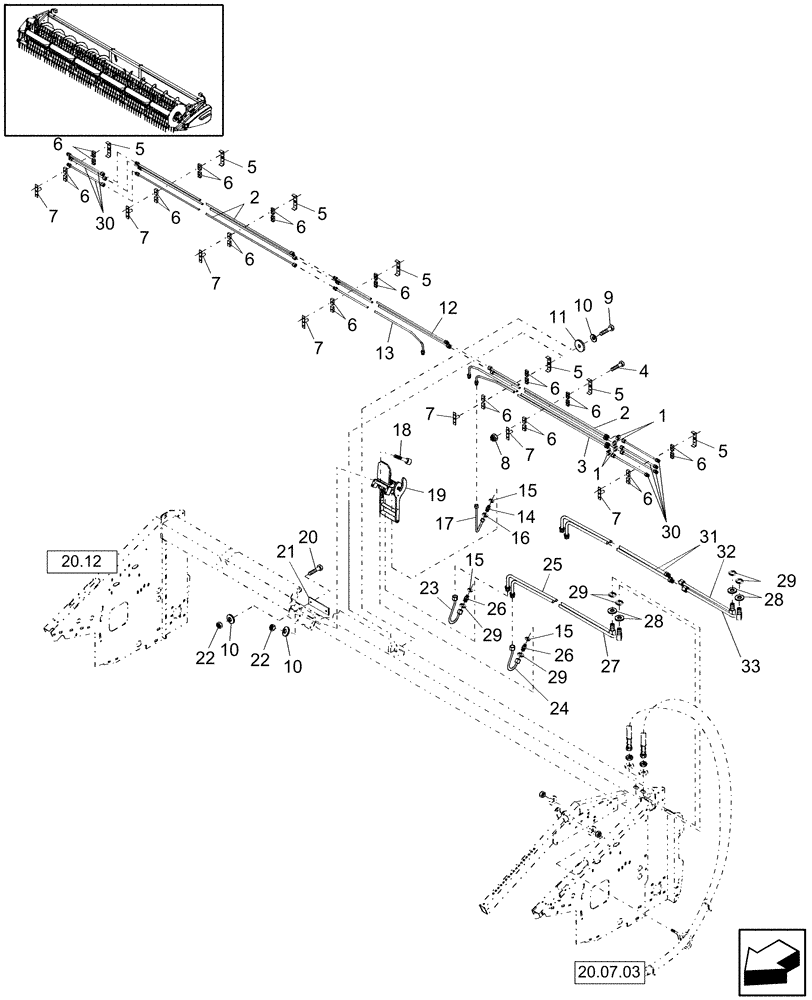

Запчасти Case IH 2020 (20.07.01) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

2

86604202

HYD TUBE

3/8", 60" Long, 20 Ft Header

5шт.

2

NSS

NOT SOLD SEPARAT

3/8", 25 Ft Header, Use 86604202 As Required

5шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

2

NSS

NOT SOLD SEPARAT

3/8", 30 Ft Header, Use 86604202 As Required

5шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

3

86604203

HYD TUBE,9.53 mm OD x 1618.3, 38.6 mm L

3/8", 20 Ft Header, Note-4" Longer Than Max Length

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

3

NSS

NOT SOLD SEPARAT

3/8", 25 Ft Header, Use 86604203 As Required

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

3

NSS

NOT SOLD SEPARAT

3/8", 30 Ft Header, Use 86604203 As Required

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

4

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

Qty 8 [20']

10шт.

5

86602890

CHANNEL

Qty 4[20 Ft]

5шт.

6

430357

CLAMP

Rubber, Qty 16[20 Ft]

20шт.

7

86602874

PLATE

Qty 4[20 Ft]

5шт.

8

353308

NUT,M6 x 1.0, Cl 8

10шт.

9

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Qty 4 [20 Ft]

5шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

(12) 20 Ft

13шт.

11

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32"ID x 1-7/8"OD x 3/16", Qty 4[20 Ft]

5шт.

12

NSS

NOT SOLD SEPARAT

3/8"

2шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

13

NSS

NOT SOLD SEPARAT

3/8"

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

14

86623107

ADAPTER,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-18 x 11/16"-16"

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

86623117

HYD TUBE,9.53 mm OD x 238.6, 92.2 mm L

11/16"-16 Fittings, 9-1/2" x 3-1/2" Approx. Length

1шт.

18

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

19

See Fig 20.07D

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

620884

SHIM,.060" Thk

1шт.

22

9706690

NUT,M8 x 1.25, Cl 8

6шт.

23

86623116

HYD TUBE,15.88 mm OD

1"-14, 6" x 4" Aprox. Length

1шт.

24

86623115

HYD TUBE,15.88 mm OD

1"-14, 6" x 4" Approx. Length

1шт.

25

NSS

NOT SOLD SEPARAT

1"-14, 5/8" OD, 25 & 30 Ft Headers

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

25

86604204

HYD TUBE,15.88 mm OD x 1505.8, 180.4 mm L

1"-14, 5/8" OD, 5' Long, 20 Ft Header

1шт.

25

87051712

TUBE,15.88 mm OD x 828.2 mm L

1"-14, 5/8" OD, 33" Long, 35 Ft Header

1шт.

26

86603051

HYD CONNECTOR,1" - 14 ORFS x 3/4" - 16 ORB

3/4"-16 x 1"-14

2шт.

27

NSS

NOT SOLD SEPARAT

1"-14, 5/8" OD, 25 & 30 Ft Headers

1шт.

Steel tubing assemblies longer than 5' are not supplied from the Service Parts System.

1шт.

27

86604205

HYD TUBE,15.88 mm OD x 1546.5, 164.1 mm L

1"-14, 5/8" OD, 5' Long, 20 Ft Header

1шт.

27

87051711

TUBE,15.88 mm OD x 870.4, 27.8 mm L

1"-14, 5/8" OD, 34" Long, 35 Ft Header

1шт.

28

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

30

87051717

HYD TUBE,9.53 mm OD x 838.2 mm L

11/16"-16, 33" Approx. Length, 35 Ft Header

7шт.

31

NS

NOT SERVICED

1"-14, 35 Ft Header

2шт.

32

87051712

TUBE,15.88 mm OD x 828.2 mm L

1"-14, 36" Approx. Length, 35 Ft Header

1шт.

33

87051711

TUBE,15.88 mm OD x 870.4, 27.8 mm L

1'-14, 36" Approx. Length, 35 Ft Header

1шт.
