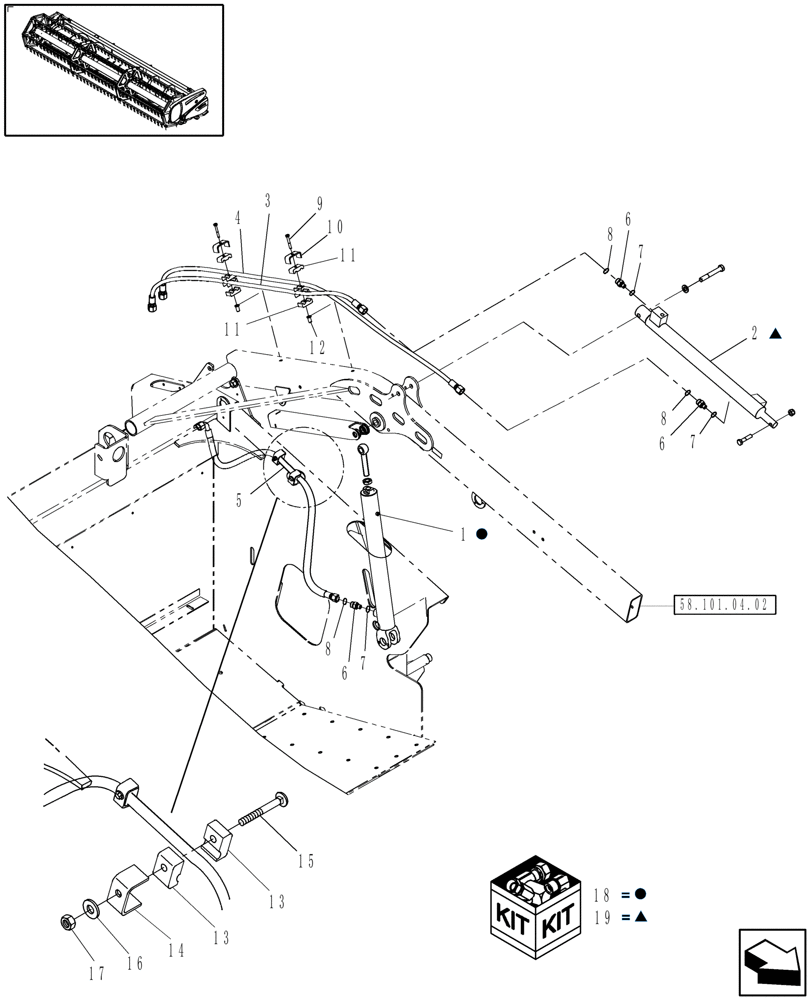

Запчасти Case IH 2020 (35.310.21) - HYDRAULICS, REEL LIFT & FORE AFT, LH (58) - ATTACHMENTS/HEADERS

1

87647112

HYDRAULIC CYLINDER,Double Acting, 32mm Rod, 380mm Stroke

Lift, Slave

1шт.

2

87715949

HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 400mm Stroke

Fore & Aft, Slave

1шт.

3

84151314

HOSE,6.35mm ID x 1000mm L

6.3 ID, 1000 Long, 11/16-16 ORFS

1шт.

4

84151317

HOSE,6.35mm ID x 1400mm L

6.3 ID, 1400 Long, 11/16-16 ORFS

1шт.

5

87676380

HOSE,6.35mm ID x 950mm L, SAE 100R16

6.3 ID, 950 Long, 11/16-16 ORFS

1шт.

6

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

3шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

9

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

10

431941

SUPPORT

2шт.

11

430357

CLAMP

4шт.

12

9833239

THREADED INSERT

Special M6

2шт.

13

433008

CLAMP

2шт.

14

442340

SUPPORT

2шт.

15

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

Ref 1, Monarch Cylinder Only

1шт.

18

84026009

SEAL KIT

Ref 1, Stamped SERTA on cylinder

1шт.

18

84141839

SEAL KIT

Ref 1, Stamped BSPB on cylinder

1шт.

18

84139388

SEAL KIT

Ref 1, Stamped M on cylinder

1шт.

19

84026460

SEAL KIT

Ref 2, Stamped SERTA on cylinder

1шт.

19

84139387

SEAL KIT

Ref 2, Stamped BSPB on cylinder

1шт.

19

84139386

SEAL KIT

Ref 2, Stamped M on cylinder

1шт.
