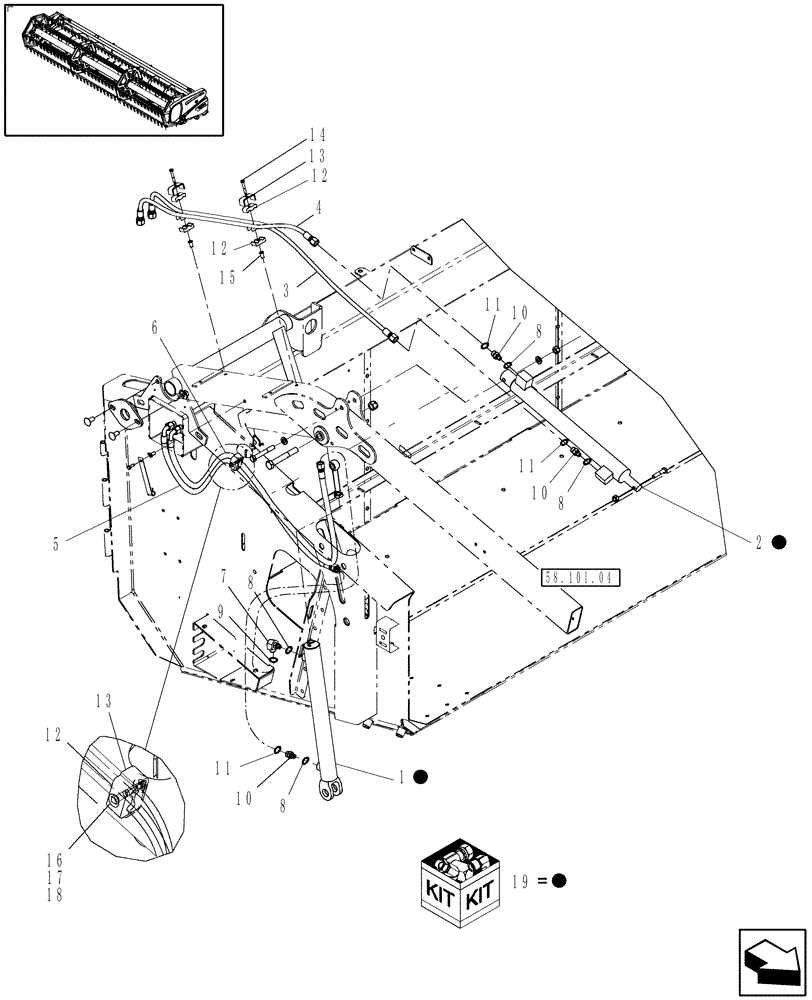

Запчасти Case IH 2020 (35.310.20) - HYDRAULICS, REEL LIFT & FORE AFT, RH (58) - ATTACHMENTS/HEADERS

1

87645535

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 380mm Stroke

Lift, Master

1шт.

2

87715955

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 400mm Stroke

Fore & Aft

1шт.

3

84151317

HOSE,6.35mm ID x 1400mm L

6.3 ID, 1400 Length, 11/16-16 ORFS

1шт.

4

84151314

HOSE,6.35mm ID x 1000mm L

6.3 ID, 1000 Length, 11/16-16 ORFS

1шт.

5

87683553

HOSE,6.35mm ID x 1360mm L, SAE 100R16

6.3 ID, 1430 Length, 11/16-16 ORFS

1шт.

6

87676380

HOSE,6.35mm ID x 950mm L, SAE 100R16

6.3 ID, 950 Length, 11/16-16 ORFS

1шт.

7

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

8

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

3шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

12

430357

CLAMP

4шт.

13

431941

SUPPORT

2шт.

14

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

15

9833239

THREADED INSERT

Special, M6

2шт.

16

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

84023914

SEAL KIT

Ref 1 & 2, Stamped SERTA on cylinder

1шт.

18

84139385

SEAL KIT

Ref 1 & 2, Stamped BSPB on cylinder

1шт.

18

84139383

SEAL KIT

Ref 1 & 2, Stamped M on cylinder

1шт.
