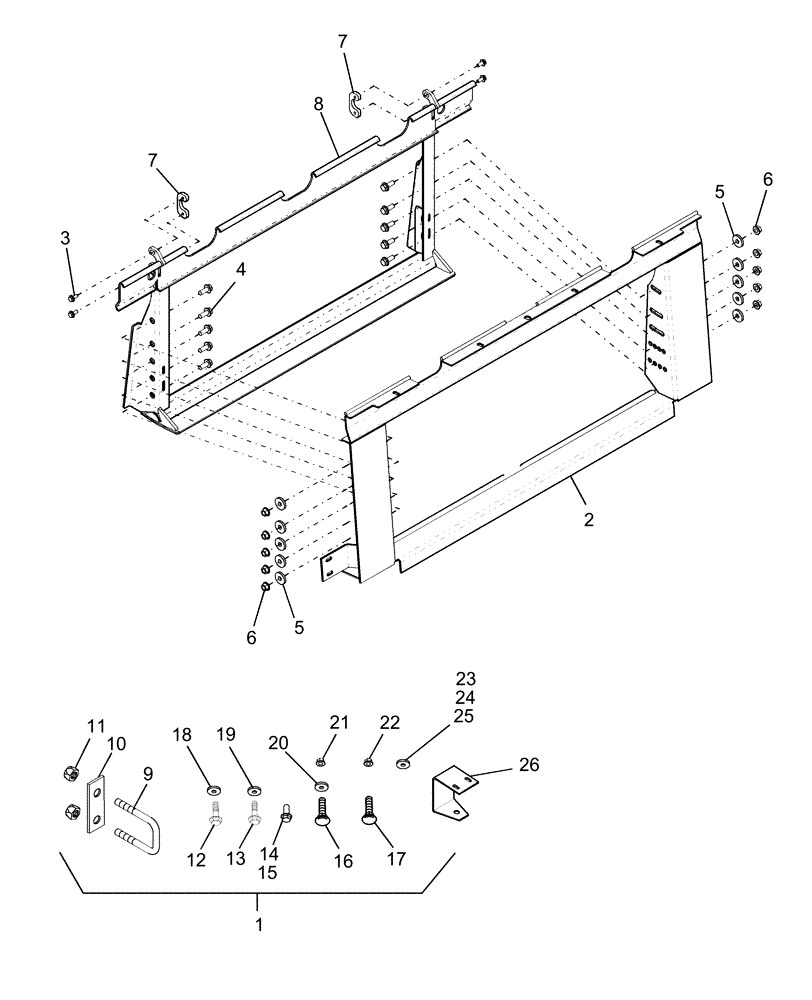

Запчасти Case IH 2020 (20.18.01[2]) - COMBINE MODEL 2000 SERIES ADAPTION, ADJUSTABLE FRAME ADAPTER AND HARDWARE (58) - ATTACHMENTS/HEADERS

1

87362990

PACKAGE, REPAIR

Adjustable Adapter, Includes Ref 1 To 26

1шт.

2

NSS

NOT SOLD SEPARAT

Header Half

1шт.

3

87343550

FLANGE BOLT,Hex, M12 x 25mm

M12 x 25

4шт.

4

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

M16 x 40

10шт.

5

145678C3

WASHER

M17

10шт.

6

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

7

87061093

LATCH

Hook

2шт.

8

NSS

NOT SOLD SEPARAT

Feeder Half

1шт.

9

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11

2шт.

10

86619254

PLATE,100mm L

Bar

2шт.

11

231-14110

LOCK NUT,5/8"-11, GB

4шт.

12

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

1шт.

13

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

1шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

20

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

21

100020

NUT,M16 x 2.0, Cl 8

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

6шт.

23

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

4шт.

24

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

87516035

BRACKET

2шт.
