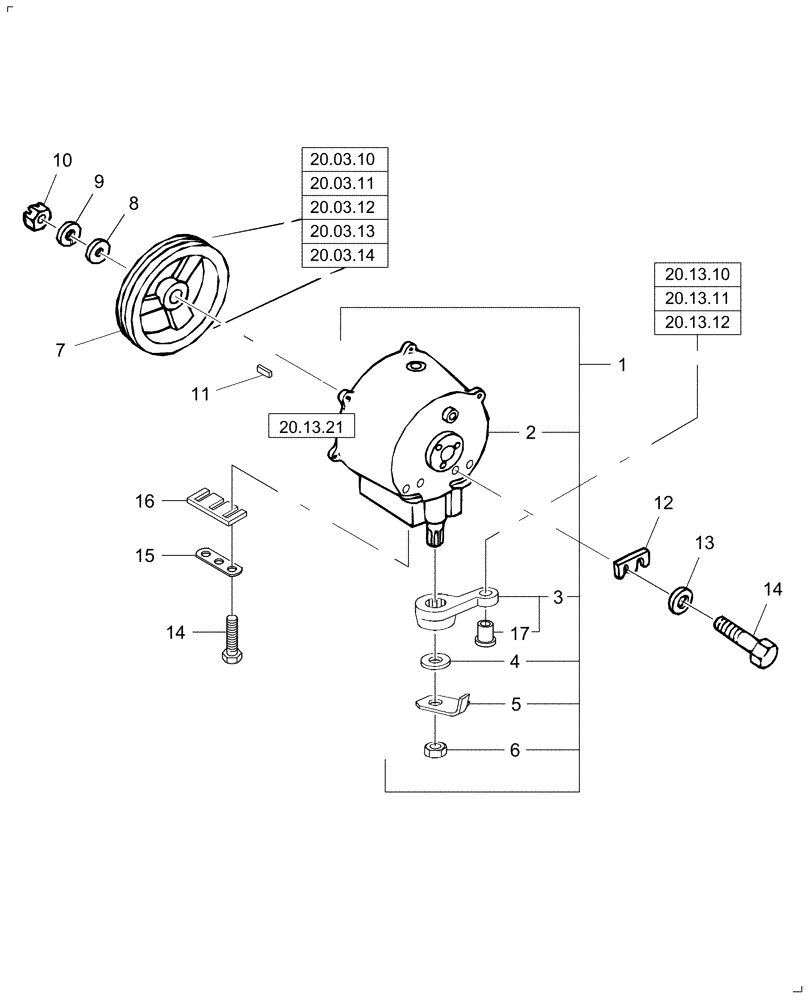

Запчасти Case IH 2010 (20.13.20) - WOBBLE BOX DRIVE (58) - ATTACHMENTS/HEADERS

1

9837960

WOBBLE BOX

1шт.

2

Wobble Box, See Fig 20.13.21

1шт.

3

84017247

ARM

1шт.

4

850053

WASHER,20.5mm ID x 55mm OD x 6mm Thk

1шт.

5

9513487

PLATE

Lock

1шт.

6

100085

NUT,M20 x 1.5, Cl 8

1шт.

7

86604996

PULLEY,279.4mm OD

279.4mm OD, LH

1шт.

7

86604997

PULLEY

247.6mm OD, RH

1шт.

7

86604996

PULLEY,279.4mm OD

LH & RH, 35 Ft Only

2шт.

8

325594

WASHER,M17 x 40mm OD x 5mm Thk

1шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

10

10790521

NUT,M16 x 1.5, Cl 10

1шт.

11

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

12

846973

WASHER

8шт.

13

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

14

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

Cap, HH, CL 8.8, M12 x 1.25 x 40

9шт.

15

86622727

SHIM

0.135"

2шт.

16

796687

SHIM,0.8mm Thk

(.036")

8ARшт.

16

847712

SHIM,1.6mm Thk

(.062")

16ARшт.

16

847713

SHIM,0.25mm Thk

(.010")

4ARшт.

17

84017250

BUSHING,15.93mm ID x 32mm OD x 19.5mm L

Locktite In Place

1шт.
