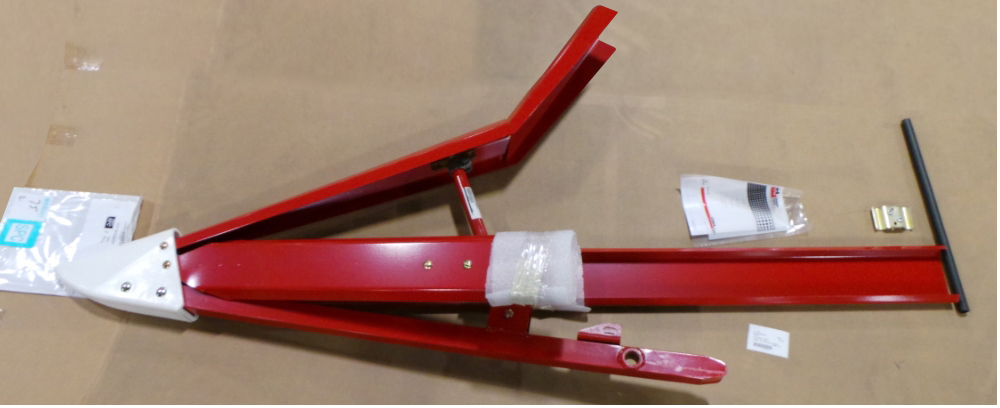

Запчасти Case IH 2010 (20.13.07) - KIT RH CROP DIVIDER (58) - ATTACHMENTS/HEADERS

1

87298164

DIVIDER ASSY.

Incl 2 - 28

1шт.

2

86997190

TUBE,15.24 mm ID x 19.05 mm OD x 450 mm L

2шт.

3

1307684C2

CLAMP

1шт.

4

87571655

SUPPORT

Inner Wing

1шт.

5

87017760

SUPPORT

Outer Wing

1шт.

6

87017754

TUBE

Divider Point

1шт.

7

86627644

SUPPORT

3шт.

8

87327192

SCREW,Truss HD, 1/4" x 3/4", Gr 8

2шт.

9

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

8шт.

11

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

12

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

13

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

3шт.

15

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

16

280129

NUT,1/4"-20

2шт.

17

86992215

LOCK NUT,1/2"-13, GC

5шт.

18

88902

NUT,3/8"-16

3шт.

19

280736

NUT,5/16"-18, GC

7шт.

20

87450158

PIPE

Inner Wing Support

1шт.

21

1316649C1

DIVIDER POINT

1шт.

22

87017761

SUPPORT

Upper Wing

1шт.

23

86997191

U-BOLT

2шт.

24

87450149

ANGLE

Wing Support Tube

2шт.

25

87017856

TUBE,21.34 mm OD x 190 mm L

Divider

1шт.

26

87017755

TUBE,22.22 mm OD x 390 mm L

Divider

1шт.

27

87017756

TUBE,23.03 mm ID x 28.57 mm OD x 390 mm L

Divider

1шт.

28

1300176C1

CLAMP,28.5mm ID

1шт.
