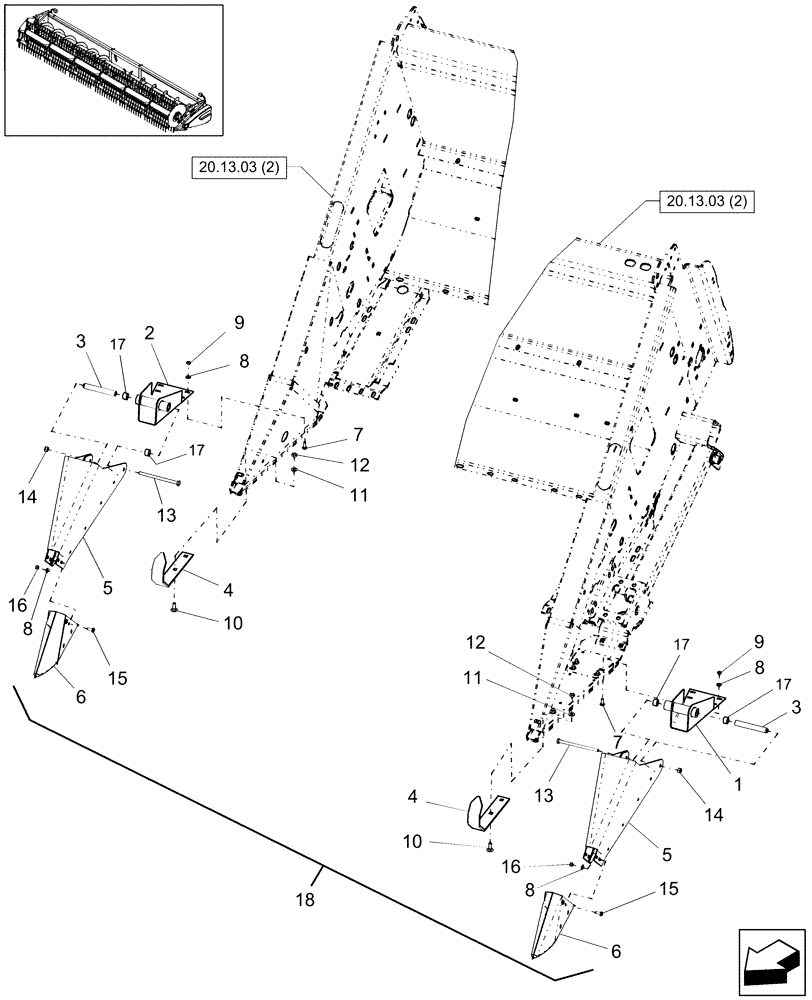

Запчасти Case IH 2010 (20.13.04[2]) - DIVIDER, MEDIUM, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87060834

BRACKET

LH, 20 to 35 Ft

1шт.

2

84248360

BRACKET

RH, 20/25 Ft

1шт.

2

87060837

BRACKET

RH, 30/35 Ft

1шт.

3

87588936

SPACER

RH, 20/25 Ft

1шт.

3

235373

PIN,19.05mm OD x 131.76mm L

30/35 Ft, LH Qty-1 20/25 Ft

2шт.

4

87060788

ANGLE

2шт.

5

87365442

CHANNEL

RH, 20/25 Ft

1шт.

5

87392631

CHANNEL

30/35 Ft, LH Qty-1 20/25 Ft

2шт.

6

1316649C1

DIVIDER POINT

2шт.

7

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

9

9706690

NUT,M8 x 1.25, Cl 8

8шт.

10

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

RH, 20/26 Ft

1шт.

13

86509596

BOLT,Hex, M10 x 160mm, Cl 8.8

30/35 Ft, LH Qty-1 20/25 Ft

2шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

15

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

8шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

17

87454794

BRONZE BUSHING

Bronze

4шт.

18

87548554

PACKAGE,SERVICE

Kit, 20 & 25 Ft, Ref 1 to, Serial Range: 1-17

1шт.

18

87060800

DIVIDER ASSY.

Kit, 30 & 35 Ft, Ref 1 to, Serial Range: 1-17

1шт.
