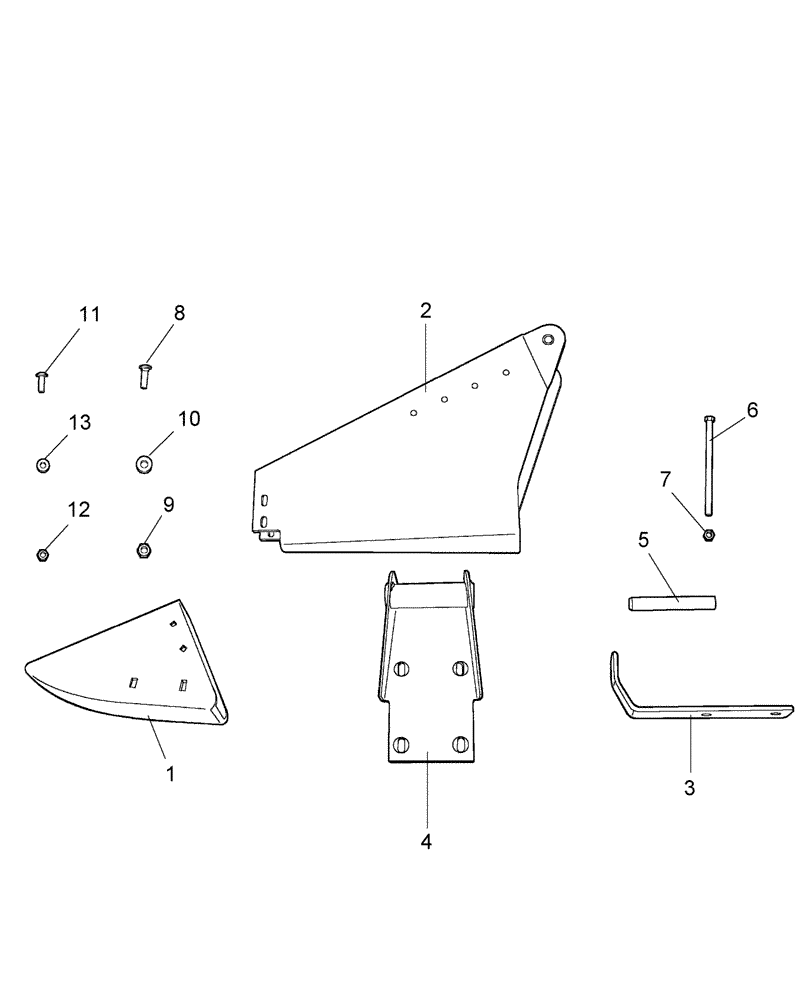

Запчасти Case IH 2010 (20.13.04[1]) - DIVIDER, MEDIUM, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

86997152

DIVIDER POINT

2шт.

2

87017724

CHANNEL

2шт.

3

87017725

ANGLE

2шт.

4

87017723

BRACKET

2шт.

87454794

BRONZE BUSHING

4шт.

5

235373

PIN,19.05mm OD x 131.76mm L

2шт.

6

86509596

BOLT,Hex, M10 x 160mm, Cl 8.8

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

12шт.

9

100016

NUT,M10 x 1.5, Cl 8

12шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

11

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

8шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.
