Запчасти Case IH 2010 (20.13.03[2]) - DIVIDER POINT & SKID SHOES, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

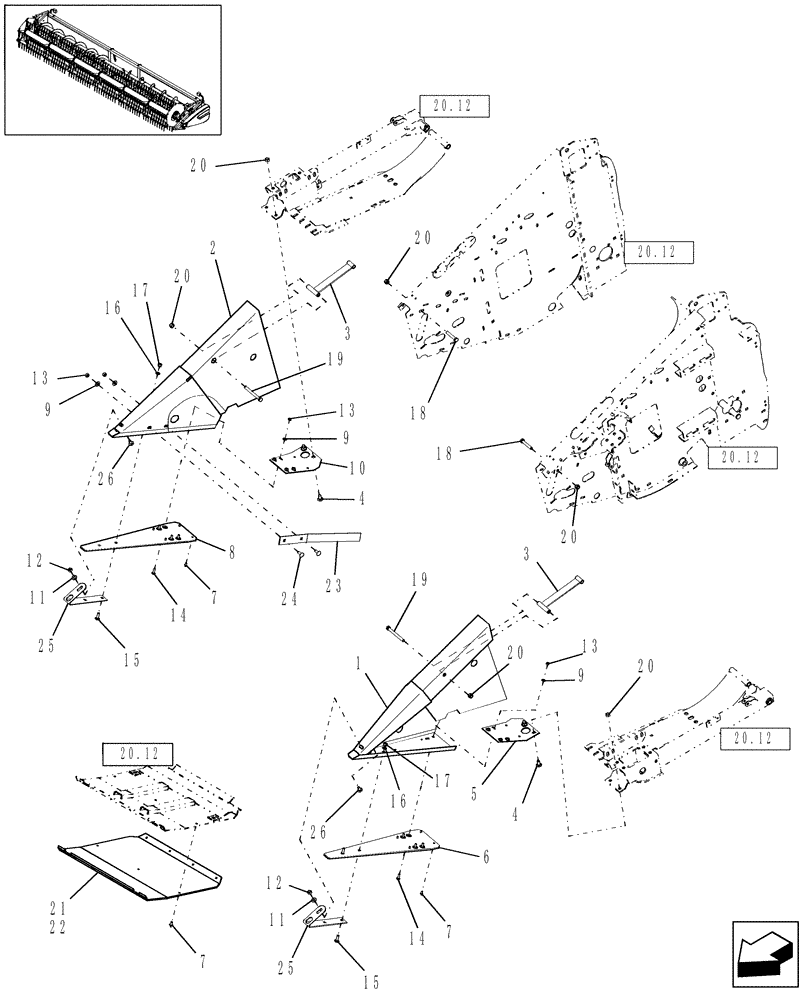

Схема запчастей Case IH 2010 - (20.13.03[2]) - DIVIDER POINT & SKID SHOES, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS
1
26
3
4
19
7
4
18
20
21
11
20.12
19
12
2
9
3
13
14
17
23
20.12
20.12
20
13
20
16
15
18
20.12
16
17
8
24
12
15
22
10
5
14
13
9
26
7
20
9
11
20
25
25
6
20
7
20.12

Артикул

Название

Примечание

Количество

1

87059393

DIVIDER

LH

1шт.

2

87059396

DIVIDER

RH, Double Knife Drive

1шт.

2

87368785

DIVIDER

RH, Single Knife Drive

1шт.

3

87060929

ARM ASSY.

2шт.

4

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

5

87354205

PLATE ASSY.

Spring, LH

1шт.

6

87059331

TRACK SHOE

LH

1шт.

7

86548631

RIVET,Pop, 6.3mm OD x 11.9mm L

0.25 x 0.47

8шт.

8

87059332

TRACK SHOE

RH, Double Knife Drive

1шт.

8

87540542

SHOE

Shoe RH, Single Knife Drive

1шт.

9

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

10

87354207

PLATE ASSY.

Spring, RH, Double Knife Drive

1шт.

10

87540541

BASE PLATE

Spring, RH, Single Knife Drive

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

14

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

8шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

18

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

19

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

20

100038

NUT,M12 x 1.75, Cl 8

8шт.

21

87536488

SKID/SHOE

Poly, End, RH, Single Knife Drive

1шт.

21

87056684

SKID/SHOE

Poly, End, LH, Single Knife Drive

1шт.

Narrow Skid/Shoe

1шт.

21

87056684

SKID/SHOE

Poly, End, LH & RH, Double Knife Drive

2шт.

22

87056685

SKID/SHOE

Poly, Center, 20 Ft

6шт.

22

87056685

SKID/SHOE

Poly, Center, 25 Ft

8шт.

22

87056685

SKID/SHOE

Poly, Center, 30 Ft

10шт.

22

87056685

SKID/SHOE

Poly, Center, 35 Ft

13шт.

23

798812

GUIDE

Crop, RH Only, Single Knife Drive

1шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

87059569

ANGLE

2шт.

26

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 35
