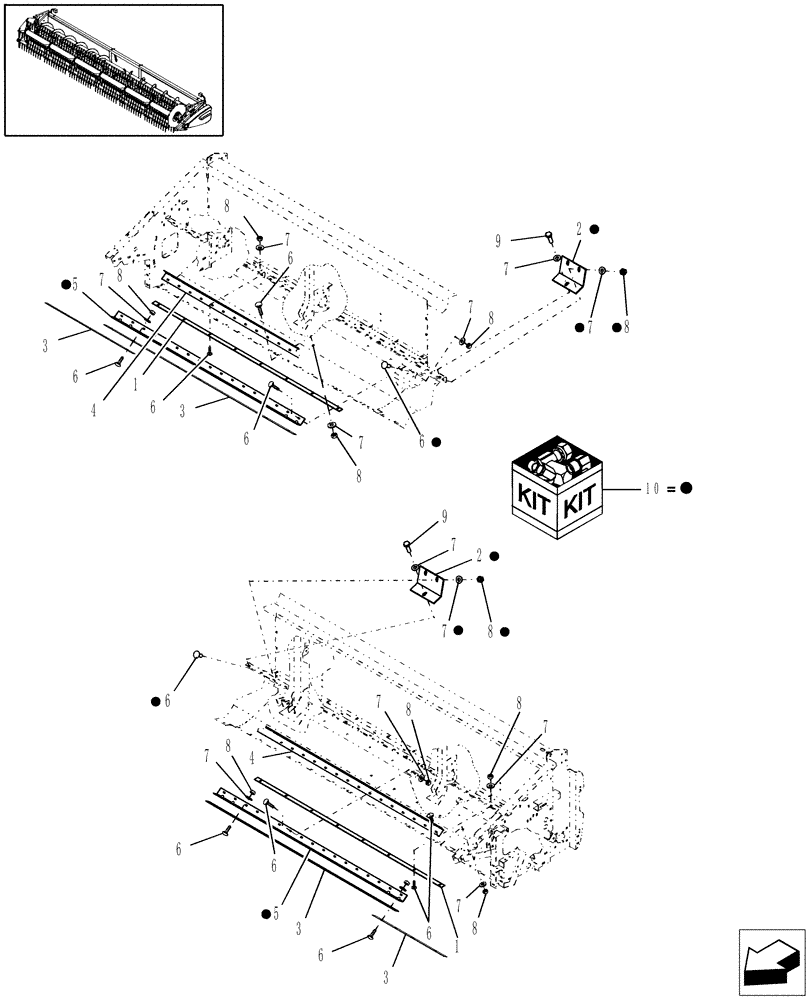

Запчасти Case IH 2010 (20.12.06[1]) - AUGER STRIPPERS, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

86639572

PLATE

Stripper, 20 Ft

2шт.

1

86639570

BAR

Stripper, 25 Ft

2шт.

1

86639568

PLATE

Stripper, 30 Ft

2шт.

2

87019230

BRACKET

90° Shape

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

2

87022313

BRACKET

Channel Shape

2шт.

PIN CBJ020001 and later

1шт.

3

87019341

STRIP

Stripper, 20 Ft

2шт.

3

87019310

STRIP

Stripper, 25 Ft

4шт.

3

87516037

STRIP

Stripper, 30 Ft

4шт.

4

87022192

ANGLE

Stripper, 20 Ft

2шт.

4

87022099

ANGLE

Stripper, 25 Ft

2шт.

4

87022153

ANGLE

Stripper, 30 Ft

2шт.

5

87019339

ANGLE

Stripper, 90° Shape, 20 Ft

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87019308

ANGLE

Stripper, 90° Shape, 25 Ft

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87019226

ANGLE

Stripper, 90° Shape, 30 Ft

4шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87022318

BRACKET

Stripper, Channel Shape, 20 Ft

2шт.

PIN CBJ020001 and later

1шт.

5

87022315

BRACKET

Stripper, Channel Shape, 25 Ft

2шт.

PIN CBJ020001 and later

1шт.

5

87019945

ANGLE

Stripper, Channel Shape, 30 Ft

2шт.

PIN CBJ020001 and later

1шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

Qty 54 [20 Ft], 112 [25 Ft], 136 [30 Ft]

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Qty 54 [20 Ft], 112 [25 Ft], 136 [30 Ft]

1шт.

8

89706690

NUT,M8, Cl 8

Qty 54 [20 Ft], 112 [25 Ft], 136 [30 Ft]

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

10

87038438

REPAIR KIT

Strippers, 25 Ft

1шт.

PIN CBJ020001 and later

1шт.

10

87038439

REPAIR KIT

Stripers, 30 Ft

1шт.

PIN CBJ020001 and later

1шт.
