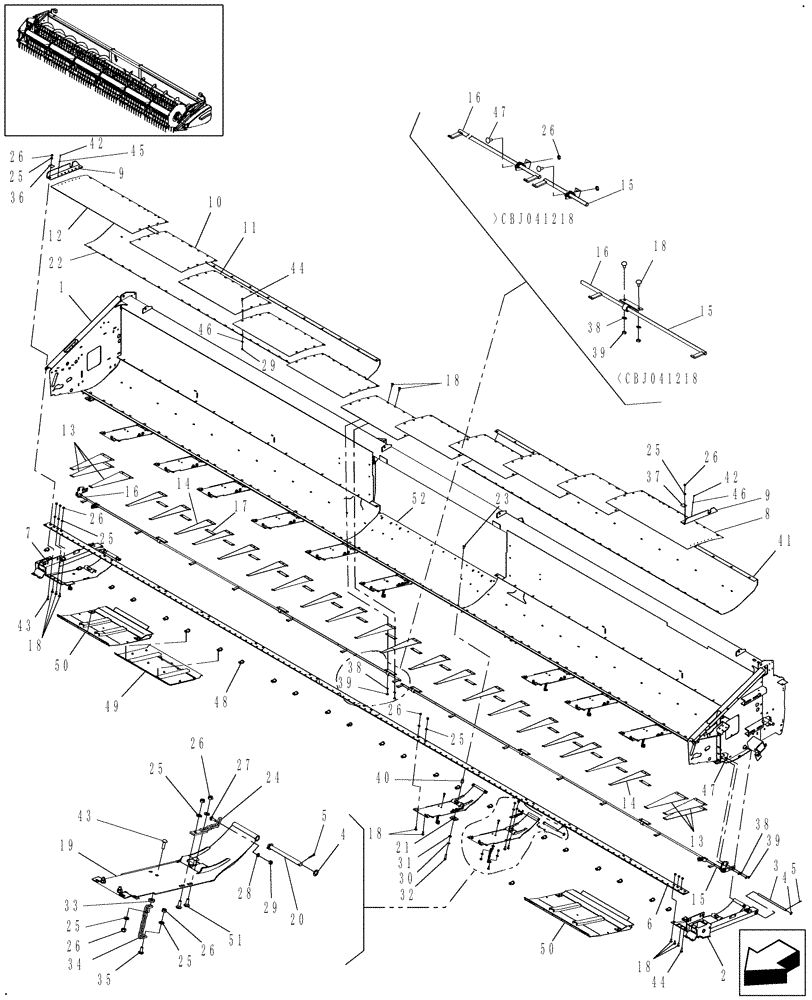

Запчасти Case IH 2010 (20.12.02[3]) - MAIN FRAME & FLOORS, 2020, 30 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87045416

FRAME ASSY

1шт.

BPIN Y9ZL52001

1шт.

1

84162589

FRAME

1шт.

PIN Y9ZL52001 and after

1шт.

2

87584607

MOUNTING PARTS

LH

1шт.

3

84998940

PIN,16mm OD x 395mm L

2шт.

4

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

26шт.

5

130007

COTTER PIN,M4 x 25

26шт.

6

87045844

CUTTERBAR

1шт.

7

87585809

MOUNTING PARTS

RH

1шт.

8

87051952

FLOOR

LH

1шт.

9

86979436

RUBBER PAD

2шт.

10

87397796

FLOOR

Intermediate

2шт.

11

87045242

FLOOR

Center

7шт.

12

87051951

FLOOR

RH

1шт.

13

606896

SPRING

6шт.

14

87051840

SPRING

20шт.

15

Sensor LH, See Figure 20.12.07

1шт.

16

Sensor RH, See Figure 20.12.07

1шт.

17

145176

REINFORCEMENT

18шт.

18

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

82шт.

19

87370754

PLATE ASSY.

11шт.

BPIN CBJ041264

1шт.

19

87657137

PLATE ASSY.

11шт.

PIN CBJ041264 and after

1шт.

20

467798

PIVOT,16mm OD x 195mm L

11шт.

21

87369695

LOCK

13шт.

22

87399425

FLOOR

RH

1шт.

BPIN Y9ZL52001

1шт.

22

84162602

FLOOR

RH

1шт.

PIN Y9ZL52001 and after

1шт.

23

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

13шт.

24

823281

CHAIN,140mm L

11шт.

25

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

78шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

78шт.

27

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

11шт.

28

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

11шт.

29

86629542

NUT,M8 x 1.25, Cl 8.8

41шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

31

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

13шт.

32

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

13шт.

33

29711

SPACER

13шт.

34

66272

CHAIN

13шт.

35

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

13шт.

36

86979433

ANGLE

RH

1шт.

37

86979434

ANGLE

LH

1шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

58шт.

39

100016

NUT,M10 x 1.5, Cl 8

58шт.

40

87369392

NUT

Special, M12 x 1.75, 34mm Long, 22 Across Flats

13шт.

41

87399426

FLOOR

LH

1шт.

BPIN Y9ZL52001

1шт.

41

84162605

FLOOR

LH

1шт.

PIN Y9ZL52001 and after

1шт.

42

445394

RIVET,Pop, 3/16" x 1/2" OAL

14шт.

43

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

15шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

30шт.

45

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

14шт.

46

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

30шт.

47

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

16шт.

48

605838

CLAMP,15.88mm ID, 11.91mm Bolt Hole, J Type

[uses existing bolt thru knife guard]

26шт.

49

87055078

PLATE ASSY.,Skid, Black

Steel, See Figure 20.13.03 For Plastic Covers

11шт.

49

87055309

SHOE (ASSY),Skid Plate, Plastic

With Skid Plate

11шт.

50

87055072

PLATE ASSY.

Steel, See Figure 20.13.03 For Plastic Covers

2шт.

51

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

22шт.

52

87516032

FLOOR

Center, Welded

1шт.

BPIN Y9ZL52001

1шт.

52

84162575

FLOOR

Center, Welded

1шт.

PIN Y9ZL52001 and after

1шт.
