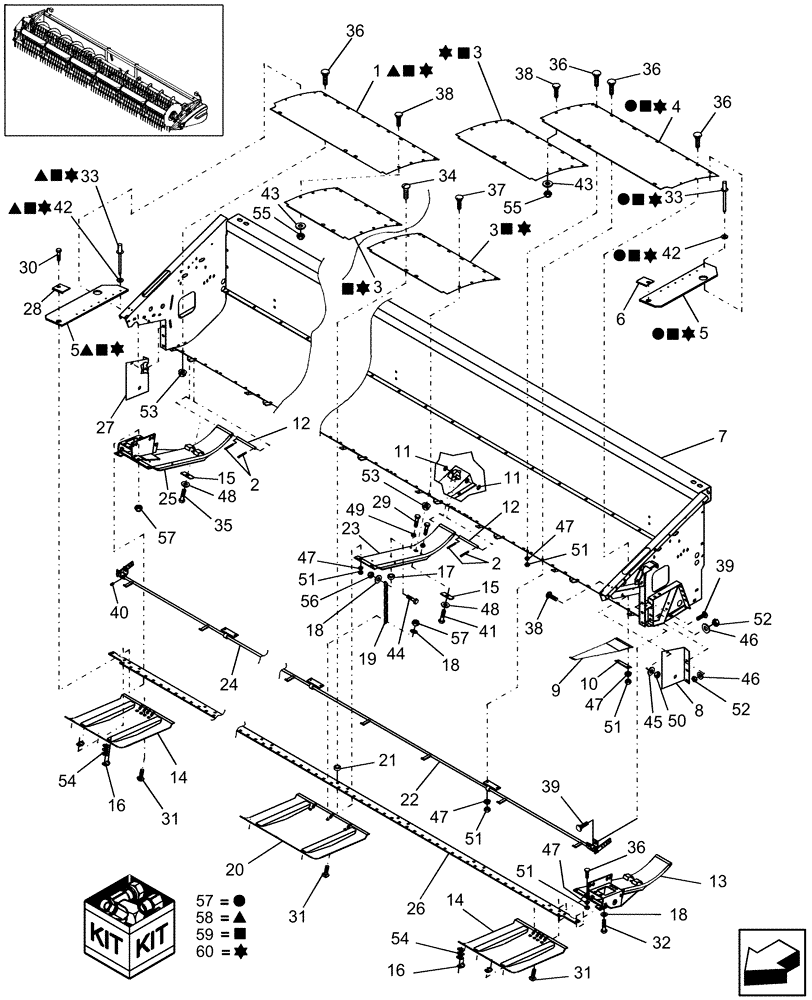

Запчасти Case IH 2010 (20.12.01[2]) - MAIN FRAME & FLOORS, 2020, 20 FT & 25 FT, PIN CBJ020701 TO CBJ021300 (58) - ATTACHMENTS/HEADERS

1

87055873

FLOOR

RH, 1035.1mm[40.8"] Wide

1шт.

2

80755

COTTER PIN,1/8" OD x 1" L

20 Ft

18шт.

2

80755

COTTER PIN,1/8" OD x 1" L

25 Ft

22шт.

3

87055871

FLOOR

800.1mm[31.5"] Wide, 20 Ft

5шт.

3

87055871

FLOOR

800.1mm[31.5"] Wide, 25 Ft

7шт.

4

87055874

FLOOR

LH, 1111.2mm[43.8"] Wide

1шт.

5

86979436

RUBBER PAD

2шт.

6

86979434

ANGLE

LH

1шт.

7

87047073

FRAME ASSY

20 Ft

1шт.

7

87047070

FRAME ASSY

25 Ft

1шт.

8

87020190

PLATE

LH

1шт.

9

606896

SPRING

20 Ft

12шт.

9

606896

SPRING

25 Ft

16шт.

10

145176

REINFORCEMENT

20 Ft

8шт.

10

145176

REINFORCEMENT

25 Ft

10шт.

11

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

21/32" ID, 1-1/16" OD, 1/16" Thk, 20 Ft

18шт.

11

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

21/32" ID, 1-1/16" OD, 1/16" Thk, 25 Ft

22шт.

12

518771

CLEVIS PIN,15.88mm OD x 184.15mm L

5/8" x 7-1/4", 20 Ft

9шт.

12

518771

CLEVIS PIN,15.88mm OD x 184.15mm L

5/8" x 7-1/4", 25 Ft

11шт.

13

850555

SUPPORT

LH

1шт.

14

87055072

PLATE ASSY.

Steel, Fig 20.13.03 For Plastic Cover

2шт.

15

CUR757921

SUPPORT

Clamp, 20 Ft

9шт.

15

CUR757921

SUPPORT

Clamp, 25 Ft

11шт.

16

605838

CLAMP,15.88mm ID, 11.91mm Bolt Hole, J Type

20 Ft

18шт.

16

605838

CLAMP,15.88mm ID, 11.91mm Bolt Hole, J Type

25 Ft

22шт.

17

29711

SPACER

20 Ft

9шт.

17

29711

SPACER

25 Ft

11шт.

18

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

22шт.

18

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

26шт.

19

66272

CHAIN

20 Ft

9шт.

19

66272

CHAIN

25 Ft

11шт.

20

87055078

PLATE ASSY.,Skid, Black

Steel, Center, 20 Ft, Figure 20.13.03 For Plastic Cover

7шт.

20

87055078

PLATE ASSY.,Skid, Black

Steel, Center, 25 Ft, Figure 20.13.03 For Plastic Cover

9шт.

21

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

20 Ft

16шт.

21

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

25 Ft

20шт.

22

87015642

ROD

LH, 20 Ft

1шт.

22

87015638

ROD

LH, 25 Ft

1шт.

23

87051797

BASE PLATE

20 Ft

7шт.

23

87051797

BASE PLATE

25 Ft

9шт.

24

87015645

ROD

20 Ft, Sensor, RH

1шт.

24

87015640

ROD

25 Ft, Sensor, RH

1шт.

25

850556

SUPPORT

RH

1шт.

26

87015613

CUTTERBAR

20 Ft

1шт.

26

87015611

CUTTERBAR

25 Ft

1шт.

27

87020192

PLATE

RH

1шт.

28

86979433

ANGLE

RH

1шт.

29

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

20 Ft

14шт.

30

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

31

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

20 Ft

9шт.

31

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

25 Ft

11шт.

32

280655

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

Cap, HH, G8, 3/8"-16 x 1-1/2"

4шт.

33

445394

RIVET,Pop, 3/16" x 1/2" OAL

Pop, 3/16" x 1/2"

14шт.

34

87260

SCREW,Truss HD, 3/8 x 1-1/4"

20 Ft

16шт.

34

87260

SCREW,Truss HD, 3/8 x 1-1/4"

25 Ft

20шт.

35

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

36

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

20 Ft

42шт.

36

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

25 Ft

56шт.

37

757919

CARRIAGE BOLT,M12 x 16mm, Cl 8.8

Short Neck, M12 x 1.75 x 16, 20 Ft

9шт.

37

757919

CARRIAGE BOLT,M12 x 16mm, Cl 8.8

Short Neck, M12 x 1.75 x 16, 25 Ft

11шт.

38

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

20 Ft

20шт.

38

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

25 Ft

26шт.

39

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

40

80975

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

4шт.

41

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

7шт.

41

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

9шт.

42

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

14шт.

43

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

20 Ft

27шт.

43

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

25 Ft

35шт.

44

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

20 Ft

9шт.

44

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

25 Ft

11шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

46

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

58шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

76шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20 Ft

9шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

25 Ft

11шт.

49

100095

THIN NUT,Thin, M16 x 2, Cl 04

20 Ft

14шт.

49

100095

THIN NUT,Thin, M16 x 2, Cl 04

25 Ft

18шт.

50

9635082

NUT,5/16" - 18, Gr 5

2шт.

51

9628503

NUT,3/8"-16, G5

20 Ft

58шт.

51

9628503

NUT,3/8"-16, G5

25 Ft

76шт.

52

100016

NUT,M10 x 1.5, Cl 8

6шт.

53

757918

NUT

CL 8, M12 x 1.75 x 24, 24mm [1" length], 20 Ft

9шт.

53

757918

NUT

CL 8, M12 x 1.75 x 24, 24mm [1" length], 25 Ft

11шт.

54

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

6шт.

55

280736

NUT,5/16"-18, GC

20 Ft

27шт.

55

280736

NUT,5/16"-18, GC

25 Ft

35шт.

56

100037

LOCK NUT,M10 x 1.5, Cl 8

20 Ft

20шт.

56

100037

LOCK NUT,M10 x 1.5, Cl 8

25 Ft

24шт.

57

87518258

FLOOR

Kit, 20/25 Ft, LH, Flat Rear Edge

1шт.

58

87518259

FLOOR

Kit, 20/25 Ft, RH, Flat Rear Edge

1шт.

59

87518598

FLOOR

Kit, 20 Ft, Flat Rear Edge

1шт.

60

87518597

FLOOR

Kit, 25 Ft, Flat Rear Edge

1шт.
