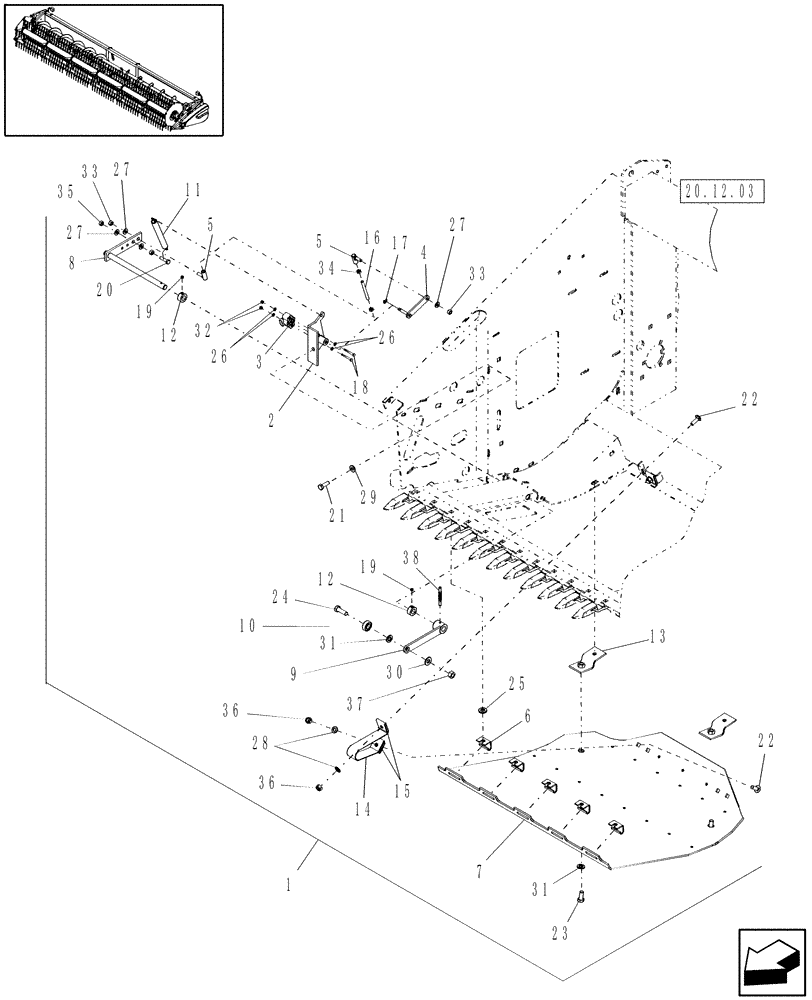

Запчасти Case IH 2010 (20.06.02[2]) - HEIGHT CONTROL, 2010, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

NLS

NO LONGER SERVICED

1шт.

2

87046637

ANGLE

LH

1шт.

2

87055357

ANGLE

RH

1шт.

3

86616339

SENSOR,CCW

2шт.

4

87046644

ROD

2шт.

5

86548493

BALL,5/16" -24 x 1-2/5"

JOINT, 5/16 C-Z TYPE G BALL

4шт.

6

86595813

CLIP

10шт.

7

87046265

SKID PLATE

2шт.

8

87035933

SHAFT ASSY.

SHAFT

2шт.

9

87046238

ARM ASSY.

ARM

2шт.

10

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

2шт.

11

87047744

SPRING

2шт.

12

44284

COLLAR,16mm ID x 28.57mm OD x 12.7mm L

4шт.

13

87046638

BRAKE ASSY.

BRACKET

4шт.

14

84032833

BAND

STRIP

4шт.

15

84036081

CLAMP,12mm ID, 11mm Bolt Hole, J Type

8шт.

16

87046641

ROD ASSY.

THREADED

2шт.

17

100-3431

SNAP RING,#31, Ext, E-Type

2шт.

18

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

19

80975

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

4шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

22

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

8шт.

23

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

24

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

25

No Longer Used

1шт.

26

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

28

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

31

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

32

43440

LOCK NUT,M5 x .8, Cl 8

4шт.

33

86629539

NUT,5/16"-24, G5

4шт.

34

87307

JAM NUT,Jam, 5/16"-24, G2

4шт.

35

9706690

NUT,M8 x 1.25, Cl 8

4шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

37

9706685

NUT,M12 x 1.75, Cl 8

2шт.

38

84923

LOCK PIN,3/16" x 1 1/4", Slotted

2шт.
