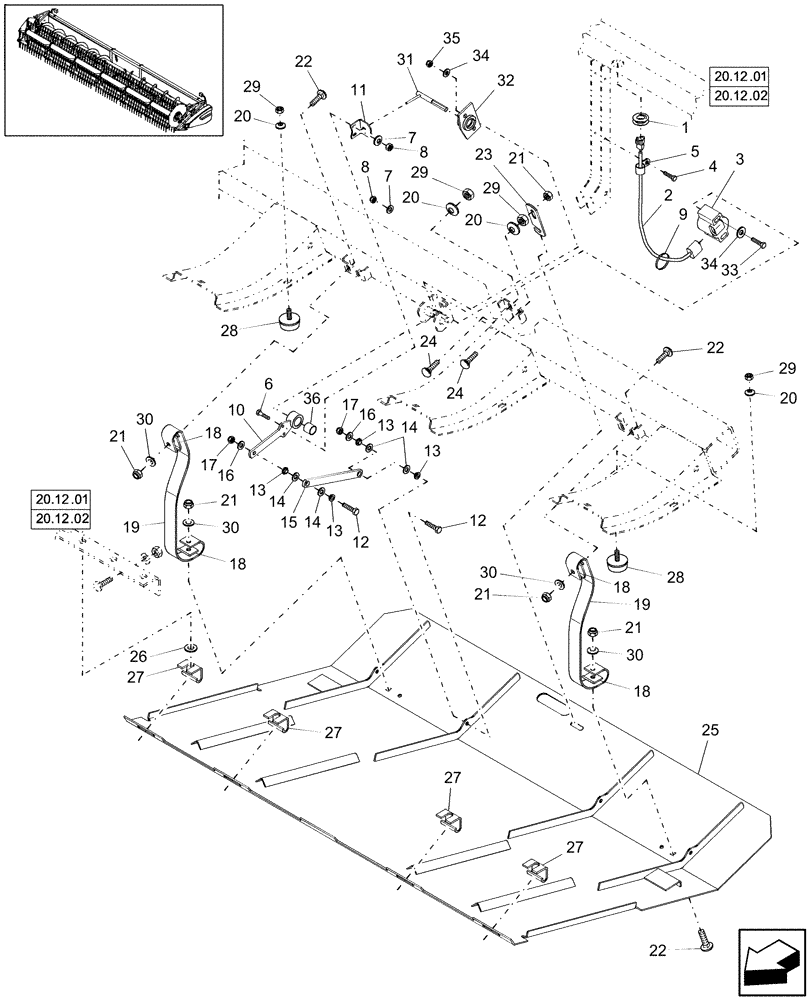

Запчасти Case IH 2010 (20.06.02[1]) - HEIGHT CONTROL, 2010, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

682052

GROMMET

2шт.

2

87010564

WIRE HARNESS

Jumper, Header Height

2шт.

3

86616339

SENSOR,CCW

AHHC Potentiometer

2шт.

4

412093

SELF-TAP SCREW

M6 x 1 x 12

6шт.

5

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

Wire

6шт.

6

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

8шт.

7

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

8шт.

8

86508813

NUT,M5, Cl 8

8шт.

9

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

2шт.

10

86602343

ARM

2шт.

11

86607215

ANGLE

2шт.

12

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

13

133246

BUSHING,8mm ID x 17.53mm OD x 7.26mm L

8шт.

14

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1/2"ID x 7/8"OD x 0.049"

8шт.

15

86602346

SUPPORT

Link

2шт.

16

87362

WASHER,5/16" SAE

2шт.

17

231-4145

NUT,5/16"-18, GB

2шт.

18

84036081

CLAMP,12mm ID, 11mm Bolt Hole, J Type

16шт.

19

84032833

BAND

8шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

21

100037

LOCK NUT,M10 x 1.5, Cl 8

18шт.

22

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

23

87019955

PLATE

2шт.

24

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

25

86602403

SKID PLATE

25 Ft Header

2шт.

25

86602402

SKID PLATE

30 Ft Header

2шт.

26

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

4шт.

27

86595813

CLIP

8шт.

28

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

4шт.

29

100016

NUT,M10 x 1.5, Cl 8

8шт.

30

140017

WASHER,M10 x 20mm OD x 2mm Thk

16шт.

31

86642493

SHAFT

W/Pin

2шт.

32

86642494

PLATE

2шт.

33

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

34

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

35

86508813

NUT,M5, Cl 8

4шт.

36

420761

BUSHING,20mm ID x 23mm OD x 20mm L

2шт.
