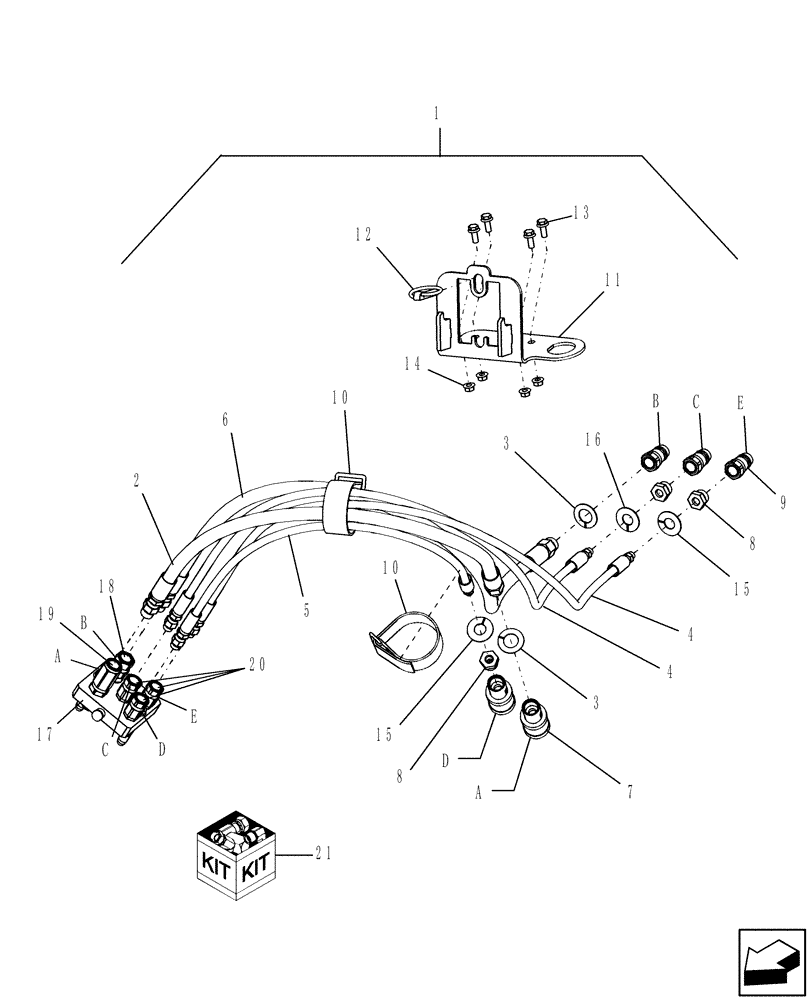

Запчасти Case IH 2010 (20.18.02) - COMBINE MODEL 2000 SERIES ADAPTION, HOSES AND COUPLINGS (58) - ATTACHMENTS/HEADERS

1

87301386

PACKAGE, REPAIR

1шт.

2

87301376

FLEXIBLE HOSE

Reel Drive Supply, A Connection

1шт.

3

1345266C1

WASHER

Plastic, White

2шт.

4

87301378

FLEXIBLE HOSE

Reel Lift [C] and Aft [E]

2шт.

5

87301380

FLEXIBLE HOSE

Reel Fore, D Connection

1шт.

6

87301377

FLEXIBLE HOSE

Reel Drive Return, B Connection

1шт.

7

1282338C91

COUPLING, QUICK, FEM

2шт.

8

196443A1

REDUCER

Reducer, -10 ORB x -4 ORB

3шт.

9

1272399C2

QUICK MALE COUPLING

Male

3шт.

10

87108048

SECURING STRAP

Cinching

2шт.

11

87301385

BRACKET

Header Coupling

1шт.

12

378704A1

LOCK PIN

Klik

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

1541792C1

WASHER

Plastic, Red

2шт.

16

1541804C1

WASHER

Plastic, Black

1шт.

17

84435010

QUICK MALE COUPLING

1шт.

18

84435503

HYD CONNECTOR

1шт.

19

84435502

HYD CONNECTOR

1шт.

20

84435504

HYD CONNECTOR

3шт.

21

86623900

REPAIR KIT

Aligning Pins and Bolts, For Ref. 17

1шт.

21

86623898

SEAL,1mm OD x 3.2mm Thk

For Ref. 18 & 19

1шт.

21

86623899

SEAL KIT,13mm OD x 2.5mm Thk

For Ref. 20

1шт.
