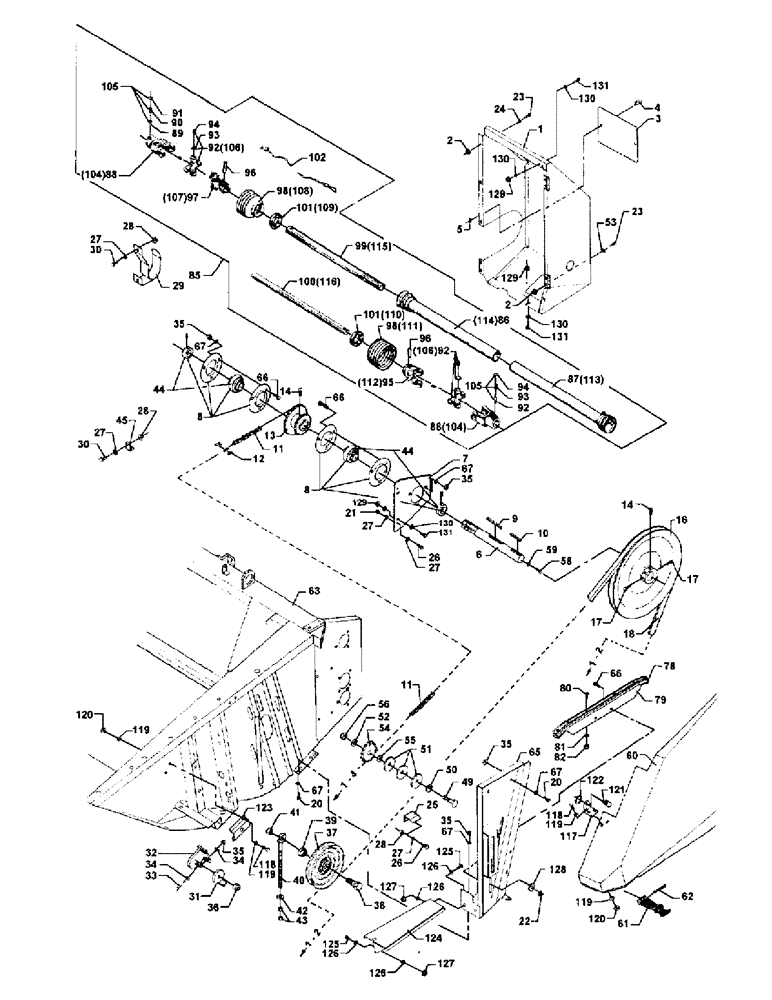

Запчасти Case IH 1030 (1-05[01]) - GUARDS AND TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case IH 1030 - (1-05[01]) - GUARDS AND TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/1024812.png)
№
Артикул
Название
Примечание
Количество
1
28283164
PROTECTION PLATE
GUARD
1шт.
2
41013400
NUT
COMBI NUT
5шт.
3
38280958
COVER
COVER
1шт.
4
43427500
PIN
LOCK PIN
2шт.
5
42555500
CIRCLIP
CIRCLIP
2шт.
6
28281135
COUNTERSHAFT
COUNTER SHAFT
1шт.
7
38283099
LARGE PLATE
PLATE, LARGE BEARING BRACKET
1шт.
8
41707800
FLANGED BEARING
FLANGE BEARING
2шт.
9
43114900
KEY
KEY
1шт.
10
D43105000
KEY
KEY
1шт.
11
42332900
CHAIN (AG)
CHAIN 98
1шт.
12
42365100
CHAIN LINK
JOINT LINK
1шт.
13
28281133
DRIVE SPROCKET
SPROCKET
1шт.
14
40466200
SCREW,M10 x 20mm, Cl 8.8
SET SCREW W. LOCK
3шт.
16
28281148
GROOVED PULLEY
V-BELT PULLEY
1шт.
17
40466700
SCREW,M10 x 25mm, Cl 8.8
SET SCREW W. LOCK
2шт.
18
41985900
V-BELT
V-BELT
1шт.
20
40407700
SCREW,Hex, M10 x 15mm, Cl 8.8
HEXAGON SCREW
4шт.
21
41087500
NUT
LOCK NUT
1шт.
22
41087600
LOCK NUT
LOCK NUT +F929460
2шт.
23
40402400
SCREW,Hex, M6 x 16mm, Cl 8.8
HEXAGON SCREW
1шт.
24
20400405
WASHER
SPARE PART WASHER
5шт.
25
38283098
SUPPORT
FITTINGS
1шт.
27
20400506
SPACER
SPACER DIA. 8.5/20X2.5
1шт.
28
41013500
NUT
COMBI NUT
1шт.
29
38281345
SUPPORT
BOW
1шт.
30
40404700
SCREW,Hex, M8 x 16mm, Cl 8.8
HEXAGON SCREW
3шт.
31
28251593
PLATE, LOCKING
LOCK WASHER
2шт.
32
38251918
SUPPORT
STRAWDIVIDER BRAKE
2шт.
33
40407700
SCREW,Hex, M10 x 15mm, Cl 8.8
HEXAGON SCREW
4шт.
34
20400507
WASHER
WASHER
8шт.
35
41087600
LOCK NUT
LOCK NUT
1шт.
36
41087900
NUT
LOCK NUT
2шт.
37
38760574
PULLEY
TENSION ROLLER DIA. 175
1шт.
38
28760156
SCREW
BOLT
1шт.
39
28760155
BUSHING
SPACER BUSH
1шт.
40
28260181
BOLT
TENSION BOLT
1шт.
41
41087900
NUT
LOCK NUT
1шт.
42
20400416
WASHER
WASHER DIA. 10.5/30X2.5
1шт.
43
41010800
NUT
HEXAGON NUT
2шт.
44
41663500
BALL BEARING
BALL BEARING
2шт.
45
38250648
ANGLE
FITTINGS F. GUARDIN
1шт.
49
40433600
SCREW,Hex, M16 x 70mm, Cl 8.8
HEXAGON SCREW
1шт.
50
20400463
WASHER
WASHER DIA. 16,5X50X5
1шт.
51
20400460
WASHER
WASHER
3шт.
52
20400459
WASHER
WASHER DIA. 17/30X3
1шт.
53
20400470
DISC
WASHER DIA. 6.4/18X1.6
4шт.
54
41716800
DRIVE SPROCKET
CHAIN TIGHTENER
1шт.
55
20400516
SPACER
WASHER (5)
1шт.
56
41087900
NUT
LOCK NUT
1шт.
57
28181284
WASHER
WASHER
1шт.
58
40416300
SCREW,Hex, M16 x 30mm, Cl 8.8
HEXAGON SCREW
1шт.
59
28181284
WASHER
WASHER
1шт.
60
38281583
PROTECTION PLATE
SIDE GUARD F.926971
1шт.
60
38283156
PROTECTION PLATE
GUARD T.926970
1шт.
61
44737100
STRAP
RUBBER STRAP T.926970
1шт.
62
41411100
PIN
SPLIT PIN T.926970
1шт.
63
38283687
CUTTERBAR
TABLE (S8)
1шт.
63
38283688
CUTTERBAR
TABLE (T7)
1шт.
63
38283689
CUTTERBAR
TABLE (S4)
1шт.
63
38283690
CUTTERBAR
TABLE (T8)
1шт.
63
38283691
CUTTER BAR
TABLE (F3)
1шт.
63
38283858
FRAME
TABLE (F4)
1шт.
65
28283092
LARGE PLATE
PLATE, LARGE BRACKET PLATE
1шт.
66
40066800
SCREW,M10 x 30mm
SCREW +F.929460
2шт.
67
20400419
WASHER
WASHER
1шт.
78
28281131
SLIDE
SLIDE RAIL
1шт.
79
28283106
REINFORCEMENT
STRENGTHENING
1шт.
80
40609300
SCREW
SCREW
4шт.
81
20400466
WASHER
WASHER DIA. 5,3/15X1,2
4шт.
82
41087200
LOCK NUT
LOCK NUT
4шт.
85
45602200
LONG SHAFT
P.T.O. SHAFT (T7)
1шт.
85
45602300
LONG SHAFT
P.T.O. SHAFT (T9)
1шт.
85
45608700
LONG SHAFT
P.T.O. SHAFT (S8)
1шт.
85
45609200
COUPLING
P.T.O. SHAFT (F4)
1шт.
86
45691600
TUBE
PROTECTING TUBE (S8), WALTERSCH.
1шт.
86
45691700
TUBE
(T7), WALTERSCH.
1шт.
86
45691800
TUBE
PROTECTING TUBE (T9), WALTERSCH.
1шт.
86
45691900
TUBE
PROTECTING TUBE (F3), WALTERSCH.
1шт.
87
45690000
TUBE
PROTECTING TUBE (S8), WALTERSCH.
1шт.
87
45690100
TUBE
PROTECTING TUBE (T7), WALTERSCH.
1шт.
87
45690200
TUBE
PROTECTING TUBE (T9), WALTERSCH.
1шт.
87
45690300
TUBE
PROTECTING TUBE (F3), WALTERSCH.
1шт.
88
45650000
FORK
FORK POS.89-91
2шт.
89
45665300
SPLIT PIN/SAFETY PIN
PIN WALTERSCH.
2шт.
90
45667300
SPRING
PRESSURE SPRING WALTERSCH.
2шт.
91
45645700
WASHER
WASHER WALTERSCH.
2шт.
92
45647300
U-JOINT SPIDER
CROSS WALTERSCH.
2шт.
94
43001500
LUBE NIPPLE
GREASE NIPPLE
2шт.
95
45650100
JAW
UNIVERSAL YOKE WALTERSCH.
1шт.
96
42619100
PIN
TIGHTENING PIN
2шт.
97
45650200
JAW
UNIVERSAL YOKE WALTERSCH.
1шт.
98
45688000
BELLOWS
PROTECTING FUNNEL WALTERSCH.
2шт.
99
45695000
SHAFT
PROFILE SHAFT (S8), WALTERSCH.
1шт.
99
45695100
SHAFT
PROFILE SHAFT (T7), WALTERSCH.
1шт.
99
45695200
SHAFT
PROFILE SHAFT (T9), WALTERSCH.
1шт.
99
45695300
SHAFT
PROFILE TUBE (F3), WALTERSCH.
1шт.
100
45693600
SHAFT
PROFILE SHAFT (S8), WALTERSCH.
1шт.
100
45693700
SHAFT
PROFILE SHAFT (T7), WALTERSCH.
1шт.
100
45693800
SHAFT
PROFILE SHAFT (T9), WALTERSCH.
1шт.
100
45693900
SHAFT
PROFILE SHAFT (F3), WALTERSCH.
1шт.
101
45682700
RING
Sliding, Walterscheid
2шт.
102
45681800
CHAIN (AG)
CHAIN
2шт.
104
45630000
JAW
UNIVERSAL YOKE CPL. (DL)
2шт.
105
45632400
KIT
LAS BONDIOLI
2шт.
106
45630300
U-JOINT SPIDER
HUB BONDIOLI
2шт.
107
45630200
JAW
UNIVERSAL YOKE BONDIOLI
1шт.
108
45630400
BELLOWS
PROTECTIVE GUARD BONDIOLI
1шт.
109
45630600
RING
Sliding, Bondioli
1шт.
110
45630700
RING
SLIDE BEARING RING BONDIOLI
1шт.
111
45630500
BELLOWS
PROTECTIVE GUARD BONDIOLI
1шт.
112
45630100
JAW
UNIVERSAL YOKE BONDIOLI
1шт.
113
45632000
TUBE
(S8), BONDIOLI
1шт.
113
45632100
TUBE
INT. PROTECTION TUB (T7), BONDIOLI
1шт.
113
45632200
TUBE
PROTECTING TUBE (T9), BONDIOLI
1шт.
113
45632300
TUBE
PROTECTING TUBE INT (F3), BONDIOLI
1шт.
113
45633600
PROTECTOR
PROTECTING TUBE INT (F4), BONDIOLI
1шт.
114
45631600
TUBE
(S8), BONDIOLI
1шт.
114
45631700
TUBE
(T7), BONDIOLI
1шт.
114
45631800
TUBE
PROTECTING TUBE (T9), BONDIOLI
1шт.
114
45631900
TUBE
PROTECTING TUBE EXT (F3), BONDIOLI
1шт.
114
45633500
PROTECTOR
PROTECTING TUBE EXT (F4), BONDIOLI
1шт.
115
45630800
SHAFT
(S8), BONDIOLI
1шт.
115
45630800
SHAFT
(T7), BONDIOLI
1шт.
115
45630900
SHAFT
(T9), BONDIOLI
1шт.
115
45631100
SHAFT
PROFILE TUBE EXT. (F3), BONDIOLI
1шт.
115
45633300
TUBE
PROFILE TUBE EXT. (F4), BONDIOLI
1шт.
116
45631200
SHAFT
(S8), BONDIOLI
1шт.
116
45631300
SHAFT
(T7), BONDIOLI
1шт.
116
45631400
SHAFT
PROFILE TUBE INT. (T9), BONDIOLI
1шт.
116
45631500
SHAFT
PROFILE TUBE INT. (F3), BONDIOLI
1шт.
116
45633400
TUBE
PROFILE TUBE INT. (F4), BONDIOLI
1шт.
117
28281577
SUPPORT
ANGLE F.926971
1шт.
118
40402600
SCREW,Hex, M6 x 20mm, Cl 8.8
HEXAGON SCREW +F.931664
1шт.
119
20400470
DISC
WASHER F.926971, DIA. 6.4/18X1.6
1шт.
120
41087400
LOCK NUT
LOCK NUT +F.931664
1шт.
121
43427500
PIN
LOCKPIN F.926971
1шт.
122
42555500
CIRCLIP
CIRCLIP F.926971
1шт.
123
28281578
SUPPORT
RETAINER F.926971
1шт.
124
38281570
SHEET
BOTTOM PLATE F.926971
1шт.
125
40405000
SCREW,Hex, M8 x 25mm, Cl 8.8
HEXAGON SCREW +F.931664
3шт.
126
20400506
SPACER
SPACER +F.931664, DIA. 8.5/20X2,5
6шт.
127
41087500
NUT
LOCK NUT +F.931664
3шт.
128
20400416
WASHER
WASHER +F.929460, DIA. 10.5/30X2.5
2шт.
129
41087500
NUT
LOCK NUT +F.931664
1шт.
130
20400506
SPACER
SPACER +F.931664, DIA. 8.5/20X2.5
1шт.
131
40405000
SCREW,Hex, M8 x 25mm, Cl 8.8
HEXGON SCREW +F.931664
1шт.
132
42513700
CIRCLIP
1шт.
133
41622700
BEARING, BALL
1шт.
