(2-4[01]) - REEL SUSPENSION AND HYDRAULIC MOTOR

Запчасти Case IH 1030 (2-4[01]) - REEL SUSPENSION AND HYDRAULIC MOTOR (58) - ATTACHMENTS/HEADERS

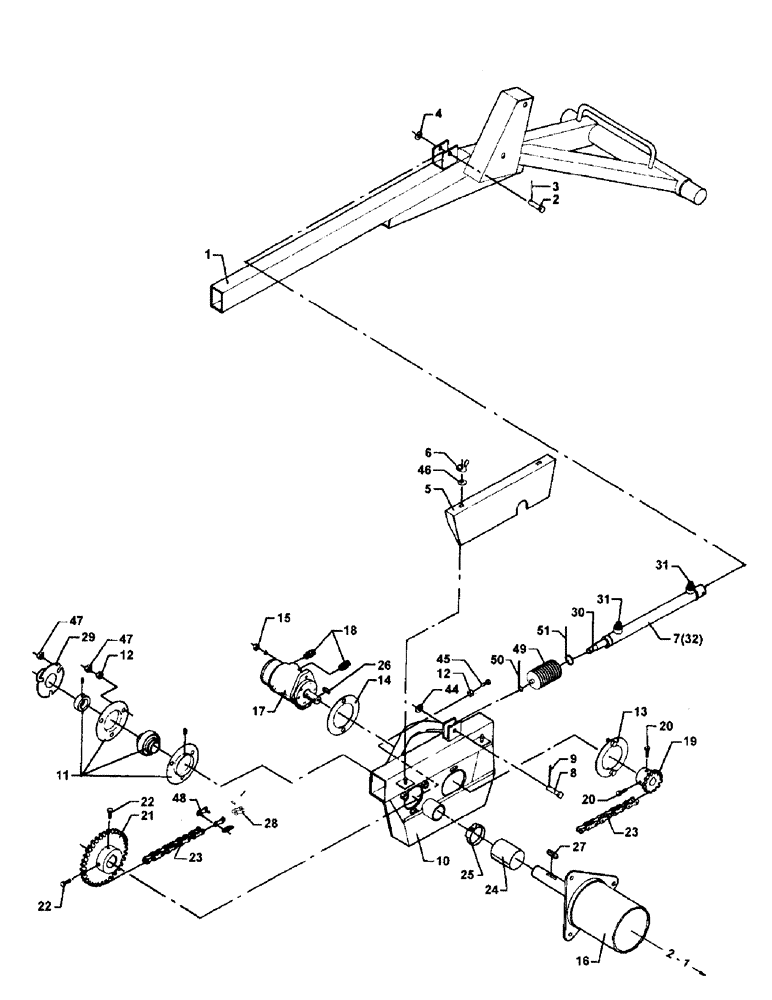

Схема запчастей Case IH 1030 - (2-4[01]) - REEL SUSPENSION AND HYDRAULIC MOTOR (58) - ATTACHMENTS/HEADERS
51
21
18
46
22
47
44
16
2
4
12
26
7
11
31
31
1
24
15
49
20
5
8
14
25
10
50
45
9
23
12
23
13
20
29
48
47
6
28
19
32
3
30
22
17
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

38283302

FRAME

REEL FRAME RIGHT (E4)

1шт.

1

38283816

ARM

REEL FRAME RIGHT (F4)

1шт.

2

28280383

PIN

PIN

1шт.

3

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

4

20400471

WASHER

WASHER DIA. 10.5/20X2

1шт.

5

28280046

DRIVE SHAFT

COVER

1шт.

6

41057100

NUT

WING NUT

2шт.

7

45100027

JACK BODY

REEL CYLINDER DIA. 32/20

1шт.

8

28280382

SPLIT PIN/SAFETY PIN

PIN

1шт.

9

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

10

28680055

SUPPORT

BEARING PIECE

1шт.

11

41707800

FLANGED BEARING

FLANGE BEARING

1шт.

12

41010800

NUT

HEXAGON NUT

3шт.

13

28650018

PLATE

SEALING PLATE 2

1шт.

14

28650101

PLATE

SEALING PLATE

1шт.

15

337475

NUT,M12, Cl 10

2шт.

16

28680179

TUBE

REEL PIPE 12' (S8)

1шт.

16

28680174

TUBE

REEL PIPE 14' (T7)

1шт.

16

28680166

TUBE

REEL PIPE 16' (S4)

1шт.

16

28680159

TUBE

REEL PIPE 18' (T8)

1шт.

16

28680151

TUBE

REEL PIPE 20' (F3)

1шт.

16

28680138

TUBE

REEL PIPE 22' (F4)

1шт.

17

45120700

MOTOR, HYDRAULIC

ORBIT MOTOR

1шт.

18

D45250700

CONNECTOR, ELEC

CONNECTOR CONNECTOR

2шт.

19

28650023

DRIVE

CHAIN DRIVE 5/8"-13T

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

28680013

DRIVE SPROCKET

SPROCKET

1шт.

22

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW

2шт.

23

42325700

CHAIN (AG)

ROLLER CHAIN

1шт.

24

28680087

CONDUIT

PROTECTING TUBE

1шт.

25

45728000

CLIP

CLIP

1шт.

26

43103400

KEY

KEY

1шт.

27

43103500

KEY

KEY

1шт.

28

42363200

CHAIN LINK

OFFSET LINK

1шт.

29

28761977

COVER

COVER

1шт.

30

45100022

PISTON ROD

PISTON ROD PACOMA

1шт.

31

45250000

FITTING

CONNECTOR PACOMA

2шт.

31

D45252800

CONNECTION

CONNECTOR PPT

2шт.

32

45100070

GASKET KIT

SEAL KIT PACOMA

1шт.

32

45110019

SEAL PACKAGE

SEAL KIT PPT

1шт.

32

45110083

SEAL PACKAGE

SEAL KIT SERTA

1шт.

44

20400505

SPACER

WASHER

1шт.

45

40408400

SCREW

HEXAGON SCREW

1шт.

46

20400414

WASHER

WASHER DIA.8.5/24.5X3

2шт.

47

41087500

NUT

LOCK NUT

6шт.

48

42363100

LINK

JOINT LINK

1шт.

49

28281626

BELLOWS

RUBBER BELLOWS +F.926971

1шт.

50

45050038

CLAMP

+F.926971

1шт.

51

45050038

CLAMP

RETAINER +F.926971, 3,6X203

1шт.
