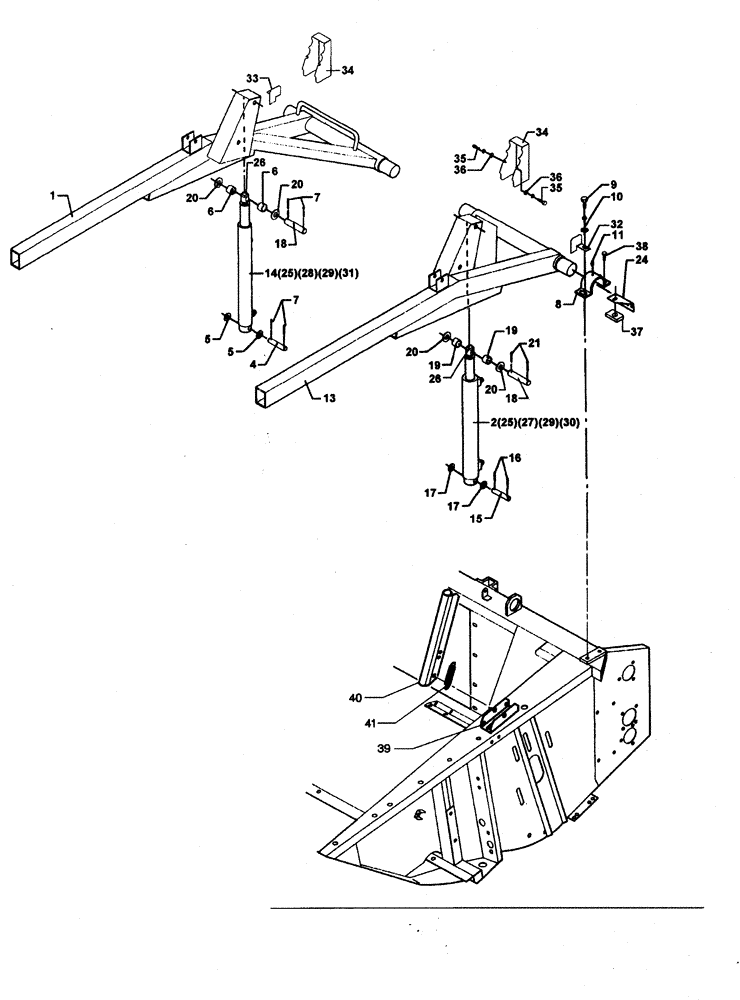

Запчасти Case IH 1030 (2-3[01]) - REEL SUSPENSION AND HYDRAULIC CYLINDERS (58) - ATTACHMENTS/HEADERS

1

38283302

FRAME

REEL FRAME RIGHT (E4)

1шт.

1

38283816

ARM

REEL FRAME RIGHT (F4)

1шт.

2

45100066

HYDRAULIC CYLINDER

REEL CYLINDER DIA.35

1шт.

4

28280236

SPLIT PIN/SAFETY PIN

PIN

1шт.

5

20400518

SPACER

WASHER

2шт.

6

28751140

BUSHING

SPACER BUSH

2шт.

7

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

4шт.

8

38283300

CLAMP BRACKET

BEARING SHELL

2шт.

9

40410800

SCREW,Hex, M12 x 25mm, Cl 8.8

HEXAGON SCREW

2шт.

10

20400424

WASHER

WASHER

2шт.

11

43001500

LUBE NIPPLE

GREASE NIPPLE

2шт.

13

38283301

FRAME

REEL FRAME LEFT (E4)

1шт.

13

38283817

ARM

REEL FRAME LEFT (F4)

1шт.

14

45100067

CYLINDER

REEL CYLINDER DIA. 25

1шт.

15

28280236

SPLIT PIN/SAFETY PIN

PIN

1шт.

16

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

2шт.

17

20400518

SPACER

WASHER

2шт.

18

28280237

SPLIT PIN/SAFETY PIN

PIN

2шт.

19

28751140

BUSHING

SPACER BUSH

2шт.

20

20400520

SPACER

SPACER

4шт.

21

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

4шт.

24

38283251

BRACKET

GUARD RETAINER

1шт.

25

41042700

NUT

HEXAGON NUT PACOMA

2шт.

26

45100044

HEAD

PISTON HEAD PACOMA

2шт.

27

45100016

PISTON ROD

PISTON ROD PACOMA

1шт.

28

45100017

PISTON ROD

PISTON ROD PACOMA

1шт.

29

D45252800

CONNECTION

CONNECTOR

3шт.

30

45100031

GASKET

GASKET KIT PACOMA

1шт.

30

45110030

SEAL PACKAGE

SEAL KIT PPT

1шт.

30

45110089

SEAL PACKAGE

SEAL KIT SERTA

1шт.

31

45100032

GASKET KIT

SEAL KIT PACOMA

1шт.

31

45110022

SEAL PACKAGE

SEAL KIT PPT

1шт.

31

45110090

GASKET

SEAL KIT SERTA

1шт.

32

38680025

ANGLE

ELBOW, LH F.926971

1шт.

33

38680024

ANGLE

ELBOW, RH F.926971

1шт.

34

38281518

PROTECTOR

COVER GUARD F.926971

2шт.

35

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW F.926971

4шт.

36

20400404

WASHER

WASHER F.926971

4шт.

37

28283835

SUPPORT

DOG +F.928659

2шт.

38

40410900

SCREW,Hex, M12 x 30mm, Cl 8.8

HEXAGON SCREW +F.928659

2шт.

39

28685027

CONSOLE

1шт.

40

28685015

STAND

1шт.

41

28710853

SPRING

1шт.
