Запчасти Case IH 1030 (2-2[01]) - REEL - LEFT HAND (58) - ATTACHMENTS/HEADERS

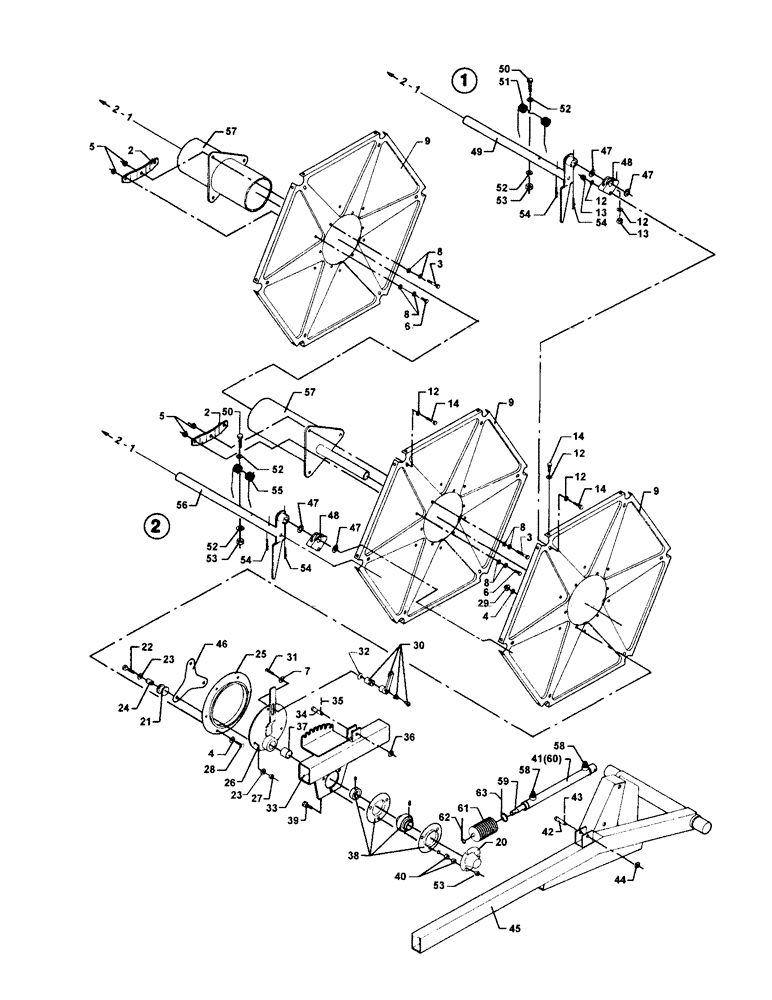

Схема запчастей Case IH 1030 - (2-2[01]) - REEL - LEFT HAND (58) - ATTACHMENTS/HEADERS
14
57
29
31
12
8
57
35
56
59
36
7
12
51
47
13
60
4
25
49
21
50
6
3
9
48
54
63
50
5
53
37
8
32
34
12
52
54
38
47
48
9
24
14
13
3
46
20
8
41
9
44
62
23
6
2
14
40
52
54
5
12
47
58
52
8
45
52
4
53
55
42
22
61
53
27
26
28
54
43
23
58
2
47
39
12
30
33

Артикул

Название

Примечание

Количество

2

28660051

DETENT

CLAMP

6шт.

3

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW

1шт.

4

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

5

41087500

NUT

LOCK NUT +F.931503

1шт.

6

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

HEXAGON SCREW

1шт.

7

20400518

SPACER

WASHER

1шт.

8

20400413

WASHER

WASHER +F.931503, DIA8.4/16X1.6

1шт.

9

28680240

SHEET ASSY.

REEL PLATE +F.931664

3шт.

12

20400403

WASHER

STEEL WASHER +F.931869

1шт.

13

41087400

LOCK NUT

LOCK NUT

1шт.

14

40402700

SCREW,Hex, M6 x 15mm, Cl 8.8

HEXAGON SCREW +F.931869

1шт.

20

28761977

COVER

COVER

1шт.

21

28660005

ROLLER

GUIDE ROLLER

3шт.

22

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

HEXAGON SCREW

3шт.

23

20400416

WASHER

WASHER DIA.10.5/30X2.5

3шт.

24

28660143

BUSHING

BUSH

3шт.

25

28660036

FLANGE

GUIDE RING

1шт.

26

28680097

PLATE ASSY.

ECCENTRIC PLATE INC.POS.37

1шт.

27

41087600

LOCK NUT

LOCK NUT +F.52265

3шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

+F.931313

6шт.

29

41087500

NUT

LOCK NUT +F.931313

6шт.

30

43387500

LEVER

TIGHTENING LEVER

1шт.

31

40070100

SCREW,M12 x 25mm

SCREW

1шт.

32

20400426

WASHER

WASHER DIA. 13/24X2.5

1шт.

33

28680054

BRACKET

BEARING PART LEFT

1шт.

34

28280382

SPLIT PIN/SAFETY PIN

PIN

1шт.

35

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

36

20400505

SPACER

WASHER

1шт.

37

43338200

BUSHING

LINING DIA. 35/39X3

1шт.

38

41707800

FLANGED BEARING

FLANGE BEARING

1шт.

39

40407800

SCREW,Hex, M10 x 30mm, Cl 8.8

HEXAGON SCREW

3шт.

40

41010800

NUT

HEXAGON NUT

3шт.

41

45100028

JACK BODY

REEL CYLINDER DIA. 25/16

1шт.

42

28280383

PIN

PIN

1шт.

43

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

44

20400471

WASHER

WASHER DIA. 10.5/20X2

1шт.

45

38283301

FRAME

REEL FRAME LEFT (E4)

1шт.

45

38285025

ARM ASSY.

REEL FRAME LEFT (F4)

1шт.

46

28680120

PLATE

ECCENTRIC PLATE

1шт.

47

20400586

WASHER

WASHER

1шт.

48

28680117

BEARING CARRIER

BEARING

1шт.

49

28680178

SHAFT

REEL TINE BAR I (S8)

3шт.

49

28680170

SHAFT

REEL TINE BAR I (T7)

3шт.

49

28680168

SHAFT

REEL TINE BAR I (S4)

3шт.

49

28680153

SHAFT

REEL TINE BAR I LH (T8)

3шт.

49

28680147

SHAFT

REEL TINE BAR I, LE (F3)

3шт.

49

28680142

SHAFT

REEL TINE BAR I, L. (F4)

3шт.

50

40423900

SCREW,Hex, M8 x 50mm, Cl 8.8

HEXAGON SCREW

1шт.

51

28680130

TINE,Coiled, 2 Prongs

REEL SPRING

1шт.

52

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

53

41087500

NUT

LOCK NUT

1шт.

54

41411100

PIN

SPLIT PIN

1шт.

55

28680131

TINE

REEL SPRING

3шт.

56

28680176

SHAFT

REEL TINE BAR II (S8)

3шт.

56

28680171

SHAFT

REEL TINE BAR II (T7)

3шт.

56

28680167

SHAFT

REEL TINE BAR II (S4)

3шт.

56

28680152

SHAFT

REEL TINE BAR II LH (T8)

3шт.

56

28680148

SHAFT

REEL TINE BAR II, L (F3)

3шт.

56

28680140

SHAFT

REEL TINE BAR II, L (F4)

3шт.

57

28680179

TUBE

REEL PIPE 12' (S8)

1шт.

57

28680174

TUBE

REEL PIPE 14' (T7)

1шт.

57

28680166

TUBE

REEL PIPE 16' (S4)

1шт.

57

28680159

TUBE

REEL PIPE 18' (T8)

1шт.

57

28680151

TUBE

REEL PIPE 20' (F3)

1шт.

57

28680138

TUBE

REEL PIPE 22' (F4)

1шт.

58

45250000

FITTING

CONNECTOR PACOMA

2шт.

58

D45252800

CONNECTION

CONNECTOR PPT

2шт.

59

45100021

PISTON ROD

PISTON ROD PACOMA

1шт.

60

45100080

GASKET KIT

SEAL KIT PACOMA

1шт.

60

45110020

SEAL PACKAGE

SEAL KIT PPT

1шт.

60

45110084

SEAL PACKAGE

SEAL KIT SERTA

1шт.

61

28281626

BELLOWS

RUBBER BELLOWS +F.926971

1шт.

62

45050038

CLAMP

+F.926971

1шт.

63

45050037

CLAMP

RETAINER +F.926971, 3,6X203

1шт.

Выбрано товаров: 74
