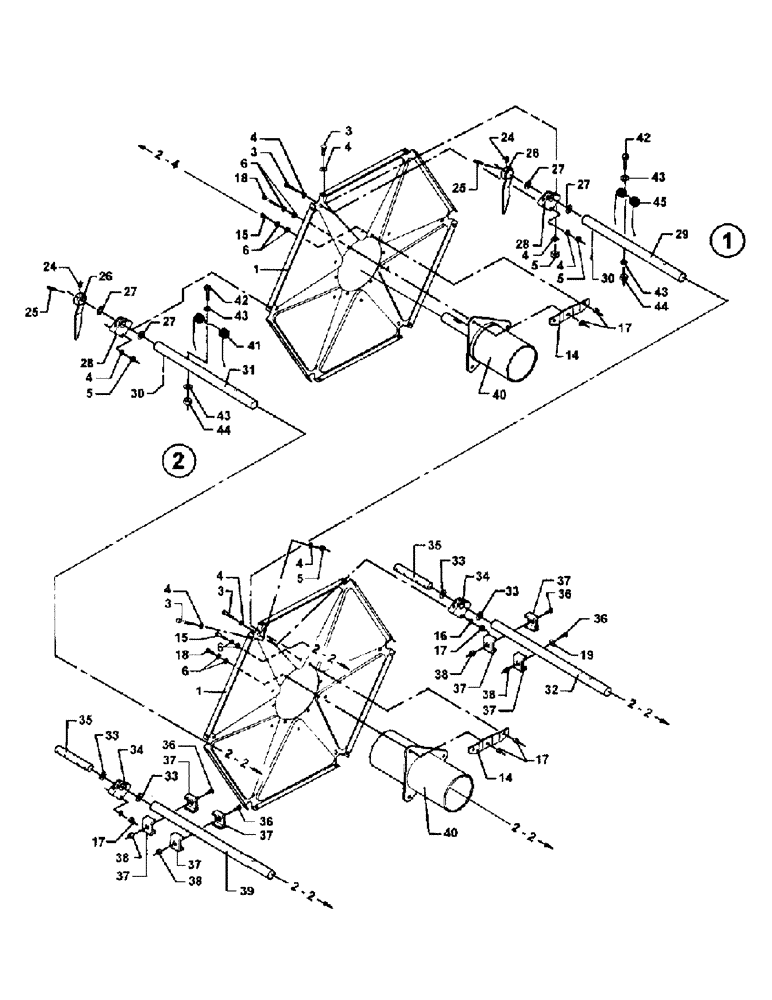

Запчасти Case IH 1030 (2-1[01]) - REEL - RIGHT HAND (58) - ATTACHMENTS/HEADERS

1

28680240

SHEET ASSY.

REEL PLATE +F.931664

2шт.

3

40402700

SCREW,Hex, M6 x 15mm, Cl 8.8

HEXAGON SCREW +F.931869

1шт.

4

20400403

WASHER

STEEL WASHER +F.931869

1шт.

5

41087400

LOCK NUT

LOCKNUT

1шт.

6

20400413

WASHER

WASHER +F.931503, DIA. 8.4/16X1.6

1шт.

14

28660051

DETENT

CLAMP

6шт.

15

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

HEXAGON SCREW

1шт.

16

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

17

41087500

NUT

LOCK NUT +F.931503

1шт.

18

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW

1шт.

19

20400507

WASHER

WASHER (G3)

6шт.

24

D40630900

SCREW

THREADED PIN T.924383

6шт.

24

40632000

SCREW,M8 x 10mm

THREADED PIN F.924384

6шт.

25

42614300

SPLIT PIN/SAFETY PIN

TIGHTENING PIN

6шт.

26

28680107

CLAW

REEL SPIKE RH

6шт.

27

20400586

WASHER

WASHER

1шт.

28

28680117

BEARING CARRIER

BEARING

1шт.

29

28680178

SHAFT

REEL TINE BAR I (S8)

3шт.

29

28680170

SHAFT

REEL TINE BAR I (T7)

3шт.

29

28680168

SHAFT

REEL TINE BAR I (S4)

3шт.

29

28680154

SHAFT

REEL TINE BAR I RH (T8)

3шт.

29

28680145

SHAFT

REEL TINE BAR I (70)

3шт.

30

41411100

PIN

SPLIT PIN

1шт.

31

28680176

SHAFT

REEL TINE BAR II (S8)

3шт.

31

28680171

SHAFT

REEL TINE BAR II (T7)

3шт.

31

28680167

SHAFT

REEL TINE BAR II (S4)

3шт.

31

28680156

SHAFT

REEL TINE BAR II RH (T8)

3шт.

31

28680141

SHAFT

REEL TINE BAR R. II (70)

3шт.

32

28680142

SHAFT

REEL TINE BAR I, L. (F4)

3шт.

32

28680147

SHAFT

RELL TINE BAR I, LE (F3)

3шт.

32

28680153

SHAFT

REEL TINE BAR I LH (T8)

3шт.

33

20400585

WASHER

WASHER (G3)

12шт.

34

28680132

BEARING CARRIER

BEARING (G3), DIA. 26.3

6шт.

35

28680139

CROSS SHAFT

INTERMEDIATE PIN (G3)

6шт.

36

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

HEXAGON SCREW (G3)

24шт.

37

28660035

CINTRE

BOW BOW (G3)

42шт.

38

41087600

LOCK NUT

LOCK NUT (G3)

24шт.

39

28680140

SHAFT

REEL TINE BAR II, L (F4)

3шт.

39

28680148

SHAFT

REEL TINE BAR II, L (F3)

3шт.

39

28680152

SHAFT

REEL TINE BAR II LH (T8)

3шт.

40

28680179

TUBE

REEL PIPE 12' (S8)

1шт.

40

28680174

TUBE

REEL PIPE 14' (T7)

1шт.

40

28680166

TUBE

REEL PIPE 16' (S4)

1шт.

40

28680159

TUBE

REEL PIPE 18' (T8)

1шт.

40

28680151

TUBE

REEL PIPE 20' (F3)

1шт.

40

28680138

TUBE

REEL PIPE 22' (F4)

1шт.

41

28680130

TINE,Coiled, 2 Prongs

REEL SPRING

1шт.

42

40423900

SCREW,Hex, M8 x 50mm, Cl 8.8

HEXAGON SCREW

1шт.

43

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

44

41087500

NUT

LOCK NUT

1шт.

45

28680131

TINE

REEL SPRING

3шт.
