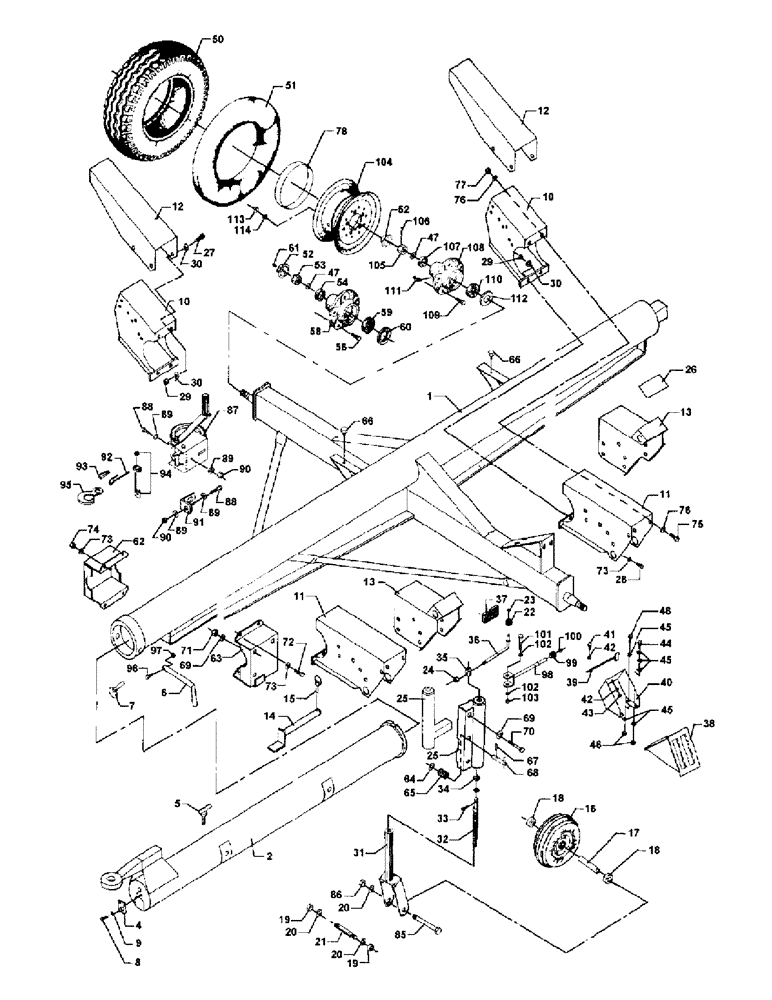

Запчасти Case IH 1030 (1-07[01]) - TABLE TRAILER (58) - ATTACHMENTS/HEADERS

1

28283658

HITCH ASSY, TRAILER

TABLE TRAILER

1шт.

1

28283961

HITCH ASSY, TRAILER

TABLE TRAILER (B6)

1шт.

2

28283668

BAR

DRAW BAR

1шт.

4

28250748

SUPPORT

CABLE SUPPORT

1шт.

5

28283634

SCREW

WING SCREW T.922466

1шт.

6

28283633

LARGE PIN

PIN, LARGE SPLIT BOLT

1шт.

7

41446200

PIN

SPLIT PIN T.927792

1шт.

8

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW

2шт.

9

20400404

WASHER

WASHER

2шт.

10

28283675

SUPPORT

BRACKET

2шт.

11

28283676

SUPPORT

BRACKET

2шт.

12

28283678

SUPPORT

SUPPORT PROFIL FRON

2шт.

13

28283683

SUPPORT

SUPPORT PROFIL REAR

2шт.

14

28283693

LARGE PIN

PIN, LARGE BOLT

2шт.

15

41446200

PIN

SPLIT PIN

2шт.

16

46721700

WHEEL ASSY.

WHEEL

1шт.

17

28250317

BUSHING

BUSH

1шт.

18

28250305

SPACER

SPACER BUSH

2шт.

19

100020

NUT,M16 x 2.0, Cl 8

HEXAGON T.926041

2шт.

20

20400459

WASHER

WASHER DIA. 17/30X3

2шт.

21

28250315

TRUNNION

JOURNAL T.926041

1шт.

22

28200609

BALL

BACELIT BALL (E4)

1шт.

23

20400466

WASHER

WASHER (E4), DIA. 5,3/15X1,2

1шт.

24

41087700

NUT

LOCK NUT

1шт.

25

28283635

TUBE

OUTER PIPE T.922466

1шт.

25

28284035

TUBE

SPARE PART OUTER PIPE F.922467

1шт.

26

49138600

DECAL

YELLOW REFLEX

1шт.

27

40410900

SCREW,Hex, M12 x 30mm, Cl 8.8

HEXAGON SCREW

16шт.

28

40411100

SCREW,Hex, M12 x 40mm, Cl 8.8

HEXAGON SCREW

4шт.

29

41087700

NUT

LOCK NUT

20шт.

30

20400423

WASHER

WASHER DIA. 13/37X3

32шт.

31

28250340

PIPE

INNER TUBE

1шт.

32

28250337

SPINDLE

SPINDLE

1шт.

33

42612000

SPLIT PIN/SAFETY PIN

TIGHTENING

1шт.

34

41597100

BALL BEARING

BALL BEARING

1шт.

35

28250356

HUB

HUB

1шт.

36

28250327

LEVER

LEVER (E4)

1шт.

37

45084600

REFLECTOR

REFLEX

6шт.

38

45907200

WEDGE

WEDGE (LL)

2шт.

39

28260477

HOLDER

SPRING RETAINER (LL)

2шт.

40

28283963

SUPPORT

RETAINER (LL)

2шт.

41

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW (LL)

2шт.

42

20400404

WASHER

WASHER (LL)

4шт.

43

41087400

LOCK NUT

LOCK NUT (LL)

2шт.

44

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW (LL)

4шт.

45

20400413

WASHER

WASHER (LL), DIA. 8.4/16X1.6

28шт.

46

41087500

NUT

LOCK NUT (LL)

4шт.

47

20400459

WASHER

WASHER DIA. 17/30X3

2шт.

48

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

(LL)

4шт.

28251629

WHEEL ASSY.

(DK), T.935963

2шт.

49

28251111

RIM

WHEEL RIM T.935963

2шт.

50

46734700

TYRE/TIRE

TYRE

2шт.

51

46708800

AIR TUBE

TUBE

2шт.

52

46723900

PLUG

SCREW CAP

2шт.

53

41087900

NUT

LOCK NUT

2шт.

54

41618200

BEARING, BALL

SPARE PART BALL BEARING

2шт.

56

40438200

SCREW,M12 x 1.5 x 36mm

HUB BOLT

10шт.

57

41021500

NUT

WHEEL NUT

10шт.

58

46724000

HUB

HUB HOUSING

2шт.

59

41618400

BEARING, BALL

BALL BEARING

2шт.

60

41582400

PACKING RING

SEAL

2шт.

61

43002500

NIPPLE, LUBE

NIPPLE GREASE NIPPLE

2шт.

62

28284043

SUPPORT

SPARE PART BRACKET F.922467

1шт.

63

28284048

SUPPORT

SPARE PART BRACKET F.922467

1шт.

64

28750035

SPACER

SPACER RING F.922467

1шт.

65

28700136

SPRING

SPRING F.922467

1шт.

66

43385200

SCREW

SPARE PART FINGERSCREW F.922467

2шт.

67

41410800

KEY

SPLIT PIN F.922467

1шт.

68

28250355

SPLIT PIN/SAFETY PIN

LOCK PIN F.922467

1шт.

69

20400523

SPACER

WASHER F.922467, DIA.21/37X3

2шт.

70

40418800

SCREW

SPARE PART HEXAGON SCREW F.922467

1шт.

71

41088100

NUT

LOCK NUT F.922467

1шт.

72

40411100

SCREW,Hex, M12 x 40mm, Cl 8.8

HEXAGON SCREW F.922467

1шт.

73

20400426

WASHER

WASHER F.922467, DIA.13/24X2.5

14шт.

74

41087700

NUT

LOCK NUT

2шт.

75

40435100

SCREW

HEXAGON SCREW

4шт.

76

28181284

WASHER

WASHER

8шт.

77

41087900

NUT

LOCK NUT

4шт.

78

46737500

STRIP

RIM BAND

2шт.

85

28281711

SCREW

BOLT +F.926042

1шт.

86

41087900

NUT

LOCK NUT +F.926042

1шт.

87

45906700

WINCH

TRAILERCAPSTAN (3)

1шт.

88

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW (3)

3шт.

89

20400506

SPACER

SPACER (3), DIA. 8.5/20X2,5

6шт.

90

41087500

NUT

LOCK NUT (3)

3шт.

91

28284042

ANGLE BAR

DRAW RING (3)

1шт.

28284143

HOOK

PIPE (3), POS.92-95

1шт.

92

43404300

CABLE

WIRE (3), 5M

1шт.

93

43409000

GUIDE

THIMBLE (3)

1шт.

94

43405900

CLIP

SPARE PART WIRE LOCK (3)

2шт.

95

43410400

HOOK

DRAW HOOK (3)

1шт.

96

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW F.927793

1шт.

97

41087500

NUT

LOCK NUT F.927793

1шт.

28281645

LEVER

HANDLE CPL (F4), POS. 98-103

1шт.

98

28281644

LEVER

HANDLE (F4)

1шт.

99

28200609

BALL

BACELIT BALL (F4)

1шт.

100

20400466

WASHER

WASHER (F4), DIA.5,3/15X1,2

1шт.

101

40428800

SCREW,Hex, M12 x 70mm, Cl 8.8

HEXAGON SCREW (F4)

1шт.

102

20400537

SPACER

WASHER (F4)

2шт.

103

41087700

NUT

LOCK NUT

1шт.

28284451

WHEEL ASSY.

WHEEL, CPL. F.925964

1шт.

104

28284450

RIM

WHEEL RIM, BOLTED F.925964

1шт.

105

41048700

NUT

CASTLE NUT F.925964

1шт.

106

41408800

LARGE PIN

PIN, LARGE SPLIT PIN F.925964

1шт.

107

41661100

BEARING, ROLLER

ROLLER BEARING F.925964

1шт.

108

46729200

HUB

HUB HOUSING F.925964

1шт.

109

46728300

SCREW

HUB BOLT F.925964

1шт.

110

41661300

ROLLER BEARING

ROLLER BEARING F.925964

1шт.

111

43001500

LUBE NIPPLE

GREASE NIPPLE F.925964

1шт.

112

46727400

SHAFT SEAL

SEAL F.925964

1шт.

113

41013000

NUT

HEXAGON NUT F.925964

1шт.

114

41111200

WASHER, LOCK

CIRCLIP F.925964

1шт.
