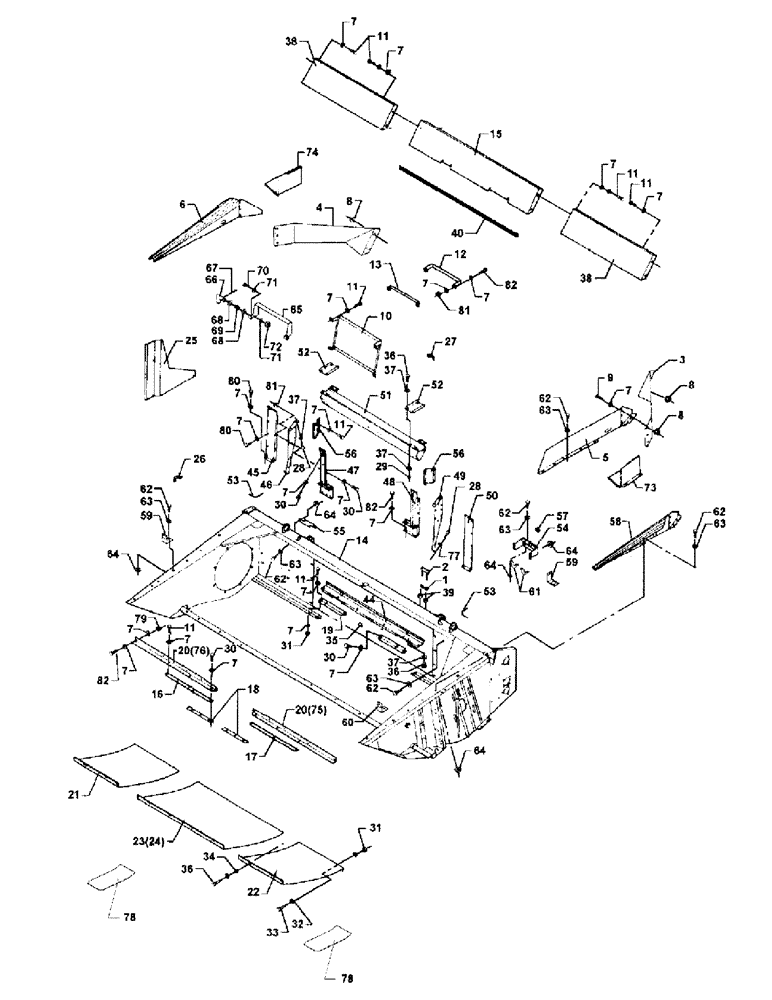

Запчасти Case IH 1030 (1-06[01]) - TABLE BODY AND GUARDS (58) - ATTACHMENTS/HEADERS

1

28280587

STOP

DOG

2шт.

2

28280570

SUPPORT

LOCK FITTINGS

2шт.

3

38283233

PROTECTION PLATE

SIDE GUARD HIGH

1шт.

4

38283232

PROTECTION PLATE

SIDE GUARD HIGH

1шт.

5

38280689

PANEL, SIDE

TABLE SIDE T.925030

1шт.

6

38283516

PANEL, SIDE

TABLE SIDE

1шт.

7

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

8

41013500

NUT

COMBI NUT

1шт.

9

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

HEXAGON SCRE

1шт.

10

38251573

HOLDER

RETAINER (V7)

1шт.

10

38281024

RETAINER

CROP LIFTER RETAINE (G3)

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

38283622

HOLDER

CROP LIFTER RETAINE (S8)

1шт.

13

38283623

HOLDER

CROP LIFTER RETAINE (S8)

1шт.

14

38283687

CUTTERBAR

TABLE (S8)

1шт.

14

38283688

CUTTERBAR

TABLE (T7)

1шт.

14

38283689

CUTTERBAR

TABLE (S4)

1шт.

14

38283690

CUTTERBAR

TABLE (T8)

1шт.

14

38283691

CUTTER BAR

TABLE (F3)

1шт.

14

38283858

FRAME

TABLE (F4)

1шт.

15

38283236

PROTECTION PLATE

HIGH REAR GUARD

1шт.

16

28283141

DEFLECTOR

DEFLECTOR PLATE (T8)

1шт.

16

28283143

PLATE

DEFLECTOR PLATE (F3)

1шт.

16

28283145

DEFLECTOR

DEFLECTOR PLATE (S8)

1шт.

16

28283410

DEFLECTOR

DEFLECTOR PLATE (T7)

1шт.

16

28283411

DEFLECTOR

DEFLECTOR PLATE (S4)

1шт.

17

28283140

DEFLECTOR

DEFLECTOR PLATE (T8)

1шт.

17

28283142

DEFLECTOR

DEFLECTOR PLATE (F3)

1шт.

17

28283144

DEFLECTOR

DEFLECTOR PLATE (S8)

1шт.

17

28283412

DEFLECTOR

DEFLECTOR PLATE (T7)

1шт.

17

28283413

DEFLECTOR

DEFLECTOR PLATE (S4)

1шт.

18

28283138

DEFLECTOR

DEFLECTOR

2шт.

19

28283408

DEFLECTOR

DEFLECTOR +F.928818

2шт.

20

28283135

DEFLECTOR

DEFLECTOR ANGLE (S8)

2шт.

20

28283136

DEFLECTOR

DEFLECTOR ANGLE (T8)

2шт.

20

28283137

DEFLECTOR

DEFLECTOR ANGLE (F3)

2шт.

20

28283339

DEFLECTOR

DEFLECTOR ANGLE (T7)

2шт.

20

28283340

DEFLECTOR

DEFLECTOR ANGLE (S4)

2шт.

21

28283253

WEAR PLATE

WEARING PLATE, RIGH

1шт.

22

28283254

WEAR PLATE

WEARING PLATE LEFT

1шт.

23

28283256

WEAR PLATE

WEARING PLATE (S8)

2шт.

23

28283256

WEAR PLATE

WEARING PLATE (T7)

1шт.

23

28283256

WEAR PLATE

WEARING PLATE (S4)

3шт.

23

28283256

WEAR PLATE

WEARING PLATE (T8)

2шт.

23

28283256

WEAR PLATE

WEARING PLATE (F3)

4шт.

23

28283256

WEAR PLATE

WEARING PLATE (F4)

3шт.

24

28283255

WEAR PLATE

WEARING PLATE (T7)

2шт.

24

28283255

WEAR PLATE

WEARING PLATE (T8)

2шт.

24

28283255

WEAR PLATE

WEARING PLATE (F4)

2шт.

25

28281665

HOOD

SIDE GUARD

1шт.

26

28281042

HOLDER

RETAINER

1шт.

27

28281043

SUPPORT

BRACKET

1шт.

28

40407700

SCREW,Hex, M10 x 15mm, Cl 8.8

HEXAGON SCREW +F.929460

8шт.

29

41087600

LOCK NUT

LOCK NUT +F.929460

12шт.

30

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW

6шт.

31

41087500

NUT

LOCK NUT

10шт.

32

20400506

SPACER

SPACER DIA. 8.5/20X2.5

20шт.

33

40405300

CAPSCREW,Hex, M8 x 40mm, Cl 8.8

HEXAGON SCREW

10шт.

34

20400419

WASHER

WASHER

14шт.

35

45745300

PLUG

PLUG +F.929460

1шт.

36

40407900

SCREW,Hex, M10 x 35mm, Cl 8.8

HEXAGON SCREW +F.929460

12шт.

37

20400415

WASHER

WASHER

16шт.

38

38283237

PROTECTION PLATE

REAR GUARD (T8)

2шт.

38

38283238

PROTECTION PLATE

REAR GUARD (F3)

2шт.

38

38283427

PROTECTION PLATE

REAR GUARD (S4)

2шт.

38

38283428

PROTECTION PLATE

REAR GUARD (T7)

2шт.

38

38283429

PROTECTION PLATE

REAR GUARD (S8)

2шт.

38

38283862

PROTECTION PLATE

REAR GUARD (F4)

2шт.

39

41087900

NUT

LOCK NUT

4шт.

40

28283557

GASKET

TENSION LIST

1шт.

44

28283121

PROFILE

PROFILE

1шт.

45

28283084

LARGE PLATE

PLATE, LARGE REAR PLATE

1шт.

46

28283113

LARGE PLATE

PLATE, LARGE SIDE PLATE RIGHT

1шт.

47

28283565

COVER

COVER RIGHT

1шт.

48

28283564

COVER

COVER PLATE LEFT

1шт.

49

28283114

LARGE PLATE

PLATE, LARGE SIDE PLATE LEFT

1шт.

50

28283083

LARGE PLATE

PLATE, LARGE REARPLATE LEFT

1шт.

51

28283126

SUPPORT

SUPPORT PROFILE

1шт.

52

38283195

LARGE PLATE

PLATE, LARGE WASHER PLATE

2шт.

53

44735900

PROTECTION STRIP

TENSION LIST 0.2

1шт.

54

28283567

SUPPORT

BRACKET

1шт.

55

28283570

LARGE PLATE

PLATE, LARGE COVER PLATE

1шт.

56

28283120

PLATE

GUIDE PLATE

2шт.

57

44732400

BUSHING

RUBBER GRUMMET

3шт.

58

38283938

SIDE PLATE

ROUND. TABLE SIDE L (DF)

1шт.

59

28780381

RETAINER

RETAINER (AZ)

2шт.

60

28780381

RETAINER

RETAINER (AY)

1шт.

61

45147500

RETAINER

RETAINER

2шт.

62

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW

1шт.

63

20400404

WASHER

WASHER

1шт.

64

41013400

NUT

COMBI NUT

1шт.

65

38281627

PROTECTOR

PROTECTION GUARD (E9), F.926971

1шт.

65

38281628

PROTECTOR

PROTECTION GUARD (V7), F.926971

1шт.

65

38281629

PROTECTOR

PROTECTION GUARD (S8), F.926971

1шт.

66

28281625

LEVER

HANDLE F.926971

2шт.

67

41404400

KEY

SPLIT PIN F.926971

2шт.

68

20400404

WASHER

WASHER F.926971

4шт.

69

45667300

SPRING

PRESSURE SPRING F.926971

2шт.

70

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW F.926971

2шт.

71

20400506

SPACER

SPACER F.926971, DIA. 8.5/20X2.5

4шт.

72

41087500

NUT

LOCKNUT

1шт.

73

28281483

EXTENSION

EXTENSION PIECE LEF (LJ)

1шт.

74

28281482

EXTENSION

EXTENSION PIECE R. (LJ)

1шт.

75

28283520

DEFLECTOR

DEFLECTOR ANGLE LH (F4)

1шт.

76

28283521

DEFLECTOR

DEFLECTOR ANGLE RH (F4)

1шт.

77

20400416

WASHER

WASHER +F.929460, DIA. 10.5/30X2.5

8шт.

78

28284101

WEAR PLATE

VEARING PICE +F.929460

2шт.

79

43362

NUT,M8 x 1.25, Cl 10

+F.931869

1шт.

80

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

+F.931664

1шт.

81

41087500

NUT

LOCK NUT +F.931664

1шт.

82

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW +F.931869

1шт.

83

20400470

DISC

14шт.
