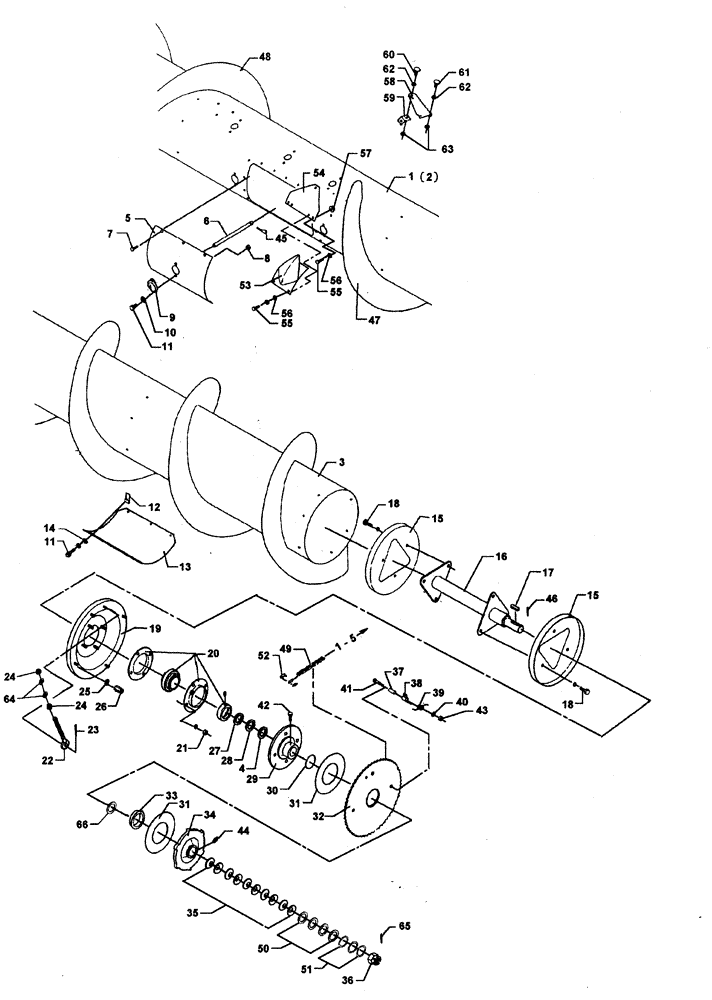

Запчасти Case IH 1030 (1-04[01]) - FEEDER DRUM 2 (58) - ATTACHMENTS/HEADERS

1

38283788

AUGER

FEEDER AUGER (S8)

1шт.

1

38283789

AUGER

FEEDER AUGER (T7)

1шт.

1

38283790

AUGER

FEEDER AUGER (S4)

1шт.

1

38283134

AUGER

FEEDER AUGER (T8)

1шт.

1

38283125

AUGER

FEEDER AUGER (F3)

1шт.

1

38283870

AUGER

FEEDER DRUM 22' (F4)

1шт.

2

28283012

TUBE

SHELL MIDDLE

1шт.

3

28283487

TUBE

SHELL LH 12' (S8)

1шт.

3

28283793

TUBE

SHELL LH 14' (T7)

1шт.

3

28283794

TUBE

SHELL LH 16' (S4)

1шт.

3

28283033

TUBE

SHELL LH 18' (T8)

1шт.

3

28283031

TUBE

SHELL LEFT 20' (F3)

1шт.

3

28283875

TUBE

SHELL, LEFT 22' (F4)

1шт.

4

28280957

SPACER, RING

SPACER RING (5), 2 MM

1шт.

5

38283078

COVER

COVER

1шт.

6

28283815

FINGER

CARRIER SPIKE

15шт.

7

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW

1шт.

8

41087400

LOCK NUT

LOCK NUT

1шт.

9

28283060

BUSHING

BUSH

15шт.

10

20400404

WASHER

WASHER

1шт.

11

40402600

SCREW,Hex, M6 x 20mm, Cl 8.8

HEXAGON SCREW

1шт.

12

43428200

NUT

NUT

6шт.

13

38283070

COVER

COVER

1шт.

14

20400470

DISC

WASHER DIA. 6.4/18X1.6

6шт.

15

28280014

PLATE

HUB PLATE

2шт.

16

28283007

DRIVE SHAFT

DRIVE SHAFT

1шт.

17

43106800

KEY

KEY

1шт.

18

40407600

SCREW,Hex, M10 x 20mm, Cl 8.8

HEXAGON SCREW

6шт.

19

38283053

SHEET

END PLATE, LH

1шт.

20

41716500

BEARING

FLANGE BEARING

1шт.

21

337475

NUT,M12, Cl 10

4шт.

22

28281387

EYEBOLT

BOLT, EYE TENSION BOLT

1шт.

23

41408900

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

24

41010800

NUT

HEXAGON NUT +F.929460

2шт.

25

20400415

WASHER

WASHER

4шт.

26

28280729

NUT

HEXAGON NUT

4шт.

27

28280956

SPACER, RING

SPACER RING (5), 1 MM

1шт.

28

28281029

SPACER, RING

SPACER RING (5), 4 MM

1шт.

29

28283004

WASHER

WASHER

1шт.

30

D45481600

O-RING

SEAL RING

1шт.

31

45904300

DISC

CLUTCH FACING

2шт.

32

28283152

PINION

SPROCKET

1шт.

33

28283000

BUSHING

BUSH

1шт.

34

28283003

FLANGE

WASHER

1шт.

35

41112400

WASHER

DISC SPRING

10шт.

36

41054100

NUT

CASTLE NUT

1шт.

37

28284131

SPACER PIPE

1шт.

38

28281432

BLOCK DRIVER

CARRIER

1шт.

39

28283006

SPRING

SPRING

1шт.

40

20400507

WASHER

WASHER

1шт.

41

40426100

SCREW,Hex, M10 x 55mm, Cl 8.8

HEXAGON SCREW

1шт.

42

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW

1шт.

43

41087600

LOCK NUT

LOCK NUT

1шт.

44

43001500

LUBE NIPPLE

GREASE NIPPLE

1шт.

45

28283853

SPLIT PIN

HAIR PIN SPLIT

15шт.

46

41408800

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

47

28281448

SPIRAL

SPIRAL (S8)

1шт.

47

28280988

SPIRAL

SPIRAL (T7)

1шт.

47

28280052

SPIRAL

SPIRAL (S4)

1шт.

47

28280051

SPIRAL

SPIRAL (T8)

1шт.

47

28280005

SPIRAL

SPIRAL (F3)

1шт.

47

28280067

SPIRAL

SPIRAL (F4)

1шт.

48

28281449

SPIRAL

SPIRAL (S8)

1шт.

48

28280989

SPIRAL

SPIRAL (T7)

1шт.

48

28280054

SPIRAL

SPIRAL (S4)

1шт.

48

28280053

SPIRAL

SPIRAL (T8)

1шт.

48

28280006

SPIRAL

SPIRAL (F3)

1шт.

48

28280068

BRACKET

SPARE PART SPIRAL (F4)

1шт.

49

42332900

CHAIN (AG)

CHAIN 98

1шт.

50

20400520

SPACER

SPACER

4шт.

51

20400523

SPACER

WASHER DIA. 21/37X3

3шт.

52

42365100

CHAIN LINK

JOINT LINK

1шт.

53

38283294

FINGER

FIXED FINGER

4шт.

54

28281694

LARGE PLATE

PLATE, LARGE THREADED PLATE

4шт.

55

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

56

20400506

SPACER

SPACER DIA. 8.2/20X2.5

20шт.

57

41087500

NUT

LOCK NUT

12шт.

58

28281194

EXTENSION

AUGER EXTENSION (3)

1шт.

59

28281195

ANGLE

ANGLE IRON (3)

1шт.

60

40684800

SCREW,M8 x 25mm, Cl 10.9

SCREW (3)

2шт.

61

40685000

SCREW,M8 x 16mm, Cl 8.8

SCREW (3)

2шт.

62

20400506

SPACER

SPACER (3), DIA. 8.5/20X2.5

4шт.

63

41087500

NUT

LOCK NUT (3)

4шт.

64

20400416

WASHER

WASHER +F.929460, DIA. 10.5/30X2.5

2шт.

65

41405900

LARGE PIN

PIN, LARGE

1шт.

66

41653500

SPACER, RING

2шт.
