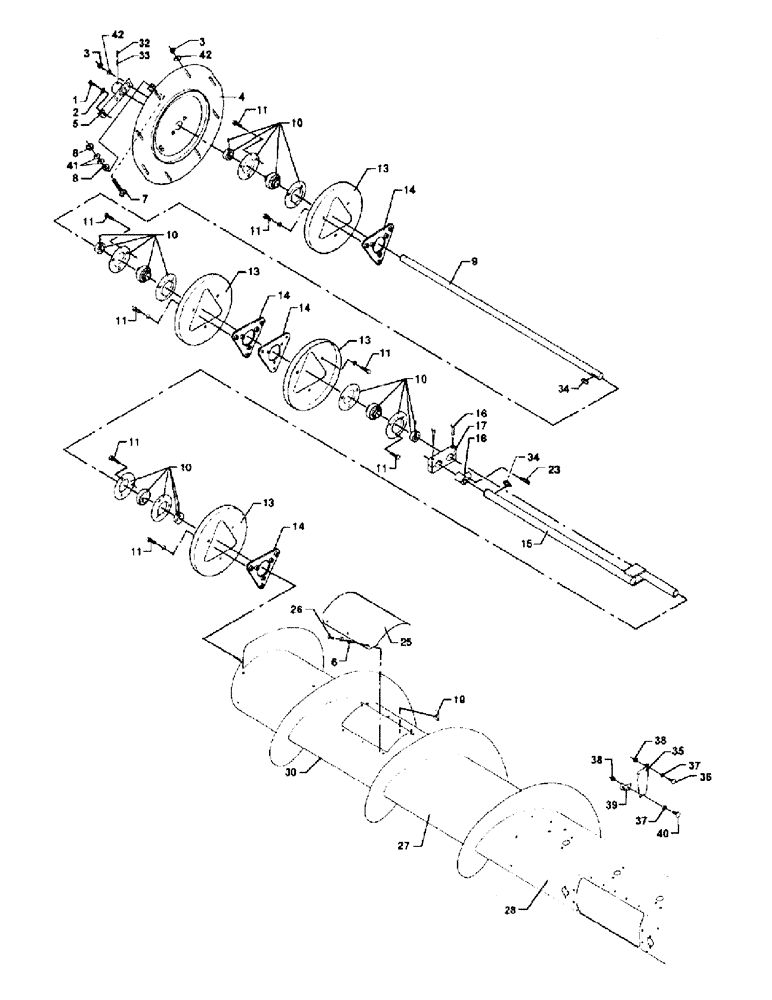

Запчасти Case IH 1030 (1-03[01]) - FEEDER DRUM 1 (58) - ATTACHMENTS/HEADERS

1

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

HEXAGON SCREW

1шт.

2

20400506

SPACER

SPACER DIA. 8.5/20X2.5

1шт.

3

41087500

NUT

LOCK NUT +F.931503

10шт.

4

38280040

PLATE

END PLATE R.

1шт.

5

28283029

SUPPORT

ADJUSTING FITTINGS

1шт.

6

20400470

DISC

WASHER DIA. 6.4/18X1.6

6шт.

7

28211023

BOLT

ADJ. BOLT

1шт.

8

41087600

LOCK NUT

LOCK NUT +F.931503

2шт.

9

28283035

SHAFT

SHAFT 12' (S8)

1шт.

9

28283767

SHAFT

SHAFT 14' (T7)

1шт.

9

28283768

SHAFT

SHAFT 16' (S4)

1шт.

9

28283036

SHAFT

SHAFT 18' (T8)

1шт.

9

28283037

SHAFT

SHAFT 20' (F3)

1шт.

9

28283871

SHAFT

SHAFT 22' (F4)

1шт.

10

41707800

FLANGED BEARING

FLANGE BEARING (KQ)

4шт.

10

41707800

FLANGED BEARING

FLANGE BEARING (S3)

3шт.

11

40407900

SCREW,Hex, M10 x 35mm, Cl 8.8

HEXAGON SCREW

1шт.

13

28280014

PLATE

HUB PLATE (KQ)

4шт.

13

28280014

PLATE

HUB PLATE (S3)

3шт.

14

28283847

LARGE PLATE

PLATE, LARGE BEARING PLATE (KQ)

4шт.

14

28283847

LARGE PLATE

PLATE, LARGE BEARING PLATE (S3)

3шт.

15

28283016

SHAFT

CRANK SHAFT

1шт.

16

40426100

SCREW,Hex, M10 x 55mm, Cl 8.8

HEXAGON SCREW

2шт.

17

28283039

SHIN

CRANK ARM

1шт.

18

28251831

GUIDE

BEARING

15шт.

19

43428200

NUT

NUT

6шт.

23

28283853

SPLIT PIN

HAIR PIN SPLIT

15шт.

25

38283070

COVER

COVER

1шт.

26

40402600

SCREW,Hex, M6 x 20mm, Cl 8.8

HEXAGON SCREW

6шт.

27

38283788

AUGER

FEEDER AUGER (S8)

1шт.

27

38283789

AUGER

FEEDER AUGER (T7)

1шт.

27

38283790

AUGER

FEEDER AUGER (S4)

1шт.

27

38283134

AUGER

FEEDER AUGER (T8)

1шт.

27

38283125

AUGER

FEEDER AUGER (F3)

1шт.

27

38283870

AUGER

FEEDER DRUM 22' (F4)

1шт.

28

28283012

TUBE

SHELL MIDDLE

1шт.

30

28283488

TUBE

SHELL RH 12' (S8)

1шт.

30

28283792

TUBE

SHELL RH 14' (T7)

1шт.

30

28283795

TUBE

SHELL RH 16' (S4)

1шт.

30

28283032

TUBE

SHELL RH 18' (T8)

1шт.

30

28283034

TUBE

SHELL RIGHT 20' (F3)

1шт.

30

28283876

TUBE

SHELL RIGHT 22' (F4)

1шт.

32

42616400

PIN

TIGHTENING PIN

1шт.

33

42625300

SLOTTED PIN

TIGHTENING PIN

1шт.

34

43104700

KEY

KEY

2шт.

35

28281193

EXTENSION

AUGER EXTENSION (3)

1шт.

36

40684800

SCREW,M8 x 25mm, Cl 10.9

SCREW (3)

2шт.

37

20400506

SPACER

SPACER (3), DIA. 8.5/20X2.5

4шт.

38

41087500

NUT

LOCK NUT (3)

4шт.

39

28281195

ANGLE

ANGLE IRON (3)

1шт.

40

40685000

SCREW,M8 x 16mm, Cl 8.8

SCREW (3)

2шт.

41

20400471

WASHER

WASHER +F.929460, DIA. 10.5/20X2

1шт.

42

20400414

WASHER

WASHER +F.931503, DIA. 8.5/24.5X3

1шт.
