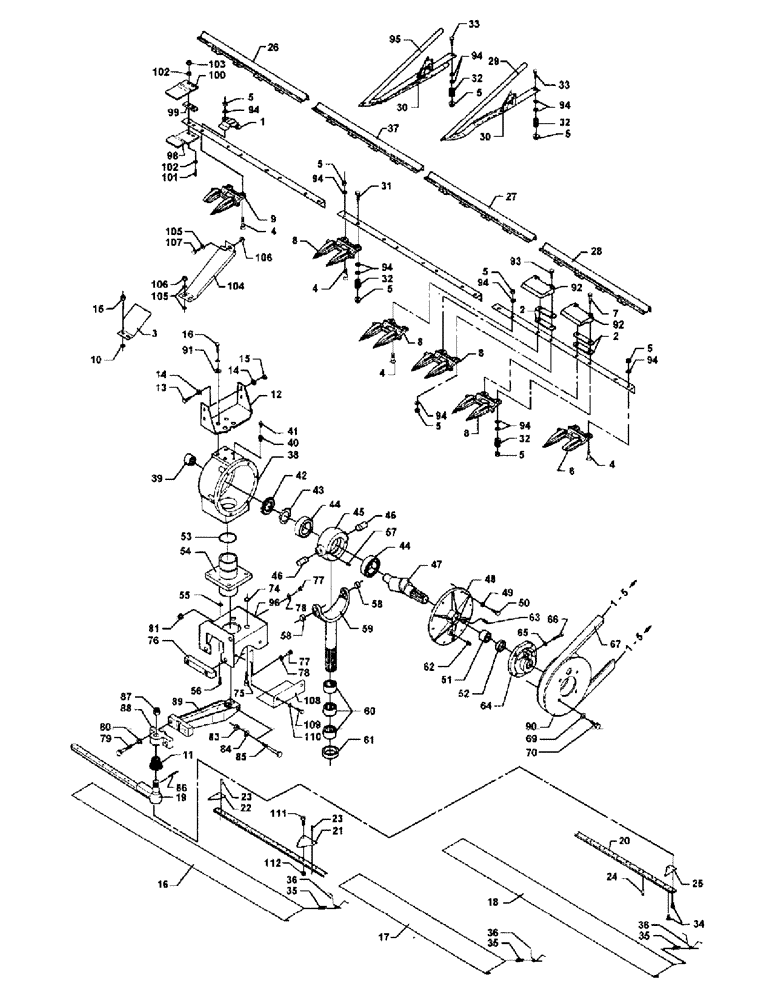

Запчасти Case IH 1030 (1-02[01]) - KNIVES AND FINGERS (58) - ATTACHMENTS/HEADERS

1

28283934

CLIP, KNIFE

KNIFE CLIP (S8)

11шт.

1

28283934

CLIP, KNIFE

KNIFE CLIP (T7)

13шт.

1

28283934

CLIP, KNIFE

KNIFE CLIP (S4)

15шт.

1

28283934

CLIP, KNIFE

KNIFE CLIP (T8)

17шт.

1

28283934

CLIP, KNIFE

KNIFE CLIP (F3)

19шт.

1

28283934

CLIP, KNIFE

KNIFE CLIP (F4)

21шт.

2

28230292

SHIM

SHIM

4шт.

3

38280809

PROTECTION PLATE

GUARD F. KNIFE T.926970

1шт.

4

40551500

SCREW

FINGER BOLT

1шт.

5

41010800

NUT

HEXAGON NUT

1шт.

6

44104700

FINGER

DOUBLE FINGER, LH +F.931962

1шт.

7

40067600

BOLT

SCREW

1шт.

8

44104500

FINGER

DOUBLE FINGER (S8), +F.931962

23шт.

8

44104500

FINGER

DOUBLE FINGER (T7), +F.931962

27шт.

8

44104500

FINGER

DOUBLE FINGER (S4), +F.931962

31шт.

8

44104500

FINGER

DOUBLE FINGER (T8), +F.931962

35шт.

8

44104500

FINGER

DOUBLE FINGER (F3), +F.931962

39шт.

8

44104500

FINGER

DOUBLE FINGER (F4), +F.931962

43шт.

9

44104600

FINGER

DOUBLE FINGER, RH +F.931962

1шт.

10

20400506

SPACER

SPACER T.926970, DIA. 8.5/20X2.5

2шт.

11

44120500

BELLOWS

SEAL CAP

1шт.

12

38283104

SUPPORT

BRACKET

1шт.

13

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW

4шт.

14

20400414

WASHER

WASHER DIA. 8.5/24.5X3

8шт.

15

41013500

NUT

COMBI NUT

1шт.

16

38230830

GUARD ASSY.

GARDE LAME (S3)

1шт.

16

38200314

GUARD ASSY.

KNIFE GUARD (S4)

1шт.

16

38230830

GUARD ASSY.

GARDE LAME (E7)

2шт.

16

38200738

GUARD ASSY.

KNIFE GUARD (F3)

1шт.

17

38230831

GUARD ASSY.

KNIFE GUARD (S3)

1шт.

17

38230831

GUARD ASSY.

KNIFE GUARD (70)

1шт.

18

38200738

GUARD ASSY.

KNIFE GUARD (DJ)

1шт.

18

38200314

GUARD ASSY.

KNIFE GUARD (F3)

1шт.

28283009

CUTTING BLADE

KNIFE CPL. 18' (T8)

2шт.

28283010

CUTTING BLADE

KNIFE CPL. 20' (F3)

2шт.

28283306

CUTTING BLADE

KNIFE CPL. 12' (S8)

2шт.

28283307

CUTTING BLADE

KNIFE CPL. 14' (T8)

2шт.

28283308

CUTTING BLADE

KNIFE CPL. 16' (S4)

2шт.

28283865

CUTTING BLADE

KNIFE CPL. 22' (F4)

2шт.

19

28283011

KNIFE HEAD

HEAD, KNIFE KNIFE HEAD

2шт.

20

28281488

KNIFE BACK

KNIFE BACK 12' (S8)

2шт.

20

28281489

KNIFE BACK

KNIFE BACK 14' (T7)

2шт.

20

28281490

KNIFE BACK

KNIFE BACK 16' (S4)

2шт.

20

28281491

KNIFE BACK

KNIFE BACK 18' (T8)

2шт.

20

28281492

KNIFE BACK

KNIFE BACK 20' (F3)

2шт.

20

28281493

KNIFE BACK

KNIFE BACK 22' (F4)

2шт.

21

44103700

KNIFE SECTION

SECTION, KNIFE KNIFE BLADE TOPSERR (5)

1шт.

22

44103800

KNIFE SECTION

SECTION, KNIFE HALF KNIFE BLADE RH

1шт.

23

41306100

RIVET

RIVET (5)

1шт.

24

41306200

RIVET

RIVET (5)

1шт.

25

44104000

KNIFE SECTION

SECTION, KNIFE HALF KNIFE BLADE LH

1шт.

26

38283701

STONEGUARD

STONE STOP

1шт.

27

38283703

STONEGUARD

STONE STOP (T7)

1шт.

27

38283705

STONEGUARD

STONE STOP (E7)

1шт.

27

38283706

STONEGUARD

STONE STOP (F3)

1шт.

28

38283702

STONEGUARD

STONE STOP

1шт.

29

49040200

CROP LIFTER

EAR LIFTER TYPE 2

1шт.

30

49040400

SPRING

LOCK SPRING

1шт.

31

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

HEXAGON SCREW

1шт.

32

49040600

ROLLER

ROLLER

1шт.

33

40426100

SCREW,Hex, M10 x 55mm, Cl 8.8

HEXAGON SCREW

1шт.

34

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW

2шт.

35

26500317

SPRING

SPRING

2шт.

36

28230841

SPRING

SPRING

2шт.

37

38283704

STONEGUARD

STONE STOP (DJ)

1шт.

28281067

CASE ASSY.

WOBBLE BOX CPL. POS.38-66

1шт.

38

44127800

HOUSING

HOUSING

1шт.

39

44128800

BEARING, NEEDLE

NEEDLE BEARING

1шт.

40

44129400

FITTING

CONNECTOR

1шт.

41

46116500

BLEEDER

BLEEKER VALVE

1шт.

42

44129100

NUT

NUT

1шт.

43

44129200

WASHER

WASHER

1шт.

44

41668400

BEARING, ROLLER

ROLLER BEARING

2шт.

45

44127900

HOUSING, BEARING

GEARBOX HOUSING

1шт.

46

44128000

JOURNAL

JOURNAL

2шт.

47

44129300

SHAFT

WOBBLE SHAFT

1шт.

48

44128200

COVER

COVER

1шт.

49

41100700

WASHER

WASHER

6шт.

50

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

51

41669700

BEARING, NEEDLE

NEEDLE BUSH

1шт.

52

45412000

SEAL

1шт.

53

45481500

O-RING

SEAL RING

1шт.

54

44128300

HOUSING, BEARING

BEARING HOUSING

1шт.

55

41100700

WASHER

WASHER

2шт.

56

40697200

SCREW

CYLINDER SCREW

2шт.

57

40639600

SCREW

THREADED SET SCREW

2шт.

58

44128400

BUSHING

BUSH

2шт.

59

44128500

FORK

SWIVEL FORK

1шт.

60

41669800

BEARING, NEEDLE

NEEDLE BUSH

3шт.

61

45409500

SEAL

SEAL RING

1шт.

62

44128600

SCREW

MAGNETIC PLUG

1шт.

63

45236200

SCREW

LOCKING SCREW

1шт.

64

44127100

HUB

HUB

1шт.

65

41100900

WASHER

WASHER

1шт.

66

40694000

SCREW,M12 x 40mm, Cl 8.8

CYLINDER SCREW

1шт.

67

41985900

V-BELT

V-BELT

1шт.

69

20400426

WASHER

WASHER DIA. 13/24X2.5

4шт.

70

40410900

SCREW,Hex, M12 x 30mm, Cl 8.8

HEXAGON SCREW

4шт.

74

20400523

SPACER

WASHER DIA. 21/37X3

4шт.

75

40465400

SCREW

HEXAGON SCREW

4шт.

76

28283103

LARGE PLATE

PLATE, LARGE CLAMP

1шт.

77

40416500

SCREW,Hex, M16 x 40mm, Cl 8.8

HEXAGON SCREW

5шт.

78

20422461

WASHER

5шт.

79

40698400

SCREW

CYLINDER SCREW

2шт.

80

20400438

WASHER

WASHER

2шт.

81

41087900

NUT

LOCK NUT

2шт.

83

41087700

NUT

LOCK NUT

1шт.

84

20400428

WASHER

WASHER

1шт.

85

40429400

SCREW,Hex, M12 x 100mm, Cl 8.8

HEXAGON SCREW

1шт.

86

41409100

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

87

41054300

NUT

CASTLE NUT

1шт.

88

44126900

HOLDER

FLANGE

1шт.

89

44127000

ARM

SWIVEL ARM

1шт.

90

44127200

PULLEY

V-BELT PULLEY

1шт.

91

28280986

SPACER

DOG

4шт.

92

28260362

CLIP

KNIFE CLIP

1шт.

93

40067200

SCREW,M10 x 50mm

SCREW

1шт.

94

20400419

WASHER

WASHER

1шт.

95

49040300

GRAIN LIFTER

EAR LIFTER 3

1шт.

96

38283109

SUPPORT

BRACKET

1шт.

97

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

HEXAGON SCREW

4шт.

98

28281576

LARGE PLATE

PLATE, LARGE LOWER PLATE F.926971

1шт.

99

28281575

BLOCK

SHIM F.926971

1шт.

100

28281574

LARGE PLATE

PLATE, LARGE TOP PLATE F.926971

1шт.

101

40423700

SCREW,Hex, M8 x 40mm, Cl 8.8

HEXAGON SCREW +F.931503

2шт.

102

20400506

SPACER

SPACER F.926971, DIA. 8.5/20X2.5

2шт.

103

41087500

NUT

LOCK NUT +F.931503

2шт.

104

38281572

PROTECTION PLATE

KNIFE GUARD F.926971

1шт.

105

20400506

SPACER

SPACER F.926971, DIA. 8.5/20X2.5

3шт.

106

41087500

NUT

LOCK NUT F.931503

3шт.

107

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW +F.931503

1шт.

108

38281706

PROTECTOR

GUARDING F.926971

1шт.

109

40464900

SCREW

SCREW W. LOCK

2шт.

110

20400506

SPACER

SPACER F.926971, DIA. 8.5/20X2.5

2шт.

111

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW (OM)

1шт.

112

41087400

LOCK NUT

LOCK NUT (OM)

1шт.

113

45483000

O-RING

1шт.
