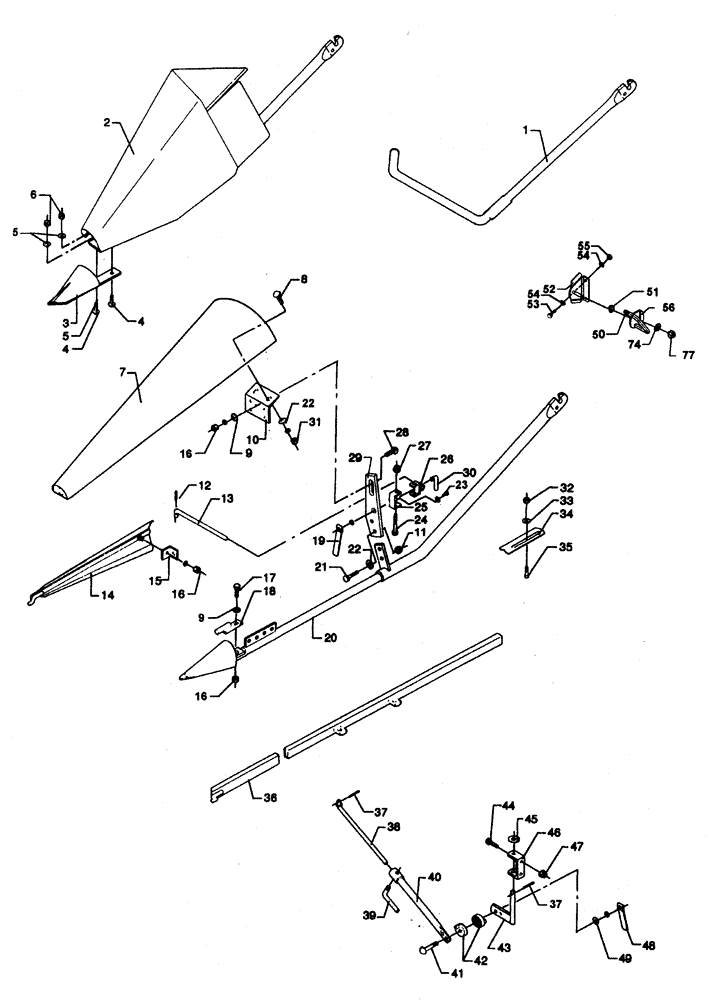

Запчасти Case IH 1030 (1-01[01]) - STRAW DIVIDER (58) - ATTACHMENTS/HEADERS

1

38251600

DIVIDER ASSY.

BOW DIVIDER

1шт.

28251639

DIVIDER ASSY.

TORPEDO DIV.SH.R+L POS.2-6

1шт.

2

38251602

DIVIDER

STRAW DIVIDER L.

1шт.

2

38251603

DIVIDER

STRAW DIVIDER R.

1шт.

3

38260226

POINT

STRAW DIVIDER POINT

2шт.

4

40066800

SCREW,M10 x 30mm

SCREW

4шт.

5

20400471

WASHER

WASHER DIA. 10.5/20X2

4шт.

6

41087600

LOCK NUT

LOCK NUT

4шт.

28251605

DIVIDER ASSY.

TORPEDODIV. LONG R POS.7-31

1шт.

7

28211126

DIVIDER

STRAW DIVIDER

1шт.

8

40063700

SCREW,M8 x 25mm

SCREW

2шт.

9

20400471

WASHER

WASHER DIA. 10.5/20X2

3шт.

10

28230447

PLATE

ADJUSTING PLATE I

1шт.

11

41013500

NUT

COMBI NUT

2шт.

12

41408700

LARGE PIN

PIN, LARGE SPLIT PIN

1шт.

13

28230462

ROD

ADJUSTING ROD

1шт.

14

28230457

DIVIDER

WING

1шт.

15

27200313

ANGLE

ANGLE

1шт.

16

41010800

NUT

HEXAGON NUT

3шт.

17

40408000

SCREW,Hex, M10 x 40mm, Cl 8.8

HEXAGON SCREW

1шт.

18

27200640

STOP

STOP

1шт.

19

27300323

NUT

LOCK NUT

1шт.

20

28251601

SUPPORT TUBE

SUPPORT

1шт.

21

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

HEXAGON SCREW

2шт.

22

20400506

SPACER

SPACER DIA. 8.5/20X2.5

4шт.

28230467

SUPPORT ASSY.

ADJ.MOUNTING,COMPL POS.23-27

1шт.

23

40211200

SET SCREW

SPARE PART SET SCREW

1шт.

24

40424400

SCREW,Hex, M8 x 75mm, Cl 8.8

HEXAGON SCREW

1шт.

25

28230468

SUPPORT

MOUNTINGS 1

1шт.

26

28230471

SUPPORT

MOUNTINGS 2

1шт.

27

41087500

NUT

LOCK NUT

1шт.

28

40066700

SCREW,M10 x 25mm

SCREW

2шт.

29

28250549

SUPPORT

TURNING PIECE

1шт.

30

27200300

PIN

ANGLE PIN

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

2шт.

32

41087700

NUT

LOCK NUT

2шт.

33

20400423

WASHER

WASHER DIA. 13/37X3

2шт.

34

38251588

PLATE

ADJUSTIN PLATE

2шт.

35

40070200

SCREW,M12 x 30mm

SCREW

2шт.

28230487

DIVIDER ASSY.

STRAW DIV.WING OUT. POS.36-49

1шт.

36

28230480

SUPPORT

STRAW DIV.WING OUT.

1шт.

37

41410600

LARGE PIN

PIN, LARGE SPLIT PIN

2шт.

38

28230482

ROD

ADJ. SUPPORT

1шт.

39

27200364

LEVER

FASTENING HANDLE

1шт.

40

28230486

TUBE

TELESCOPIC PIPE

1шт.

41

40021300

SCREW

SCREW 1/2 WG

1шт.

41

40070900

SCREW,M12

SCREW M 12

1шт.

42

28230488

CLUTCH

STAR CLUTCH

2шт.

43

28230473

SUPPORT

SUPPORT

1шт.

44

40407700

SCREW,Hex, M10 x 15mm, Cl 8.8

HEXAGON SCREW

2шт.

45

20400518

SPACER

WASHER

1шт.

46

28230472

SUPPORT

U-FITTINGS

1шт.

47

41087600

LOCK NUT

LOCK NUT

2шт.

48

27300323

NUT

LOCK NUT 1/2 WG

1шт.

48

28284403

LEVER ASSY & KNOB

LOCK NUT M 12

1шт.

49

20400426

WASHER

WASHER DIA. 13/24X2.5

1шт.

50

45750300

FERRULE

1шт.

51

28285165

BUSHING

1шт.

52

28285166

SUPPORT

1шт.

52

28286051

HOLDER

1шт.

53

40407900

SCREW,Hex, M10 x 35mm, Cl 8.8

1шт.

54

20400507

WASHER

1шт.

55

41087600

LOCK NUT

1шт.

56

28285185

ARM

1шт.

56

28285162

ARM

1шт.

74

41112300

BELLEVILLE SPRING

1шт.

77

41087700

NUT

1шт.
