Запчасти Case IH 1030 (5-6[01]) - FIELD TRACKER - HEIGHT CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

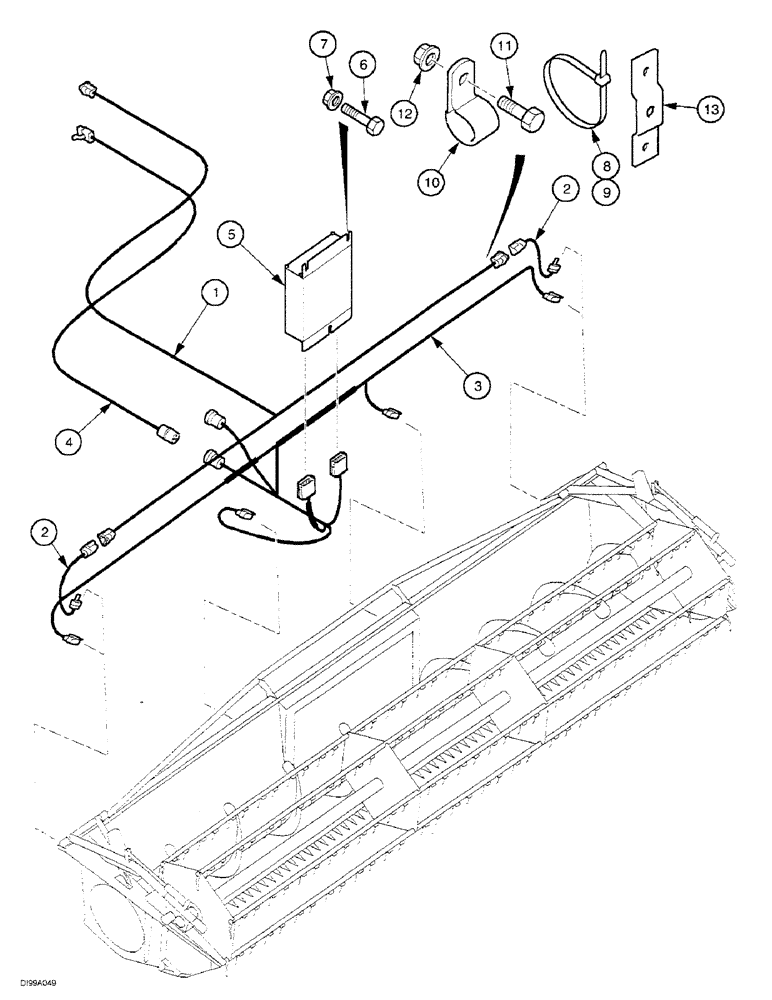

Схема запчастей Case IH 1030 - (5-6[01]) - FIELD TRACKER - HEIGHT CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS
8
3
1
9
11
2
5
4
10
7
12
2
6
13

Артикул

Название

Примечание

Количество

311469A1

DIA KIT, HARVESTER

Attachment, Special Combination Includes : 1 - 13 See Page(s) : 2-11

1шт.

1

100278A1

HARNESS

Harness Assy

1шт.

2

253071A1

WIRE HARNESS

Harness Assy

2шт.

3

311618A1

HARNESS

Harness Assy

1шт.

4

187837A2

HARNESS

Harness Assy

1шт.

5

187352A1

ECU

Module

1шт.

6

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

8

702093C1

CABLE TIE

CABLE STRAP

15шт.

9

306132C1

CABLE TIE,14.5" L

CABLE STRAP Strap, Cable 14 in

5шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

6шт.

11

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

12

825-5148

SERRATED NUT,M8, Flg Ser

5шт.

13

1988724C1

SUPPORT

Support

1шт.

Выбрано товаров: 14
