Запчасти Case IH 1030 (5-5[01]) - FIELD TRACKER - HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS

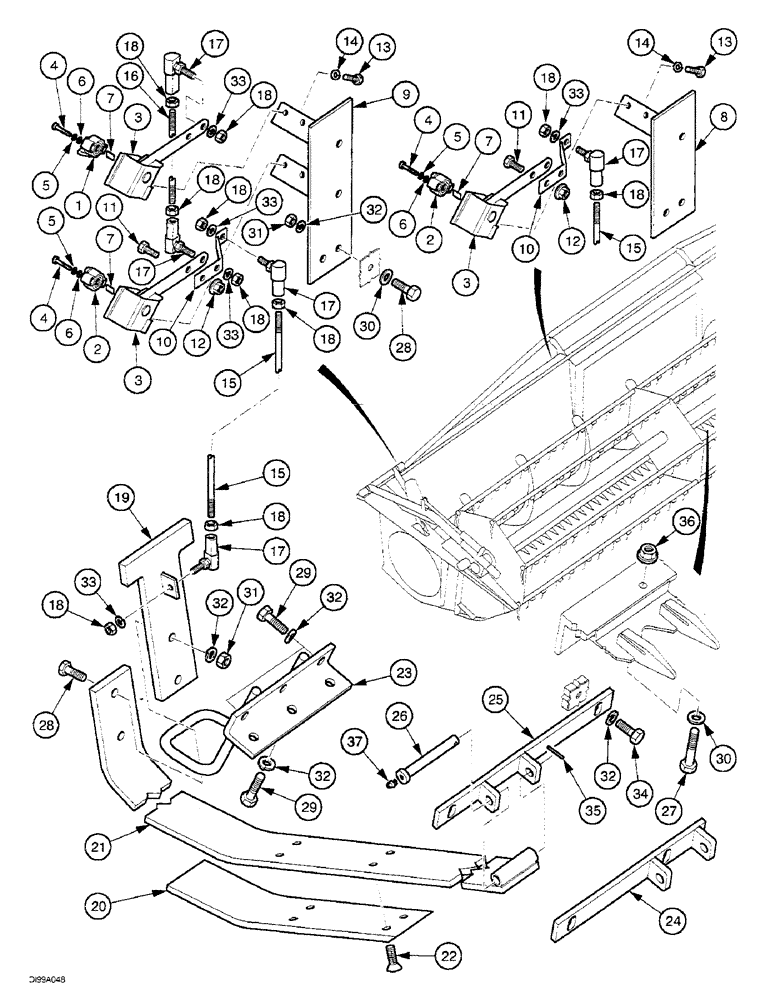

Схема запчастей Case IH 1030 - (5-5[01]) - FIELD TRACKER - HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS
8
32
7
5
32
23
4
18
18
4
18
18
7
17
9
17
33
25
26
33
6
1
31
12
33
34
2
6
6
19
5
29
12
18
11
15
28
13
33
35
24
17
10
16
18
20
2
32
13
32
18
30
17
4
36
7
3
18
32
11
3
28
5
37
18
3
14
15
31
14
22
29
33
18
30
27
10
15
17
21

Артикул

Название

Примечание

Количество

311469A1

DIA KIT, HARVESTER

Attachment, Special Combination Includes : 311467A1, 311468A1 See Page(s) : 2-13

1шт.

311467A1

ATTACHMENT

Attachment, Special Field Tracker

1шт.

311468A1

ATTACHMENT

Attachment, Special Height Control

1шт.

1

126771A1

POTENTIOMETER,4000 Ohm

4K Ohm

2шт.

2

187114A1

POTENTIOMETER,1000 Ohm

4шт.

3

325631A1

SUPPORT

Support Assy

6шт.

4

463-31020

SCREW,Hex Wash Hd, #10-24 x 1 1/4"

Screw No 10 x 1-1/4 in

12шт.

5

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

12шт.

6

492-11010

LOCK WASHER,#10

12шт.

7

189728A1

LEVER

Arm

6шт.

8

314561A2

SUPPORT

Support Assy

2шт.

9

314562A1

SUPPORT

Support

2шт.

10

314557A2

ARM

Arm

4шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

13

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

Screw 5/16 x 3/4 in

12шт.

14

492-11031

LOCK WASHER,5/16"

12шт.

15

325627A1

ROD

Rod 1/4 x 15 in

4шт.

16

316663A1

ROD

Rod

2шт.

17

100282A1

BALL JOINT

Ball Joint 1/4 NF

12шт.

18

425-114

NUT,1/4"-28, G5

20шт.

19

297235A1

STOP

Stop Assy

4шт.

20

297226A2

WEAR PLATE

Bar

4шт.

21

126794A2

LARGE PLATE

PLATE, LARGE Sensor Assy

4шт.

22

348142A1

HEX SOC SCREW

Screw M10 x 16

16шт.

23

297234A1

RETAINER

Retainer

4шт.

24

297774A2

SUPPORT

Support Assy

1шт.

25

297233A2

SUPPORT

Support Assy

3шт.

26

314558A1

PIN,12.7mm OD x 101mm L

Pin

4шт.

27

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

29

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

12шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

9шт.

31

829-1310

NUT,M10, Cl 10

16шт.

32

892-11010

LOCK WASHER,M10

40шт.

33

492-11025

LOCK WASHER,1/4"

8шт.

34

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

20шт.

35

38-3812

PIN,3.17mm OD x 19.05mm L, Coiled

Pin 1/4 x 3/4 in

4шт.

36

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

37

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

Выбрано товаров: 40
