Запчасти Case IH 1030 (5-4[01]) - HARNESS, HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS

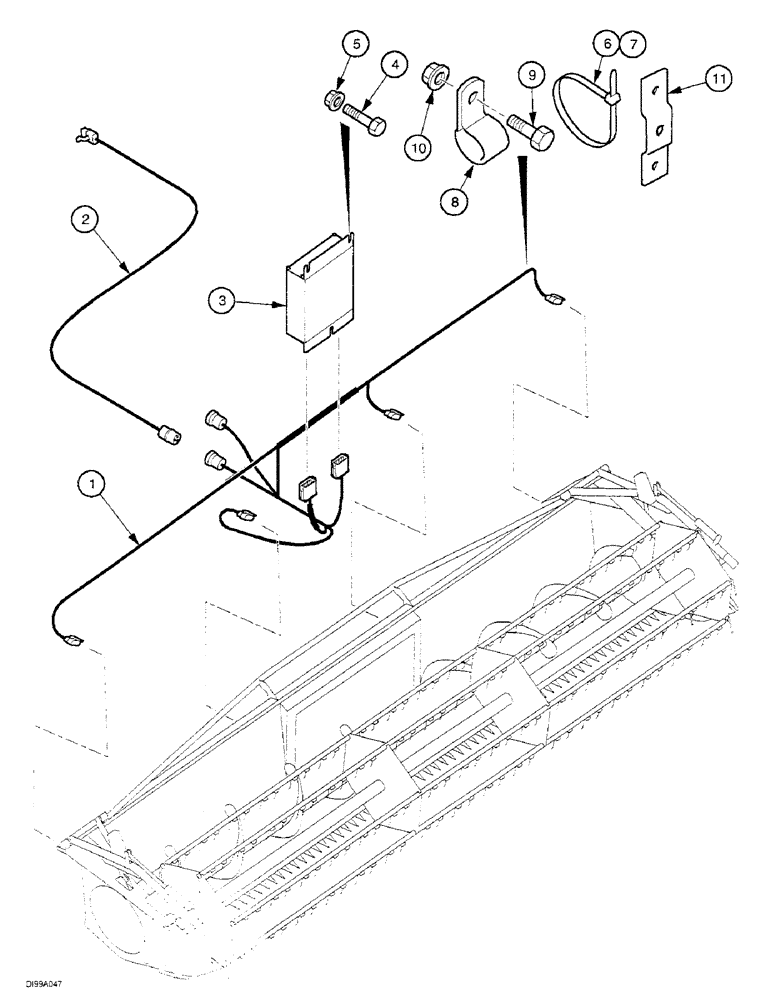

Схема запчастей Case IH 1030 - (5-4[01]) - HARNESS, HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS
2
3
11
10
7
5
4
8
6
9
1

Артикул

Название

Примечание

Количество

311468A1

ATTACHMENT

Attachment, Special Includes : 1 - 11 See Page(s) : 2-7

1шт.

1

311618A1

HARNESS

Harness Assy

1шт.

2

187837A2

HARNESS

Harness Assy

1шт.

3

187352A1

ECU

Module

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

5

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

6

702093C1

CABLE TIE

CABLE STRAP

15шт.

7

306132C1

CABLE TIE,14.5" L

CABLE STRAP Strap, Cable 14 in

5шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

11

1988724C1

SUPPORT

Support

1шт.

Выбрано товаров: 12
