(5-2[01]) - HARNESS, FIELD TRACKER

Запчасти Case IH 1030 (5-2[01]) - HARNESS, FIELD TRACKER (55) - ELECTRICAL SYSTEMS

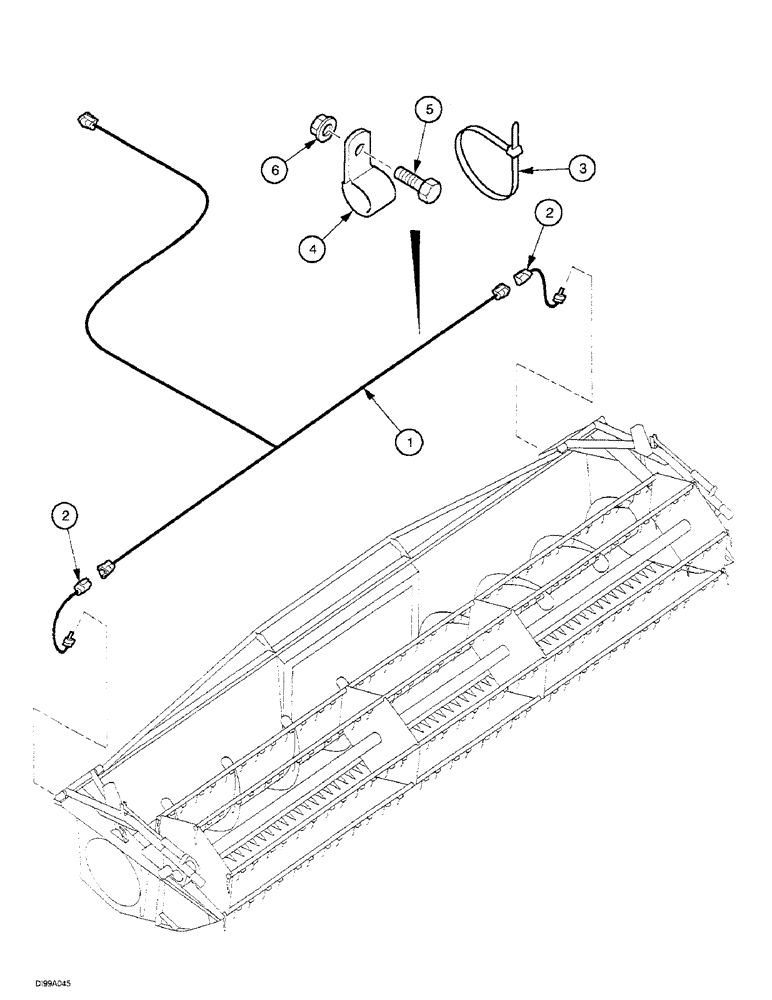

Схема запчастей Case IH 1030 - (5-2[01]) - HARNESS, FIELD TRACKER (55) - ELECTRICAL SYSTEMS
2
5
4
6
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

311467A1

ATTACHMENT

Attachment, Special Includes : 1 - 6 See Page(s) : 2-3

1шт.

1

100278A1

HARNESS

Harness Assy

1шт.

2

253071A1

WIRE HARNESS

Harness Assy

2шт.

3

702093C1

CABLE TIE

CABLE STRAP

15шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

5

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

3шт.
