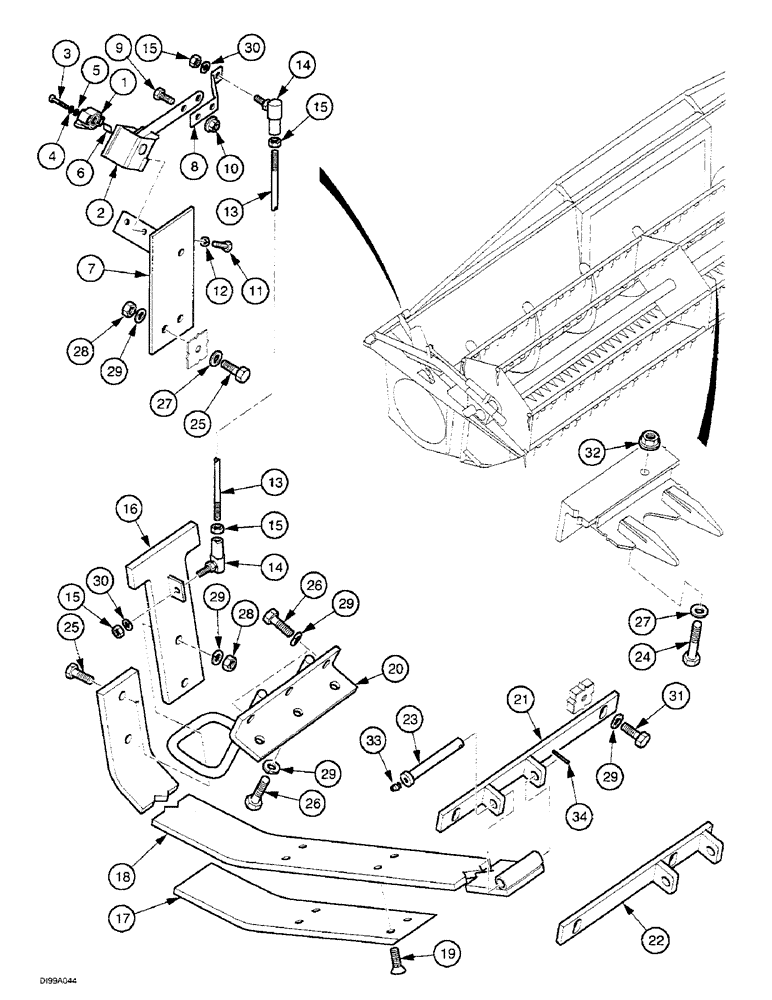

Запчасти Case IH 1030 (5-1[01]) - FIELD TRACKER (55) - ELECTRICAL SYSTEMS

311467A1

ATTACHMENT

Attachment, Special Includes : 1 - 34 See Page(s) : 2-5

1шт.

1

126771A1

POTENTIOMETER,4000 Ohm

4K Ohm

2шт.

2

325631A1

SUPPORT

Support Assy

1шт.

3

463-31020

SCREW,Hex Wash Hd, #10-24 x 1 1/4"

Screw No 10 x 1-1/4 in

4шт.

4

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

4шт.

5

492-11010

LOCK WASHER,#10

4шт.

6

189728A1

LEVER

Arm

2шт.

7

314561A2

SUPPORT

Support Assy

2шт.

8

314557A2

ARM

Arm

2шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

11

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

Screw 5/16 x 3/4 in

4шт.

12

492-11031

LOCK WASHER,5/16"

10шт.

13

325627A1

ROD

Rod 1/4 x 15 in

2шт.

14

100282A1

BALL JOINT

Ball Joint 1/4 NF

4шт.

15

425-114

NUT,1/4"-28, G5

8шт.

16

297235A1

STOP

Stop Assy

2шт.

17

297226A2

WEAR PLATE

Bar

2шт.

18

126794A2

LARGE PLATE

PLATE, LARGE Sensor Assy

2шт.

19

348142A1

HEX SOC SCREW

Screw M10 x 16

8шт.

20

297234A1

RETAINER

Retainer

2шт.

21

297233A2

SUPPORT

Support Assy

1шт.

22

297774A2

SUPPORT

Support Assy

1шт.

23

314558A1

PIN,12.7mm OD x 101mm L

Pin

2шт.

24

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

25

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

26

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

6шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

5шт.

28

829-1310

NUT,M10, Cl 10

8шт.

29

892-11010

LOCK WASHER,M10

18шт.

30

492-11025

LOCK WASHER,1/4"

4шт.

31

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

10шт.

32

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

34

38-3812

PIN,3.17mm OD x 19.05mm L, Coiled

Pin 1/4 x 3/4 in

2шт.
