Запчасти Case IH 1030 (1-10[01]) - ELECTRIC VERTICAL KNIFE (55) - ELECTRICAL SYSTEMS

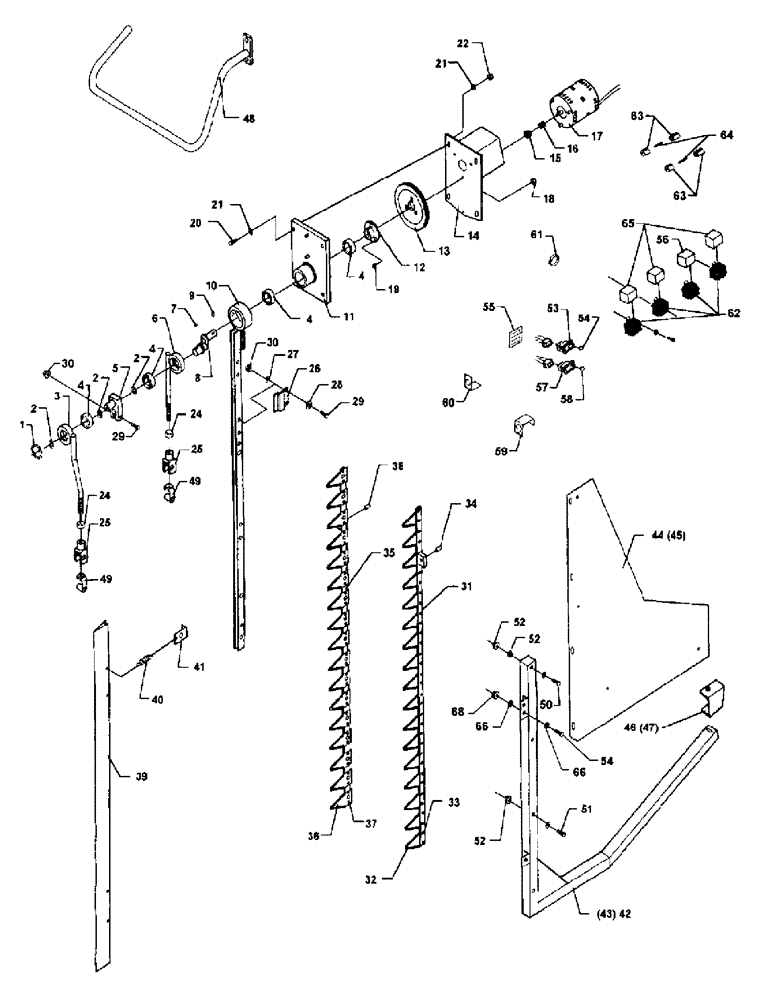

Схема запчастей Case IH 1030 - (1-10[01]) - ELECTRIC VERTICAL KNIFE (55) - ELECTRICAL SYSTEMS
52
24
25
55
19
10
31
40
8
47
45
36
66
44
8
36
22
11
52
17
20
18
12
34
57
28
13
29
37
43
6
2
68
42
35
41
54
56
4
16
29
15
4
53
65
32
1
7
21
54
66
24
63
4
49
61
21
46
2
4
39
59
26
50
30
30
49
33
80
58
3
5
14
63
52
2
27
52
64
25
51
48

Артикул

Название

Примечание

Количество

1

42501800

CIRCLIP

CIRCLIP

1шт.

2

20400441

WASHER

WASHER

1шт.

3

28284074

ASSEMBLING ROD

SPARE PART CONNECTING

4шт.

4

41616800

BALL BEARING

BALL BEARING

1шт.

5

28284087

SUPPORT

SPARE PART CRANK

1шт.

6

28284072

ASSEMBLING ROD

SPARE PART CONNECTING ROD

1шт.

7

43100900

SPLIT PIN/SAFETY PIN

SPARE PART KEY

1шт.

8

28284084

SUPPORT

SPARE PART CRANK

1шт.

9

42612000

SPLIT PIN/SAFETY PIN

TIGHTENING

1шт.

10

28284079

SUPPORT

VERTICAL KNIFE

1шт.

11

28284093

SUPPORT

SPARE PART BEARING HOUSING

1шт.

12

28284069

HUB

SPARE PART HUB

1шт.

13

28284081

PULLEY

GEAR WHEEL

1шт.

14

28284090

SUPPORT

SPARE PART ENGINE BRACKET

1шт.

15

28284111

WASHER

SPARE PART NUT

1шт.

16

28284080

WASHER

PIMION

1шт.

17

45070083

MOTOR, ELECTRIC

ELECTRO-MOTOR

1шт.

18

40688000

SCREW

SPARE PART SCREW

3шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

20

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

HEXAGON SCREW

4шт.

21

20400471

WASHER

WASHER DIA.10.5/20X2

8шт.

22

41010800

NUT

HEXAGON NUT

4шт.

24

100016

NUT,M10 x 1.5, Cl 8

2шт.

25

45905200

CLEVIS

SPARE PART FORK HEAD

2шт.

26

28284094

SHIN

KNIFE CLIP

8шт.

27

20400500

WASHER

SPARE PART WASHER

1шт.

28

20400409

WASHER

32шт.

29

40423700

SCREW,Hex, M8 x 40mm, Cl 8.8

HEXAGON SCREW

16шт.

30

41087500

NUT

LOCK NUT

16шт.

28284060

BLADE

KNIFE I POS.31-34

1шт.

31

28284105

BLADE

KNIFE BACK I

1шт.

32

44104100

KNIFE

KNIFE BLAD

17шт.

33

41314900

RIVET

COUNTERSUNK RIVET

34шт.

34

43360800

BUSHING

BRONZE LINING

1шт.

28284061

BLADE

SPARE PART KNIFE II POS.35-38

1шт.

35

28284104

BLADE

KNIFE BACK II

1шт.

36

44104100

KNIFE

KNIFE BLAD

17шт.

37

41314900

RIVET

COUNTERSUNK RIVET

34шт.

38

43360800

BUSHING

BRONZE LINING

1шт.

39

28284124

LARGE PLATE

SPARE PART PROTECTION GUARD

1шт.

40

26500317

SPRING

SPRING

2шт.

41

28284125

SHIN

SPARE PART RETAINER

2шт.

42

28284100

SUPPORT

BRACKET RH (AZ)

1шт.

43

28284099

SUPPORT

BRACKET LH (AY)

1шт.

44

28284140

LARGE PLATE

PLATE, LARGE GUARD RH (AZ)

2шт.

45

28284139

LARGE PLATE

PLATE, LARGE GUARD LH (AY)

1шт.

46

28284136

SUPPORT

BRACKET RH (AZ)

1шт.

47

28284137

SUPPORT

BRACKET LH (AY)

1шт.

48

28284107

PROTECTOR

SPARE PART DEFLECTOR

1шт.

50

40422400

BOLT

SPARE PART HEXAGON SCREW

1шт.

51

40422300

SCREW,Hex, M6 x 55mm, Cl 8.8

HEXAGON SCREW

1шт.

52

41013400

NUT

COMBI NUT

1шт.

53

45065000

SWITCH

SWITCH (AZ)

1шт.

54

28781207

SYMBOLS

SYMBOL SYMBOL PLATE (AZ)

1шт.

55

28284371

LARGE PLATE

PLATE, LARGE CONTACT PLATE (AZ)

1шт.

56

45060021

RELAY

AUXILIARY RELAY (AY)

1шт.

57

45065000

SWITCH

SWITCH (AY)

1шт.

58

28781207

SYMBOLS

SYMBOL SYMBOL PLATE (AY)

1шт.

59

28284370

RETAINER

RETAINER (AZ)

1шт.

60

38780381

ANGLE

RETAINER (AZ)

2шт.

60

38780381

ANGLE

RETAINER (AY)

1шт.

61

45728200

CIRCLIP

PIPE CLAMP

1шт.

62

45087800

SOCKET/RECEPTACLE

SOCKET (AZ)

3шт.

63

45025700

BOX, FUSE

FUSE RETAINER (AZ)

1шт.

63

45025700

BOX, FUSE

FUSE RETAINER (AY)

1шт.

64

45010086

FUSE

FUSE 40 AMP (AZ)

1шт.

64

45010086

FUSE

FUSE 40 AMP (AY)

1шт.

65

45060021

RELAY

AUXILIARY RELAY (AZ)

3шт.

66

20400419

WASHER

WASHER

2шт.

67

40425800

SCREW,Hex, M10 x 40mm, Cl 8.8

HEXAGON SCREW

1шт.

68

41087600

LOCK NUT

LOCK NUT

1шт.

Выбрано товаров: 71
