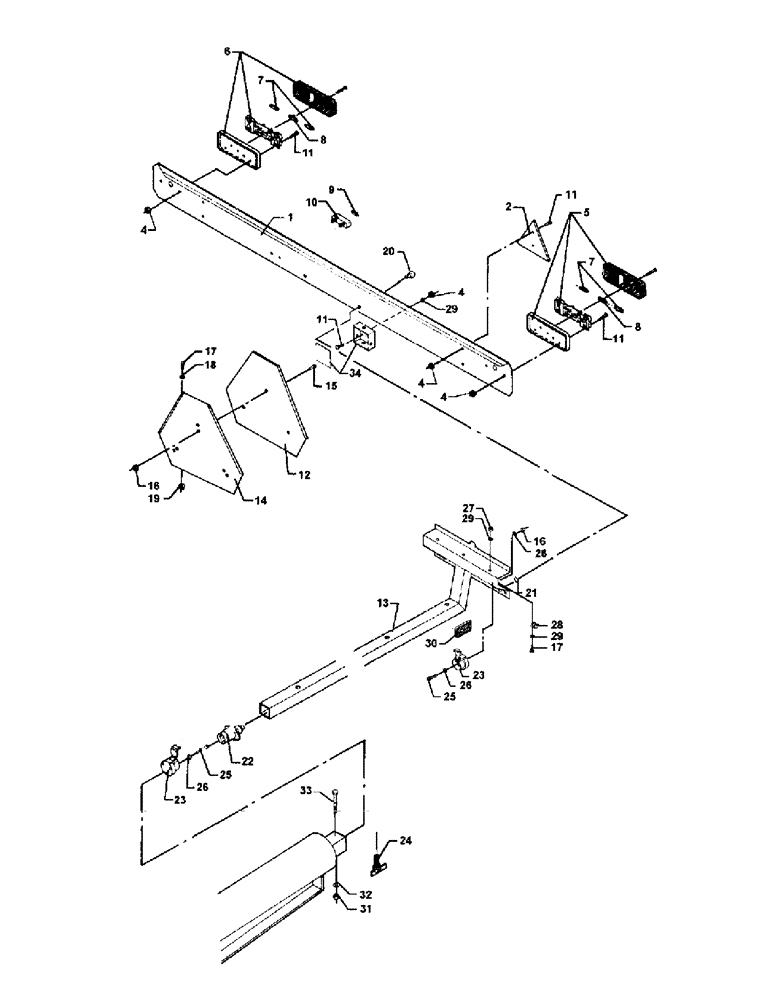

Запчасти Case IH 1030 (1-08[01]) - LIGHTING BRACKET (55) - ELECTRICAL SYSTEMS

28283719

BAR

LIGHTEN. BRACKET CP

1шт.

1

28283662

BAR

LIGHTENING BRACKET

1шт.

2

45083900

REFLECTOR

REFLEX

2шт.

4

41010500

NUT

HEXAGON NUT

10шт.

5

45077100

LIGHT ASSY.

REAR LAMP, LEFT

1шт.

6

45077300

LIGHT ASSY.

REAR LAMP,RIGHT

1шт.

7

45080600

BULB

BULB

4шт.

8

45080700

BULB

BULB

2шт.

9

45080900

BULB

BULB

2шт.

10

45085500

LAMP

NUMBER PLATE LANTER

2шт.

11

40352300

SCREW,M5 x 16mm, Cl 4.8

SCREW

10шт.

12

45084500

REFLECTOR

REFLEX

1шт.

13

28283959

SUPPORT

1шт.

14

28251559

RETAINER

RETAINER F. REFLEX

1шт.

15

40400300

SCREW,Hex, M4 x 16mm, Cl 8.8

HEXAGON SCREW

3шт.

16

41010400

NUT

HEXAGON NUT

3шт.

17

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

HEXAGON SCREW

3шт.

18

20400453

WASHER

WASHER DIA. 6.4/12X1.6

3шт.

19

41013400

NUT

COMBI NUT

3шт.

20

43427500

PIN

LOCK PIN

2шт.

21

42555500

CIRCLIP

CIRCLIP

2шт.

22

45005300

SOCKET/RECEPTACLE

SOCKET

1шт.

23

45005200

SOCKET/RECEPTACLE

SOCKET

2шт.

24

28283634

SCREW

WING SCREW T.925851

1шт.

25

40351600

SCREW,M4 x 35mm, Cl 4.8

SCREW

3шт.

26

20400400

WASHER

WASHER DIA. 4.3/9X0.8

3шт.

27

41087400

LOCK NUT

LOCK NUT

1шт.

28

45729400

CINTRE

SPARE PART PIPE CLAMP

1шт.

29

20400404

WASHER

WASHER

4шт.

30

45084600

REFLECTOR

REFLEX

2шт.

31

41087700

NUT

LOCK NUT F.925852

1шт.

32

20400426

WASHER

WASHER F.925852, DIA. 13/24X2.5

1шт.

33

40429200

SCREW,Hex, M12 x 90mm, Cl 8.8

HEXAGON SCREW F.925852

1шт.

34

28780741

BOX

FRAME BOX RH

1шт.
