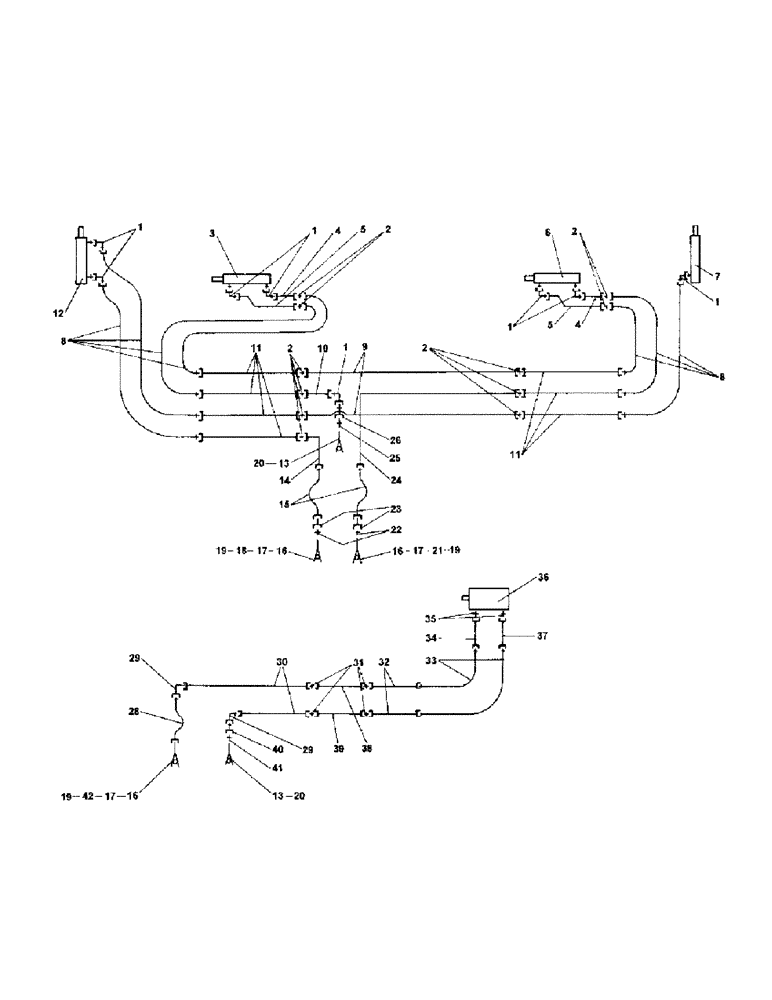

Запчасти Case IH 1030 (3-2[01]) - HYDRAULICS TABLE (35) - HYDRAULIC SYSTEMS

1

D45263900

CONNECTION

CONNECTOR

8шт.

2

45254000

CONNECTOR, ELEC

CONNECTOR CONNECTOR

11шт.

3

45100028

JACK BODY

REEL CYLINDER DIA.25/16

1шт.

4

28281207

TUBE ASSY.

HYDRAULIC PIPE DIA. 8

2шт.

5

28281208

TUBE ASSY.

HYDRAULIC PIPE DIA. 8

2шт.

6

45100027

JACK BODY

REEL CYLINDER DIA.32/20

1шт.

7

45100067

CYLINDER

REEL CYLINDER DIA.25

1шт.

8

45130017

HOSE

HYDRAULIC HOSE

7шт.

9

28283458

PIPE

HYDR. PIPE DIA. 8

2шт.

10

28283457

PIPE

HYDR. PIPE DIA. 8

1шт.

11

28283439

PIPE

HYDR. PIPE (T7), DIA. 8

7шт.

11

28283438

PIPE

HYDR. PIPE (S4), DIA. 8

7шт.

11

28283437

PIPE

HYDR. PIPE (T8), DIA. 8

7шт.

11

28283436

PIPE

HYDR. PIPE (F3), DIA. 8

7шт.

12

45100066

HYDRAULIC CYLINDER

REEL CYLINDER DIA.35

1шт.

13

45147400

FAST HITCH

HYDR. COUPLING

2шт.

14

28283459

PIPE

HYDR. PIPE DIA.8

1шт.

15

45130014

HOSE

HYDRAULIC HOSE

2шт.

16

45135300

COUPLING, BREAK AWAY

HYDR COUPLING INT

3шт.

17

45462200

O-RING

SEAL RING

3шт.

18

28281320

WASHER

WASHER BLACK

1шт.

19

45134600

CAP ASSY.

PROTECTION CAP

3шт.

20

45134500

CAP ASSY.

PROTECTION CAP

2шт.

21

28281392

WASHER

WASHER RED

1шт.

22

D45250700

CONNECTOR, ELEC

CONNECTOR CONNECTOR

2шт.

23

D45272100

CONNECTOR, ELEC

CONNECTOR CONNECTOR

2шт.

24

28283456

PIPE

HYDR. PIPE DIA. 8

1шт.

25

D45203500

CONNECTOR, ELEC

CONNECTOR CONNECTOR

1шт.

26

D45272300

PIPE FITTING

CONNECTOR

1шт.

28

45132400

HOSE

HIGH PRESSURE HOSE

1шт.

29

D45264100

CONNECTOR, ELEC

CONNECTOR CONNECTOR

2шт.

30

28283460

PIPE

HYDR. PIPE DIA. 15

2шт.

31

D45254900

CONNECTOR, ELEC

CONNECTOR CONNECTOR (S8)

2шт.

31

D45254900

CONNECTOR, ELEC

CONNECTOR CONNECTOR (E0)

4шт.

32

28283463

PIPE

HYDR. PIPE (T7), DIA. 15

2шт.

32

28283464

PIPE

HYDR. PIPE (S4), DIA. 15

2шт.

32

28283473

PIPE

HYDR. PIPE (T8), DIA. 15

2шт.

32

28283474

PIPE

HYDR. PIPE (F3), DIA. 15

2шт.

32

28283802

PIPE

HYDR. PIPE (F4), DIA. 15

2шт.

33

45130013

HOSE

HYDRAULIC HOSE

2шт.

34

28280677

TUBE ASSY.

HYDRAULIC PIPE DIA. 15

1шт.

35

D45250700

CONNECTOR, ELEC

CONNECTOR CONNECTOR

2шт.

36

45120700

MOTOR, HYDRAULIC

ORBIT MOTOR

1шт.

37

28280676

TUBE ASSY.

HYDRAULIC PIPE DIA. 15

1шт.

38

28283462

PIPE

HYDR. PIPE (LK), DIA. 15

1шт.

38

28283476

PIPE

HYDR. PIPE (S8)

1шт.

39

28283461

PIPE

HYDR. PIPE (LK), DIA. 15

1шт.

39

28283475

PIPE

HYDR. PIPE (S8)

1шт.

40

D45272500

CONNECTOR, ELEC

CONNECTOR CONNECTOR

1шт.

41

45255400

CONNECTOR, ELEC

CONNECTOR CONNECTOR

1шт.

42

28281230

WASHER

WASHER

1шт.
