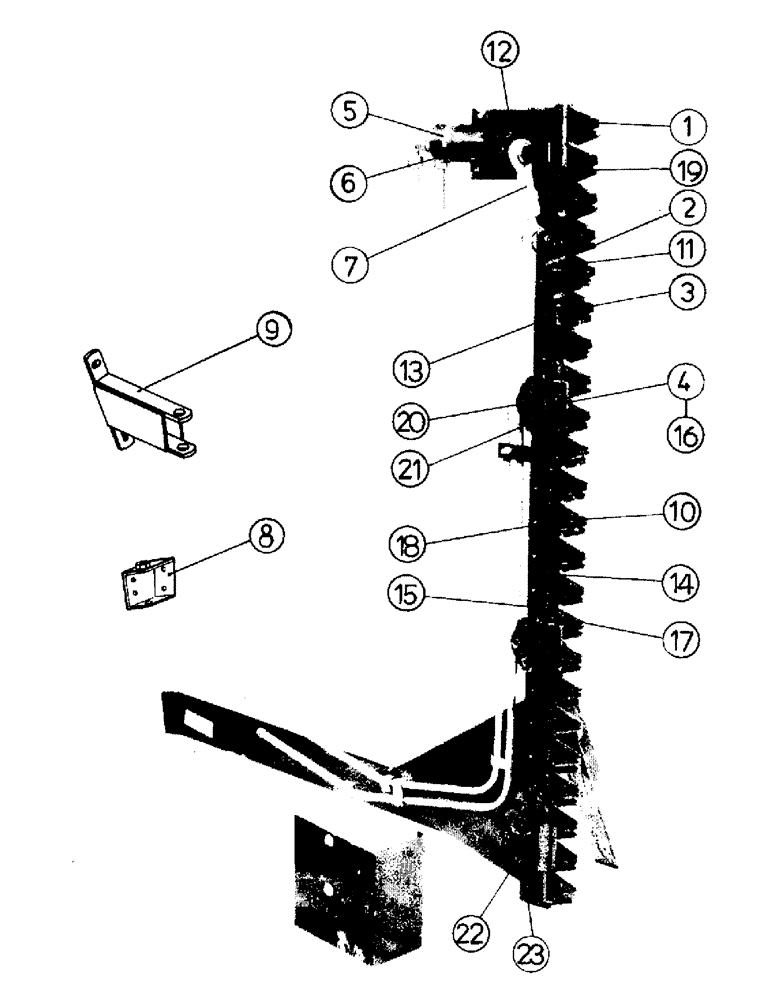

Запчасти Case IH 1030 (1-09[01]) - HYDRAULIC VERTICAL KNIFE (35) - HYDRAULIC SYSTEMS

1

44121600

BLADE

UPPER KNIFE COMPL.

1шт.

2

44121700

KNIFE SECTION

SECTION, KNIFE LOWER KNIFE SECTION

1шт.

3

44121800

KNIFE SECTION

SECTION, KNIFE BLADE F. UPPER KNIF

1шт.

4

44121900

SHIN

KNIFE CLIP

1шт.

5

44122000

MOTOR, HYDRAULIC

ORBIT MOTOR

1шт.

6

44122100

SHAFT

CRANK SHAFT

1шт.

7

44122200

ARM

CONNECTING ROD COMP

1шт.

8

28281516

SUPPORT

BRACKET (F1)

1шт.

9

28280738

BRACKET

BRACKET (F0)

1шт.

10

44122300

KNIFE SECTION

SECTION, KNIFE BLADE F. UPPER KNIF

1шт.

11

44122500

KNIFE HEAD

HEAD, KNIFE KNIFE HEAD

1шт.

12

44122700

SUPPORT

BRACKET RH

1шт.

12

44122800

SUPPORT

BRACKET LH

1шт.

13

41378800

RIVET

RIVET

1шт.

14

41378500

RIVET

RIVET

1шт.

15

41378700

RIVET

RIVET

1шт.

16

44122900

SPACER

SPACER

1шт.

17

44123000

SUPPORT

SUPPORT

1шт.

18

40063700

SCREW,M8 x 25mm

SCREW

1шт.

19

40690900

SCREW,M8 x 50mm, Cl 8.8

CYLINDER SCREW

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

40064300

SCREW

SCREW

1шт.

22

40690500

SCREW,M8 x 30mm, Cl 8.8

CYLINDER SCREW

1шт.

23

44123100

BAR

KNIFE BAR

1шт.
