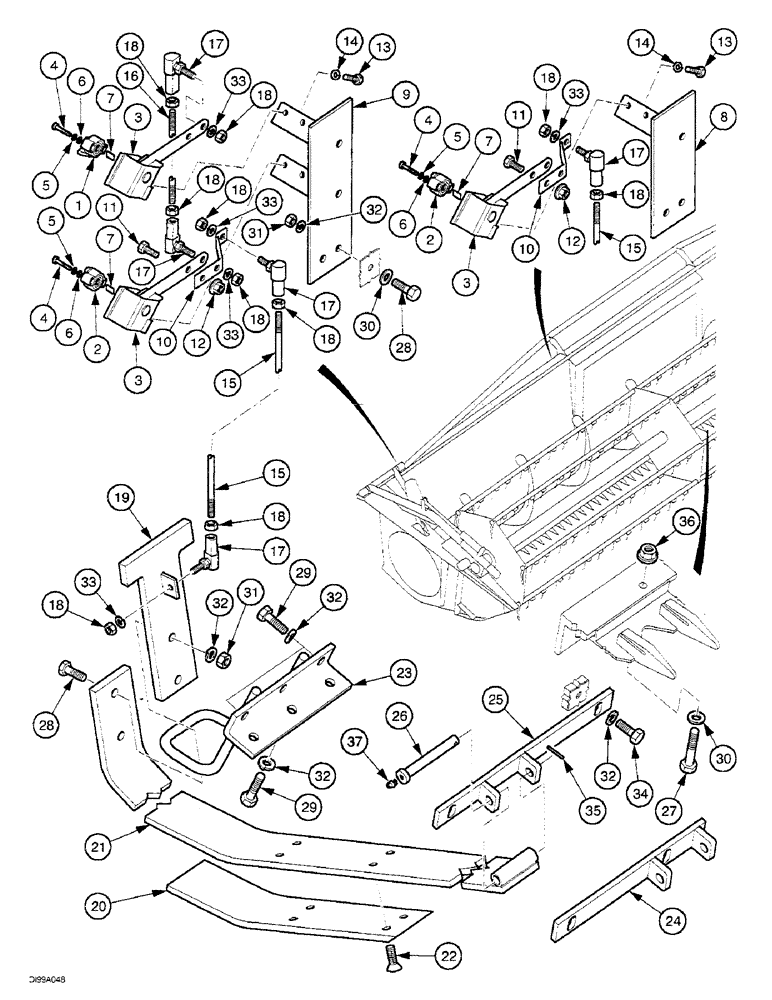

Запчасти Case IH 1030 (5-5) - FIELD TRACKER - HEIGHT CONTROL No Description
№
Артикул
Название
Примечание
Количество
311469A1
DIA KIT, HARVESTER
attachment special combination includes : 311467A1, 311468A1 See Page(s) : 2-13
1шт.
311467A1
ATTACHMENT
TRACKER special field
1шт.
311468A1
ATTACHMENT
CONTROL special height
1шт.
1
126771A1
POTENTIOMETER,4000 Ohm
4K Ohm
2шт.
2
187114A1
POTENTIOMETER,1000 Ohm
4шт.
3
325631A1
SUPPORT
ASSY
6шт.
4
463-31020
SCREW,Hex Wash Hd, #10-24 x 1 1/4"
No 10 x 1-1/4 in
12шт.
5
495-11022
WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk
(7/32" x 7/16" x 3/64")
12шт.
6
492-11010
LOCK WASHER,#10
12шт.
7
189728A1
LEVER
ARM
6шт.
8
314561A2
SUPPORT
ASSY
2шт.
9
314562A1
SUPPORT
2шт.
10
314557A2
ARM
4шт.
13
281-24812
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"
5/16 x 3/4 in
12шт.
15
325627A1
ROD
1/4 x 15 in
4шт.
16
316663A1
ROD
2шт.
17
100282A1
BALL JOINT
1/4 NF
12шт.
18
425-114
NUT,1/4"-28, G5
20шт.
19
297235A1
STOP
ASSY
4шт.
20
297226A2
WEAR PLATE
bar
4шт.
21
126794A2
LARGE PLATE
PLATE, LARGE SENSOR ASSY
4шт.
22
348142A1
HEX SOC SCREW
M10 x 16
16шт.
23
297234A1
RETAINER
4шт.
24
297774A2
SUPPORT
ASSY
1шт.
25
297233A2
SUPPORT
ASSY
3шт.
26
314558A1
PIN,12.7mm OD x 101mm L
4шт.
27
614-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd
1шт.
28
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
16шт.
29
781-24820
SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm
12шт.
30
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
9шт.
31
829-1310
NUT,M10, Cl 10
16шт.
32
892-11010
LOCK WASHER,M10
40шт.
33
492-11025
LOCK WASHER,1/4"
8шт.
34
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
20шт.
35
38-3812
PIN,3.17mm OD x 19.05mm L, Coiled
1/4 x 3/4 in
4шт.
36
825-51410
FLANGE NUT,M10, Flg Ser
1шт.
37
219-17
LUBE NIPPLE,3/16" NPTF
4шт.
Выбрано товаров: 40
