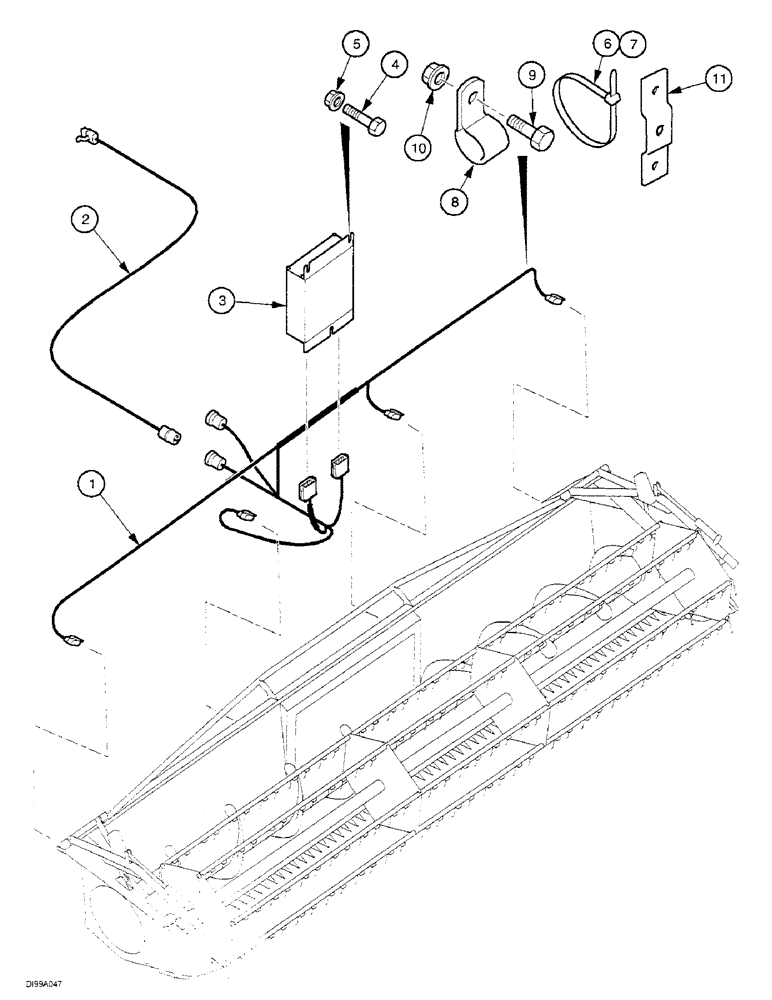

Запчасти Case IH 1030 (5-4) - HARNESS, HEIGHT CONTROL No Description

311468A1

ATTACHMENT

Attachment, Special Includes : 1 - 11 See page : 2-7

1шт.

1

311618A1

HARNESS

ASSY.

1шт.

2

187837A2

HARNESS

ASSY.

1шт.

3

187352A1

ECU

module

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

5

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

6

702093C1

CABLE TIE

CABLE STRAP

15шт.

7

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

5шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

11

1988724C1

SUPPORT

1шт.
