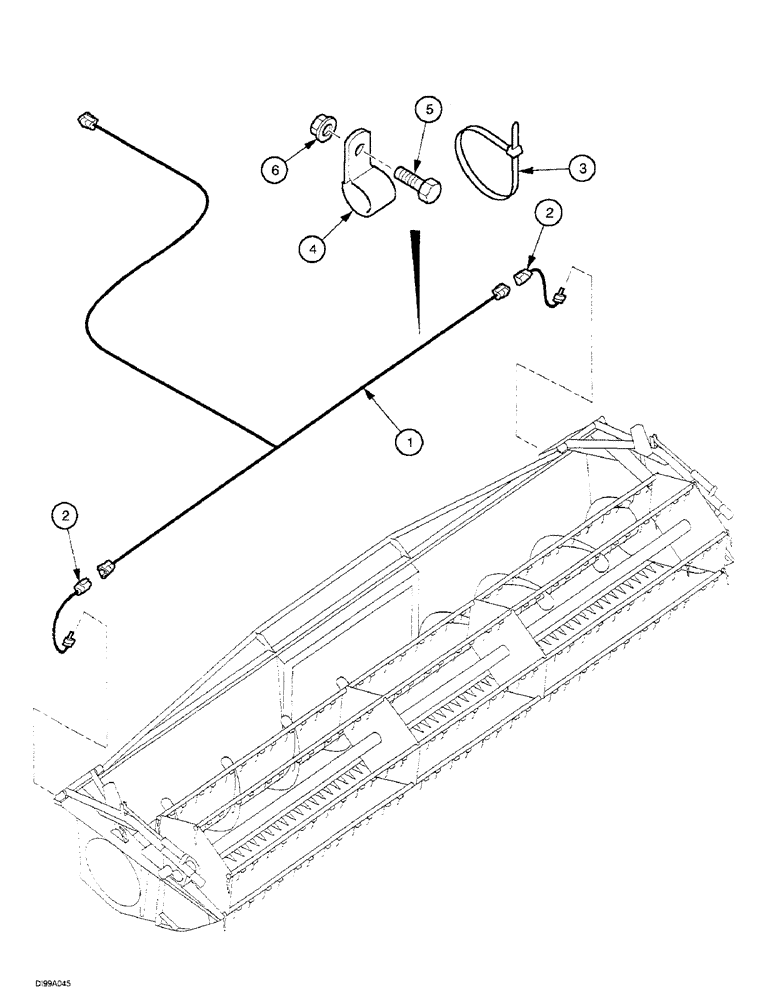

Запчасти Case IH 1030 (5-2) - HARNESS, FIELD TRACKER No Description

311467A1

ATTACHMENT

Special Includes : 1 - 6 See figure(s) : 2-3

1шт.

1

100278A1

HARNESS

ASSY.

1шт.

2

253071A1

WIRE HARNESS

ASSY.

2шт.

3

702093C1

CABLE TIE

CABLE STRAP

15шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

5

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

3шт.
