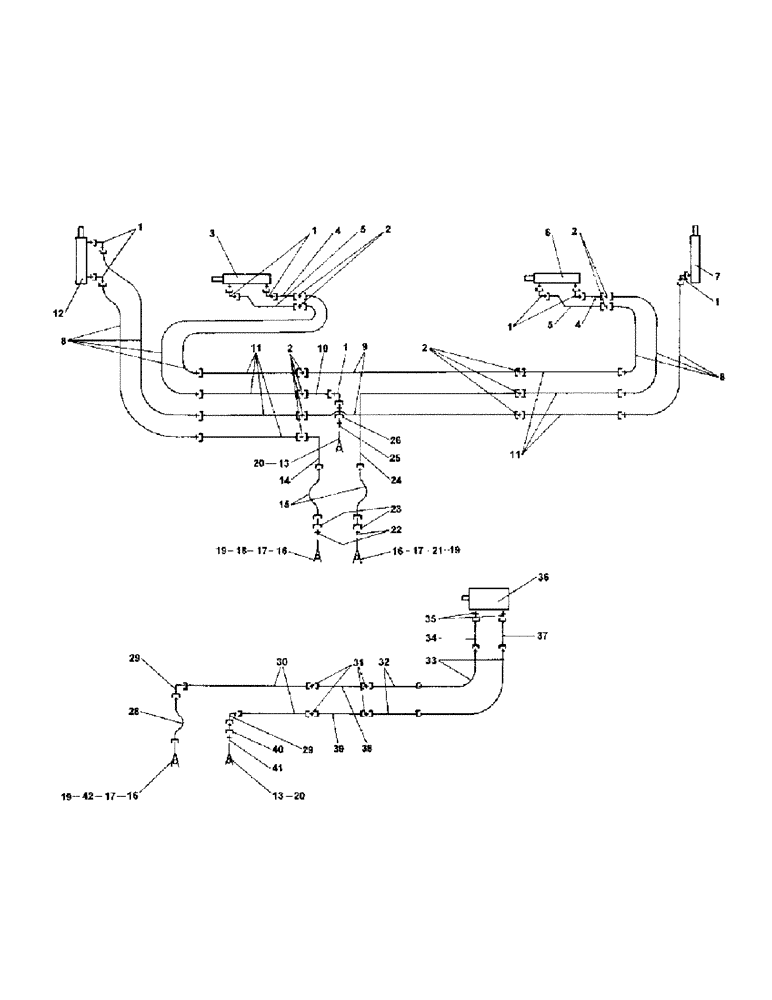

Запчасти Case IH 1030 (3-2) - HYDRAULICS TABLE No Description

1

D45263900

CONNECTION

8шт.

2

45254000

CONNECTOR, ELEC

CONNECTOR

11шт.

3

45100028

JACK BODY

CYLINDER reel, DIA.25/16

1шт.

4

28281207

TUBE ASSY.

hydraulic, DIA. 8

2шт.

5

28281208

TUBE ASSY.

hydraulic, DIA. 8

2шт.

6

45100027

JACK BODY

CYLINDER reel, DIA.32/20

1шт.

7

45100067

CYLINDER

reel, DIA.25

1шт.

8

45130017

HOSE

hydraulic

7шт.

9

28283458

PIPE

HYDR., DIA. 8

2шт.

10

28283457

PIPE

HYDR., DIA. 8

1шт.

11

28283439

PIPE

HYDR., (T7) 14', DIA. 8

7шт.

11

28283438

PIPE

HYDR., (S4) 16', DIA. 8

7шт.

11

28283437

PIPE

HYDR., (T8) 18', DIA. 8

7шт.

11

28283436

PIPE

HYDR., (F3) 20', DIA. 8

7шт.

12

45100066

HYDRAULIC CYLINDER

reel, DIA.35

1шт.

13

45147400

FAST HITCH

HYDR. coupling

2шт.

14

28283459

PIPE

HYDR., DIA.8

1шт.

15

45130014

HOSE

hydraulic

2шт.

16

45135300

COUPLING, BREAK AWAY

HYDR, INT

3шт.

17

45462200

O-RING

3шт.

18

28281320

WASHER

black

1шт.

19

45134600

CAP ASSY.

protection

3шт.

20

45134500

CAP ASSY.

protection

2шт.

21

28281392

WASHER

red

1шт.

22

D45250700

CONNECTOR, ELEC

CONNECTOR

2шт.

23

D45272100

CONNECTOR, ELEC

CONNECTOR

2шт.

24

28283456

PIPE

HYDR., DIA. 8

1шт.

25

D45203500

CONNECTOR, ELEC

CONNECTOR

1шт.

26

D45272300

PIPE FITTING

1шт.

28

45132400

HOSE

high pressure

1шт.

29

D45264100

CONNECTOR, ELEC

CONNECTOR

2шт.

30

28283460

PIPE

HYDR., DIA. 15

2шт.

31

D45254900

CONNECTOR, ELEC

CONNECTOR (S8) 12'

2шт.

31

D45254900

CONNECTOR, ELEC

CONNECTOR (E0) 14'-16'-18' ans 20'

4шт.

32

28283463

PIPE

HYDR. (T7) 14', DIA. 15

2шт.

32

28283464

PIPE

HYDR. (S4) 16', DIA. 15

2шт.

32

28283473

PIPE

HYDR. (T8) 18', DIA. 15

2шт.

32

28283474

PIPE

HYDR. (F3) 20', DIA. 15

2шт.

32

28283802

PIPE

HYDR. (F4) 22', DIA. 15

2шт.

33

45130013

HOSE

HYDR

2шт.

34

28280677

TUBE ASSY.

HYDR. DIA. 15

1шт.

35

D45250700

CONNECTOR, ELEC

CONNECTOR

2шт.

36

45120700

MOTOR, HYDRAULIC

orbit

1шт.

37

28280676

TUBE ASSY.

HYDR. DIA. 15

1шт.

38

28283462

PIPE

HYDR. (LK)14'-16'-18'-20' and 22', DIA. 15

1шт.

38

28283476

PIPE

HYDR. (S8) 12'

1шт.

39

28283461

PIPE

HYDR. (LK) 14'-16'-18'-20' ans 22', DIA. 15

1шт.

39

28283475

PIPE

HYDR. (S8) 12'

1шт.

40

D45272500

CONNECTOR, ELEC

CONNECTOR

1шт.

41

45255400

CONNECTOR, ELEC

CONNECTOR

1шт.

42

28281230

WASHER

1шт.
