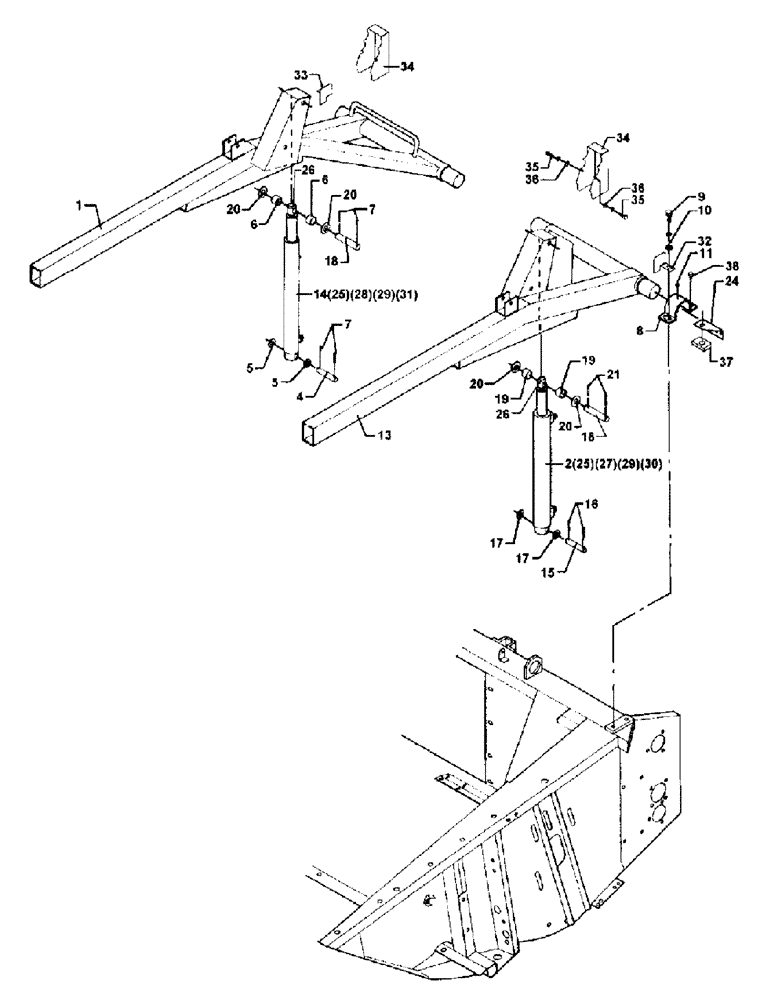

Запчасти Case IH 1030 (2-3) - REEL SUSPENSION AND HYDRAULIC CYLINDERS No Description

1

38283302

FRAME

REEL right, (E4) 12'-14-16-18 and 20'

1шт.

1

38283816

ARM

FRAME reel, right, (F4) 22'

1шт.

2

45100066

HYDRAULIC CYLINDER

REEL DIA.35

1шт.

4

28280236

SPLIT PIN/SAFETY PIN

1шт.

5

20400518

SPACER

WASHER

2шт.

6

28751140

BUSHING

2шт.

7

41408800

LARGE PIN

PIN, LARGE split

4шт.

8

38283300

CLAMP BRACKET

SHELL bearing

2шт.

9

40410800

SCREW,Hex, M12 x 25mm, Cl 8.8

hex

2шт.

10

20400424

WASHER

2шт.

11

43001500

LUBE NIPPLE

2шт.

13

38283301

FRAME

REEL left, (E4) 12'-14-16-18 and 20'

1шт.

13

38283817

ARM

REEL left, (F4) 22'

1шт.

14

45100067

CYLINDER

REEL, DIA. 25

1шт.

15

28280236

SPLIT PIN/SAFETY PIN

1шт.

16

41408800

LARGE PIN

PIN, LARGE split

2шт.

17

20400518

SPACER

WASHER

2шт.

18

28280237

SPLIT PIN/SAFETY PIN

2шт.

19

28751140

BUSHING

2шт.

20

20400520

SPACER

4шт.

21

41408800

LARGE PIN

PIN, LARGE split

4шт.

24

38283251

BRACKET

RETAINER guard

1шт.

25

41042700

NUT

hex, Pacoma

2шт.

26

45100044

HEAD

PISTON, Pacoma

2шт.

27

45100016

PISTON ROD

Pacoma

1шт.

28

45100017

PISTON ROD

Pacoma

1шт.

29

D45252800

CONNECTION

3шт.

30

45100031

GASKET

Pacoma

1шт.

30

45110030

SEAL PACKAGE

PPT

1шт.

30

45110089

SEAL PACKAGE

Serta

1шт.

31

45100032

GASKET KIT

Pacoma

1шт.

31

45110022

SEAL PACKAGE

PPT

1шт.

31

45110090

GASKET

Serta

1шт.

32

38680025

ANGLE

ELBOW, lh, F.926971

1шт.

33

38680024

ANGLE

ELBOW, rh, F.926971

1шт.

34

38281518

PROTECTOR

COVER, F.926971

2шт.

35

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

hex, F.926971

4шт.

36

20400404

WASHER

F.926971

4шт.

37

28283835

SUPPORT

dog, +F.928659

2шт.

38

40410900

SCREW,Hex, M12 x 30mm, Cl 8.8

hex, +F.928659

2шт.
