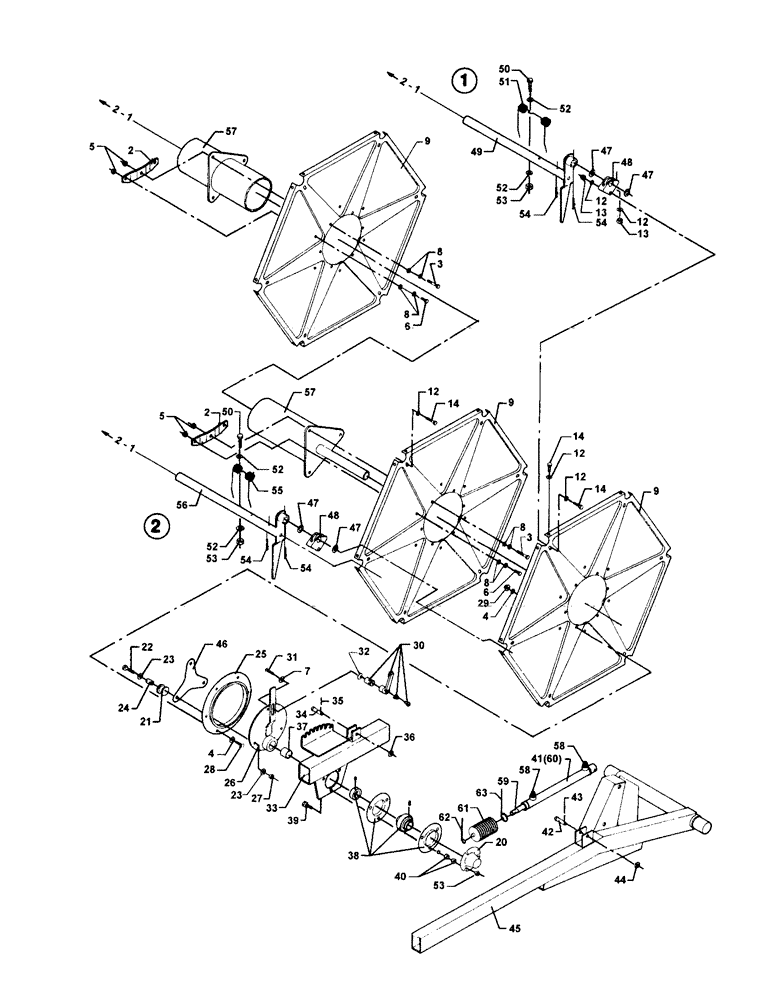

Запчасти Case IH 1030 (2-2) - REEL - LEFT HAND No Description

2

28660051

DETENT

CLAMP

6шт.

3

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hex

1шт.

4

20400506

SPACER

DIA. 8.5/20X2.5

1шт.

5

41087500

NUT

lock, +F.931503

1шт.

6

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

hex

1шт.

7

20400518

SPACER

WASHER

1шт.

8

20400413

WASHER

+F.931503, DIA8.4/16X1.6

1шт.

9

28680240

SHEET ASSY.

PLATE reel, +F.931664

3шт.

12

20400403

WASHER

steel, +F.931869

1шт.

13

41087400

LOCK NUT

lock

1шт.

14

40402700

SCREW,Hex, M6 x 15mm, Cl 8.8

hex, +F.931869

1шт.

20

28761977

COVER

1шт.

21

28660005

ROLLER

guide

3шт.

22

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

hex

3шт.

23

20400416

WASHER

DIA.10.5/30X2.5

3шт.

24

28660143

BUSHING

3шт.

25

28660036

FLANGE

RING guide

1шт.

26

28680097

PLATE ASSY.

eccentric, INC.POS.37

1шт.

27

41087600

LOCK NUT

lock, +F.52265

3шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

+F.931313

6шт.

29

41087500

NUT

lock, +F.931313

6шт.

30

43387500

LEVER

tightening

1шт.

31

40070100

SCREW,M12 x 25mm

1шт.

32

20400426

WASHER

DIA. 13/24X2.5

1шт.

33

28680054

BRACKET

PART bearing, left

1шт.

34

28280382

SPLIT PIN/SAFETY PIN

1шт.

35

41408800

LARGE PIN

PIN, LARGE split

1шт.

36

20400505

SPACER

WASHER

1шт.

37

43338200

BUSHING

lining, DIA. 35/39X3

1шт.

38

41707800

FLANGED BEARING

flange

1шт.

39

40407800

SCREW,Hex, M10 x 30mm, Cl 8.8

hex

3шт.

40

41010800

NUT

hex

3шт.

41

45100028

JACK BODY

REEL cylinder, DIA. 25/16

1шт.

42

28280383

PIN

1шт.

43

41408800

LARGE PIN

PIN, LARGE split

1шт.

44

20400471

WASHER

DIA. 10.5/20X2

1шт.

45

38283301

FRAME

REEL left, (E4) 12'-14-16-18 and 20'

1шт.

45

38283817

ARM

REEL frame, left (F4) 22'

1шт.

46

28680120

PLATE

eccentric

1шт.

47

20400586

WASHER

1шт.

48

28680117

BEARING CARRIER

1шт.

49

28680178

SHAFT

reel, tine, I, (S8) 12'

3шт.

49

28680170

SHAFT

reel, tine, I, (T7) 14'

3шт.

49

28680168

SHAFT

reel, tine, I, (S4) 16'

3шт.

49

28680153

SHAFT

reel, tine, I, lh, (T8) 18'

3шт.

49

28680147

SHAFT

reel, tine, I, le, (F3) 20'

3шт.

49

28680142

SHAFT

reel, tine, I, L., (F4) 22'

3шт.

50

40423900

SCREW,Hex, M8 x 50mm, Cl 8.8

hex

1шт.

51

28680130

TINE,Coiled, 2 Prongs

SPRING reel

1шт.

52

20400506

SPACER

DIA. 8.5/20X2.5

1шт.

53

41087500

NUT

lock

1шт.

54

41411100

PIN

split

1шт.

55

28680131

TINE

SPRING reel

3шт.

56

28680176

SHAFT

reel, tine, II, (S8) 12'

3шт.

56

28680171

SHAFT

reel, tine, II, (T7) 14'

3шт.

56

28680167

SHAFT

reel, tine, II, (S4) 16'

3шт.

56

28680152

SHAFT

reel, tine, II, LH, (T8) 18'

3шт.

56

28680148

SHAFT

reel, tine, II, L, (F3) 20'

3шт.

56

28680140

SHAFT

reel, tine, II, L, (F4) 22'

3шт.

57

28680179

TUBE

reel, 12', (S8), 12'

1шт.

57

28680174

TUBE

reel, 14', (T7) 14'

1шт.

57

28680166

TUBE

reel, 16', (S4) 16'

1шт.

57

28680159

TUBE

reel, 18', (T8) 18'

1шт.

57

28680151

TUBE

reel, 20', (F3) 20'

1шт.

57

28680138

TUBE

reel, 22', (F4) 22'

1шт.

58

45250000

FITTING

Pacoma

2шт.

58

D45252800

CONNECTION

PPT

2шт.

59

45100021

PISTON ROD

Pacoma

1шт.

60

45100080

GASKET KIT

Pacoma

1шт.

60

45110020

SEAL PACKAGE

PPT

1шт.

60

45110084

SEAL PACKAGE

Serta

1шт.

61

28281626

BELLOWS

rubber, +F.926971

1шт.

62

45050038

CLAMP

+F.926971

1шт.

63

45050037

CLAMP

RETAINER, +F.926971, 3,6X203

1шт.
