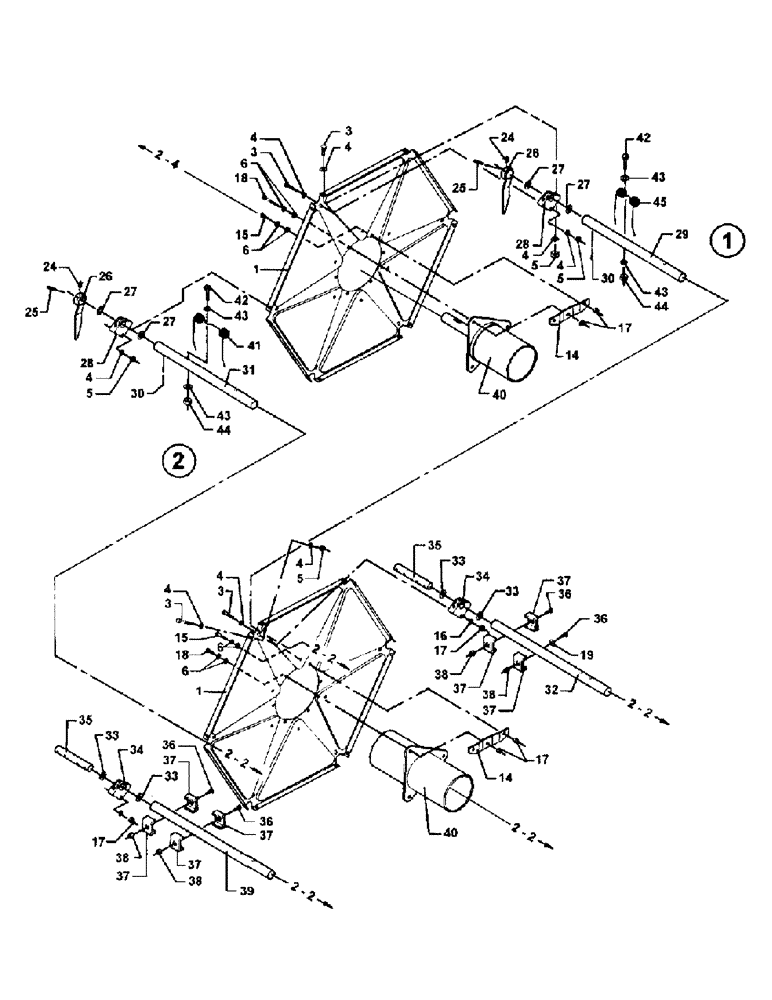

Запчасти Case IH 1030 (2-1) - REEL - RIGHT HAND No Description

1

28680240

SHEET ASSY.

PLATE reel, +F.931664

2шт.

3

40402700

SCREW,Hex, M6 x 15mm, Cl 8.8

hex,+F.931869

1шт.

4

20400403

WASHER

steel, +F.931869

1шт.

5

41087400

LOCK NUT

lock

1шт.

6

20400413

WASHER

+F.931503, DIA. 8.4/16X1.6

1шт.

14

28660051

DETENT

CLAMP

6шт.

15

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

hex

1шт.

16

20400506

SPACER

DIA. 8.5/20X2.5

1шт.

17

41087500

NUT

lock, +F.931503

1шт.

18

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hex

1шт.

19

20400507

WASHER

(G3)

6шт.

24

D40630900

SCREW

PIN threaded, T.924383

6шт.

24

40632000

SCREW,M8 x 10mm

PIN threaded, F.924384

6шт.

25

42614300

SPLIT PIN/SAFETY PIN

tightening

6шт.

26

28680107

CLAW

SPIKE reel, rh

6шт.

27

20400586

WASHER

1шт.

28

28680117

BEARING CARRIER

1шт.

29

28680178

SHAFT

reel, tine, I (S8) 12'

3шт.

29

28680170

SHAFT

reel, tine, I (T7) 14'

3шт.

29

28680168

SHAFT

reel, tine, I (S4) 16'

3шт.

29

28680154

SHAFT

reel, tine, I, rh, (T8) 18'

3шт.

29

28680145

SHAFT

reel, tine, I, (70) 20'-22'

3шт.

30

41411100

PIN

split

1шт.

31

28680176

SHAFT

reel, tine, II, (S8) 12'

3шт.

31

28680171

SHAFT

reel, tine, II, (T7) 14'

3шт.

31

28680167

SHAFT

reel, tine, II, (S4) 16'

3шт.

31

28680156

SHAFT

reel, tine, II, rh, (T8) 18'

3шт.

31

28680141

SHAFT

reel, tine, r, II, (70) 20'-22'

3шт.

32

28680142

SHAFT

reel, tine, I, L., (F4) 22'

3шт.

32

28680147

SHAFT

reel, tine, I, le, (F3) 20'

3шт.

32

28680153

SHAFT

reel, tine, I, lh, (T8) 18'

3шт.

33

20400585

WASHER

(G3) 18'-20' and 22'

12шт.

34

28680132

BEARING CARRIER

(G3) 18'-20' and 22', DIA. 26.3

6шт.

35

28680139

CROSS SHAFT

PIN intermediate, (G3) 18'-20' and 22'

6шт.

36

40426000

SCREW,Hex, M10 x 50mm, Cl 8.8

hex, (G3) 18'-20' and 22'

24шт.

37

28660035

CINTRE

BOW (G3) 18'-20' and 22'

42шт.

38

41087600

LOCK NUT

lock, (G3) 18'-20' and 22'

24шт.

39

28680140

SHAFT

reel, tine, II, L, (F4) 22'

3шт.

39

28680148

SHAFT

reel, tine, II, L, (F3) 20'

3шт.

39

28680152

SHAFT

reel, tine, II, lh, (T8) 18'

3шт.

40

28680179

TUBE

reel, 12', (S8) 12'

1шт.

40

28680174

TUBE

reel, 14', (T7) 14'

1шт.

40

28680166

TUBE

reel, 16', (S4) 16'

1шт.

40

28680159

TUBE

reel, 18', (T8) 18'

1шт.

40

28680151

TUBE

reel, 20', (F3) 20'

1шт.

40

28680138

TUBE

reel, 22', (F4) 22'

1шт.

41

28680130

TINE,Coiled, 2 Prongs

SPRING ring

1шт.

42

40423900

SCREW,Hex, M8 x 50mm, Cl 8.8

hex

1шт.

43

20400506

SPACER

DIA. 8.5/20 x 2.5

1шт.

44

41087500

NUT

lock

1шт.

45

28680131

TINE

SPRING ring

3шт.
